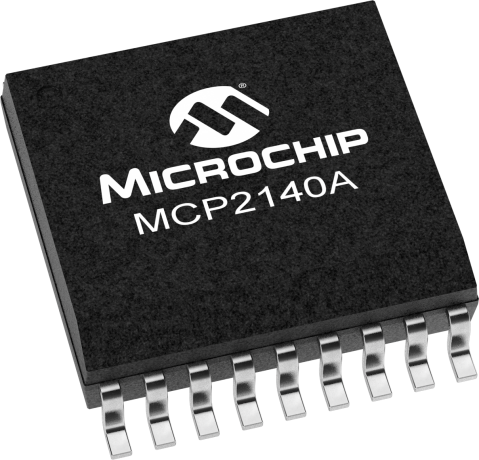

MCP2140A

IrDA® Standard Protocol Stack controller with Fixed 9600 Band Communication Rate

Status: In Production

Features:

  • Automatic sleep mode functionality
  • Communicates with latest Windows Mobile 5.0 devices
  • Power and performance improvements over MCP2140
  • Faster throughput than MCP2140
  • Compatible with PIC® IrDA Standard Stack Library routines
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP2140A is a cost-effective, low pin count (18-pin), easy-to-use device for implementing IrDA standard wireless connectivity. The MCP2140A provides support for the IrDA standard protocol “stack”, bit encoding/decoding and low cost, discrete IR receiver circuitry. The MCP2140A is footprint compatible with the MCP2140.

Additional Features
    • Automatic sleep mode functionality
    • Communicates with latest Windows Mobile 5.0 devices
    • Power and performance improvements over MCP2140
    • Faster throughput than MCP2140
    • Compatible with PIC® IrDA Standard Stack Library routines
Parametrics
Name
Value
Operating Temperature Range (°C)
-40°C to +85°C
Xmit/Rec Formats supported (µS)
1.63
Max. Baud Rate
9600.0
Operating Voltage (V)
2.0 - 5.5
Device Description
Fixed Speed 9600 Baud IrDA Protocol Stack Controller

Documents

Jump to:
×

Data Sheet

IrDA Standard Protocol Stack Controller with Fixed 9600 Baud Communication Rate
10/10/2011
1554KB

Application Notes

Download All
AN243 - Fundamentals of the Infrared Physical Layer
01/19/2004
307KB
AN758 - Using the MCP2150 To Add IrDA® Standard Wireless Connectivity
06/04/2001
363KB
AN858 - Interfacing The MCP215X to a Host Controller
10/25/2002
428KB
AN888 - Programming the Palm OS™ for Embedded IR Applications
01/08/2004
627KB
AN923 - Using the MCP2120 Developer's Board of "IR Sniffing"
04/20/2004
424KB
AN926 - Programming the Pocket PC OS for Embedded IR Applications
02/09/2009
825KB
AN941 - Programming Windows XP® for Embedded IR Applications
06/07/2007
1342KB

Product Line Card

Analog & Interface Product Selector Guide
06/06/2019
4519KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP2140A-I/SS
0.164200
0.343284
20
SSOP
.209in
Matte Tin
e3
MCP2140AT-I/SS
0.164200
0.416250
20
SSOP
.209in
Matte Tin
e3
MCP2140A-I/SO
0.481000
0.857143
18
SOIC
.300in
Matte Tin
e3
MCP2140AT-I/SO
0.481000
1.000909
18
SOIC
.300in
Matte Tin
e3
MCP2140A-I/P
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
