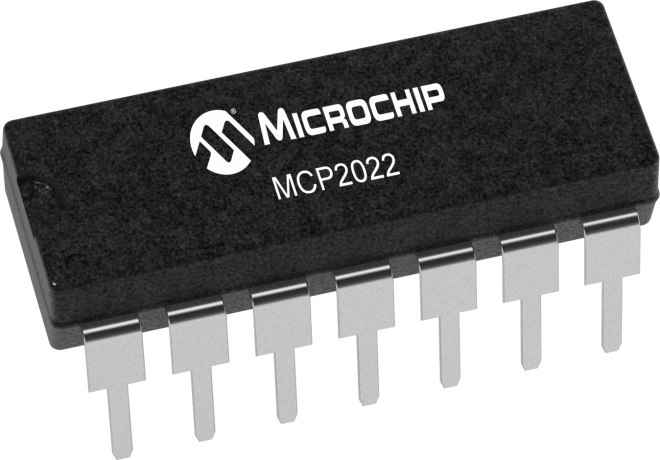

MCP2022

LIN System Basis Chip Including Voltage Regulator and nFault/TXE I/O

Status: Not Recommended for new designs

Features:

  • Physical Layer Transceiver interface to support LIN Bus Specifications Version 1.3, 2.0, 2.1 and SAE J2602
  • LIN Bus pin with internal pull-up resistor and diode protect against ground shorts and loss of ground
  • Wake Up through LIN Bus activity (filtered) or LWAKE pin
  • Thermal shutdown protection
  • Built-in Voltage Regulator with wide operating voltage range up to 30V and regulation range from 5.5V to 18V
  • Load dump protection up to 43V
  • MCP2022-330 with 3.3V regulator
  • MCP2022-500 with 5V regulator
  • Extended temperature range: -40°C to +125°C
  • Automotive Qualification
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The MCP2022 provides a bidirectional, half-duplex communication physical interface to an automotive and industrial Local Interconnect (LIN) and SAE J2602 bus. Operation covers LIN Bus Specification Versions 1.3, 2.0, 2.1 and SAE J2602. The device incorporates a voltage regulator with 5V/50mA or 3.3V/50mA output. The regulator is short-circuit protected and also includes thermal shutdown. The regulator has been specifically designed to operate in the automotive environment and will survive reverse battery conditions, +43V load dump transients and double-battery jump starts. The device has been designed to meet the stringent quiescent current requirements of the automotive industry. The devices' very low emissions, excellent robustness to automotive transients and very high ESD robustness have been confirmed by independent test authorities.

Please consider this device MCP2022A

Additional Features
  • Physical Layer Transceiver interface to support LIN Bus Specifications Version 1.3, 2.0, 2.1 and SAE J2602
  • LIN Bus pin with internal pull-up resistor and diode protect against ground shorts and loss of ground
  • Wake Up through LIN Bus activity (filtered) or LWAKE pin
  • Thermal shutdown protection
  • Built-in Voltage Regulator with wide operating voltage range up to 30V and regulation range from 5.5V to 18V
  • Load dump protection up to 43V
  • RESET Output
  • MCP2022 available in 14-pin PDIP, SOIC and TSSOP packages -MCP2022-330 with 3.3V regulator -MCP2022-500 with 5V regulator
  • Extended temperature range: -40°C to +125°C
  • Automotive Qualification
    • Physical Layer Transceiver interface to support LIN Bus Specifications Version 1.3, 2.0, 2.1 and SAE J2602
    • LIN Bus pin with internal pull-up resistor and diode protect against ground shorts and loss of ground
    • Wake Up through LIN Bus activity (filtered) or LWAKE pin
    • Thermal shutdown protection
    • Built-in Voltage Regulator with wide operating voltage range up to 30V and regulation range from 5.5V to 18V
    • Load dump protection up to 43V
    • MCP2022 available in 8-pin DPIP, SOIC and DFN packages
      • MCP2022-330 with 3.3V regulator
      • MCP2022-500 with 5V regulator
    • Extended temperature range: -40°C to +125°C
    • Automotive Qualification
    Also see:LIN Software Libraries

Parametrics
Name
Value
Description
LIN Transceiver with Vreg
Vreg Output Voltage Options (V)
3.3 - 5.0
Vreg Output Current (mA)
50
Max. Baud Rate (kBaud)
20
Vcc Range (V)
5.5 to 18
Integrated VREG
Yes

Documents

Jump to:
×

Data Sheet

MCP2021/2/1P/2P LIN Transceiver with Voltage Regulator
07/17/2014
2019KB

Application Notes

Download All
AN1009 - LIN 2.0 Compliant Driver Using the PIC18XXXX Family Microcontrollers
04/26/2011
298KB
AN1075 - Migrating Designs from MCP201 to MCP2021-500
03/01/2007
365KB
AN1099 - LIN 2.0 Compliant Driver Using the PIC16FXXX Family Microcontrollers
04/06/2011
404KB
Migrating Designs from MCP202X to MCP202XA - AN1442 - Migrating Designs from MCP202X to MCP202XA
03/15/2013
101KB

Brochures

Analog Solutions for Automotive Applications Design Guide
12/08/2009
284KB
Automotive Recommended Product Selector Guide
09/16/2014
7598KB
Quick Guide to Microchip Development Tools
09/04/2018
10494KB

Product Line Card

Analog & Interface Product Selector Guide
01/03/2019
4427KB

Software

LIN Serial Analyzer Update v2.03
01/15/2009
457KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
LIN Serial Analyzer
LIN Serial Analyzer ( APGDT001 )

The LIN Serial Analyzer development tool enables the user to monitor and communicate to a LIN (Local Interface Network) bus using a Personal Computer (PC). This is a powerful tool which can be used to send messages, monitor the bus traffic, perform errors checks and filter messages amongst many other features, allowing the user to develop and debug the system implementation.

Learn More
Add To Cart
CAN BUS Analyzer Tool
CAN BUS Analyzer Tool ( APGDT002 )

The CAN BUS Analyzer Tool is a simple to use low cost CAN bus monitor which can be used to develop and debug a high speed CAN network. The tool supports CAN 2.0b and ISO11898-2 and a broad range of functions which allow it to be used across various market segments including automotive, industrial, medical and marine. The toolkit comes with all the hardware and software required to connect a CAN...

Learn More
Add To Cart

Similar Devices

Product
Vcc Range
Vreg Output Voltage V
LIN Spec Supported
Price 5K
ATA6612C
5 - 27
5.0 -
2.0, 2.1, 2.2, SAE J2602-2
$2.16
ATA6613C
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.37
ATA6614Q
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.58
ATA6616C
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.14
ATA6617C
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.06
ATA6622C
5 - 27
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$1.08
ATA6623C
5 - 27
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.91
ATA6624C
5 - 27
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$1.08
ATA6625
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
ATA6625C
5 - 27
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.91
ATA6626C
5 - 27
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2

ATA6628
5 - 27
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2

ATA6629
5 - 27
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2

ATA6630
5 - 27
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$1.13
ATA6631
5 - 27
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.96
ATA663201
5 - 28
3.3 -

$0.41
ATA663203
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.41
ATA663211
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.35
ATA663231
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
ATA663232
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
ATA663254
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
ATA663255
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
ATA663331
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
ATA663354
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
ATA663431
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
ATA663454
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
ATA664151
5 - 28
5 -


ATA6662C
5 - 27
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.48
ATA6663
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.48
ATA6664
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.53
ATA6670
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.93
ATSAMHA0E14A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA0E15A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA0E16A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA0G14A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA0G15A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA0G16A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA1E14A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA1E15A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA1E16A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA1G14A
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2
$1.90
ATSAMHA1G14A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA1G15A
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2
$1.93
ATSAMHA1G15A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

ATSAMHA1G16A
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2
$1.99
ATSAMHA1G16A-B
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

MCP2003
6 - 30

1.3, 2.0, 2.1, SAEJ2602
$0.59
MCP2003A
6 - 30

1.3, 2.0, 2.1, SAEJ2602
$0.55
MCP2003B
6 - 30
-
1.3, 2.0, 2.1, SAEJ2602, ISO17987
$0.44
MCP2004
6 - 27

1.3, 2.0, 2.1, SAEJ2602
$0.59
MCP2004A
6 - 30

1.3, 2.0, 2.1, SAEJ2602
$0.55
MCP2021
5.5 - 18
3.3 - 5.0
Rev 1.3, 2.0, 2.1, SAE J2602
$0.84
MCP2021A
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$0.81
MCP2022
5.5 - 18
3.3 - 5.0
Rev 1.3, 2.0, 2.1, SAE J2602
$1.01
MCP2022A
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$0.89
MCP2025
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$0.89
MCP2050
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$1.05

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP2022A-330E/P
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
MCP2022A-500E/P
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
MCP2022-500E/P
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
MCP2022-330E/P
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
MCP2022AT-500E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP2022-330E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP2022T-330E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP2022-500E/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2022T-330E/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2022-330E/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2022P-330E/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2022PT-330E/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2022PT-500E/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2022P-500E/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2022T-500E/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2022AT-330E/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2022A-330E/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2022-500E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP2022A-330E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP2022A-500E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP2022AT-330E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP2022P-330E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP2022P-500E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP2022PT-330E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP2022PT-500E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP2022T-500E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP2022A-500E/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2022AT-500E/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
