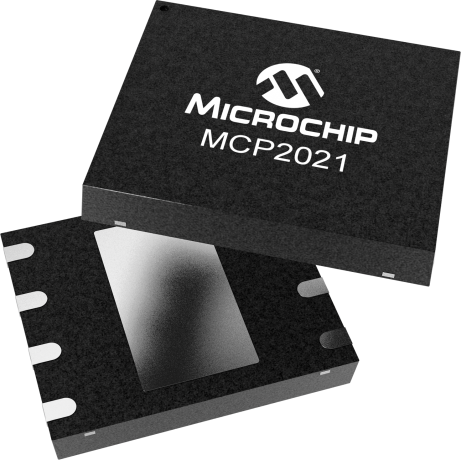

product primary image

MCP2021

LIN System Basis Chip Including Voltage Regulator

Status: Not Recommended for new designs

Features:

  • Physical Layer Transceiver interface to support LIN Bus Specifications Version 1.3, 2.0, 2.1 and SAE J2602
  • LIN Bus pin with internal pull-up resistor and diode protect against ground shorts and loss of ground
  • Wake Up through LIN Bus activity (filtered) or LWAKE pin
  • Thermal shutdown protection
  • Built-in Voltage Regulator with wide operating voltage range up to 30V and regulation range from 5.5V to 18V
  • Load dump protection up to 43V
  • MCP2021-330 with 3.3V regulator
  • MCP2021-500 with 5V regulator
  • Extended temperature range: -40°C to +125°C
  • Automotive Qualification
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The MCP2021 provides a bidirectional, half-duplex communication physical interface to an automotive and industrial Local Interconnect (LIN) and SAE J2602 bus. Operation covers LIN Bus Specification Versions 1.3, 2.0, 2.1 and SAE J2602. The device incorporates a voltage regulator with 5V/50mA or 3.3V/50mA output. The regulator is short-circuit protected and also includes thermal shutdown. The regulator has been specifically designed to operate in the automotive environment and will survive reverse battery conditions, +43V load dump transients and double-battery jump starts. The device has been designed to meet the stringent quiescent current requirements of the automotive industry. The devices' very low emissions, excellent robustness to automotive transients and very high ESD robustness have been confirmed by independent test authorities.

Please consider this device MCP2021A

Additional Features
    • Physical Layer Transceiver interface to support LIN Bus Specifications Version 1.3, 2.0, 2.1 and SAE J2602
    • LIN Bus pin with internal pull-up resistor and diode protect against ground shorts and loss of ground
    • Wake Up through LIN Bus activity (filtered) or LWAKE pin
    • Thermal shutdown protection
    • Built-in Voltage Regulator with wide operating voltage range up to 30V and regulation range from 5.5V to 18V
    • Load dump protection up to 43V
    • MCP2021 available in 8-pin DPIP, SOIC and DFN packages
      • MCP2021-330 with 3.3V regulator
      • MCP2021-500 with 5V regulator
    • Extended temperature range: -40°C to +125°C
    • Automotive Qualification
    Also see:
    LIN Software Libraries

Parametrics
Name
Value
Description
LIN Transceiver with Vreg
Vreg Output Voltage Options (V)
3.3 - 5.0
Vreg Output Current (mA)
50
Max. Baud Rate (kBaud)
20
Vcc Range (V)
5.5 to 18
Integrated VREG
Yes

Documents

Jump to:

Software Libraries/Firmware


Development tools data is currently unavailable.

Similar Devices

Product
Vcc Range
Vreg Output Voltage V
LIN Spec Supported
Price 5K
5 - 27
5.0 -
2.0, 2.1, 2.2, SAE J2602-2
$2.16
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.37
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.58
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.14
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.06
5 - 27
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$1.08
5 - 27
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.91
5 - 27
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$1.08
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
5 - 27
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.91
5 - 27
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2

5 - 27
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2

5 - 27
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2

5 - 27
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$1.13
5 - 27
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.96
5 - 28
3.3 -

$0.41
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.41
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.35
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
5 - 28
5 -


5 - 27
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.48
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.48
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.53
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.93
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2
$1.90
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2
$1.93
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2
$1.99
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

6 - 30

1.3, 2.0, 2.1, SAEJ2602
$0.59
6 - 30

1.3, 2.0, 2.1, SAEJ2602
$0.55
6 - 30
-
1.3, 2.0, 2.1, SAEJ2602, ISO17987
$0.44
6 - 27

1.3, 2.0, 2.1, SAEJ2602
$0.59
6 - 30

1.3, 2.0, 2.1, SAEJ2602
$0.55
5.5 - 18
3.3 - 5.0
Rev 1.3, 2.0, 2.1, SAE J2602
$0.84
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$0.81
5.5 - 18
3.3 - 5.0
Rev 1.3, 2.0, 2.1, SAE J2602
$1.01
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$0.89
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$0.89
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$1.05

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP2021A-330E/MD
0.043200
0.076923
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021PT-330E/MD
0.043200
0.212121
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021PT-330E/MDVAO
0.043200
0.212121
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021PT-500E/MD
0.043200
0.212121
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021T-330E/MD
0.043200
0.212121
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021T-330E/MD-AE2VAO
0.043200
0.212121
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021T-330E/MDVAO
0.043200
0.212121
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021T-500E/MD
0.043200
0.212121
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021T-500E/MD-AE3VAO
0.043200
0.212121
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021T-500E/MDVAO
0.043200
0.212121
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021A-500E/MDVAO
0.043200
0.076923
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021AT-500E/MDVAO
0.043200
0.212121
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021-330E/MD
0.043200
0.076923
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021-330E/MD-AE2VAO
0.043200
0.076923
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021-500E/MD
0.043200
0.076923
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021-500E/MD-AE3VAO
0.043200
0.076923
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021-500E/MDVAO
0.043200
0.076923
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021A-330E/MDVAO
0.043200
0.076923
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021A-500E/MD
0.043200
0.076923
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021AT-330E/MD
0.043200
0.212121
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021AT-330E/MDVAO
0.043200
0.212121
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021AT-500E/MD
0.043200
0.212121
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021P-330E/MD
0.043200
0.076923
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021P-500E/MD
0.043200
0.076923
8
DFN
4x4x0.9mm
Matte Tin
e3
MCP2021-330E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021-330E/SNVAO
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021-500E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021-500E/SNVAO
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021A-330E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021A-330E/SNVAO
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021A-500E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021A-500E/SNVAO
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021AT-330E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021AT-330E/SNTSL
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021AT-330E/SNV02
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021AT-330E/SNVAO
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021AT-500E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021AT-500E/SNTSL
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021AT-500E/SNV01
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021AT-500E/SNV07
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021AT-500E/SNVAO
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021P-500E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021PT-500E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021PT-500E/SN-AE3V03
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021T-330E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021T-330E/SNVAO
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021T-500E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021T-500E/SN-AE3VAO
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021T-500E/SNVAO
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021P-330E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021PT-330E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP2021-330E/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
MCP2021A-500E/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
MCP2021A-330E/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
MCP2021-500E/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
MCP2021-500E/MF
0.076900
0.133333
8
DFN-S
6x5x0.9mm
Matte Tin
e3
MCP2021T-500E/MF
0.076900
0.218182
8
DFN-S
6x5x0.9mm
Matte Tin
e3
MCP2021-330E/MF
0.076900
0.133333
8
DFN-S
6x5x0.9mm
Matte Tin
e3
MCP2021T-330E/MF
0.076900
0.218182
8
DFN-S
6x5x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.

Buy from the Microchip Store

Grid
View
Table
View
Filter:
Apply
Clear
Only show products with samples
Product
Leads
Package Type
Temp Range
Packing Media
5K Pricing
Buy
