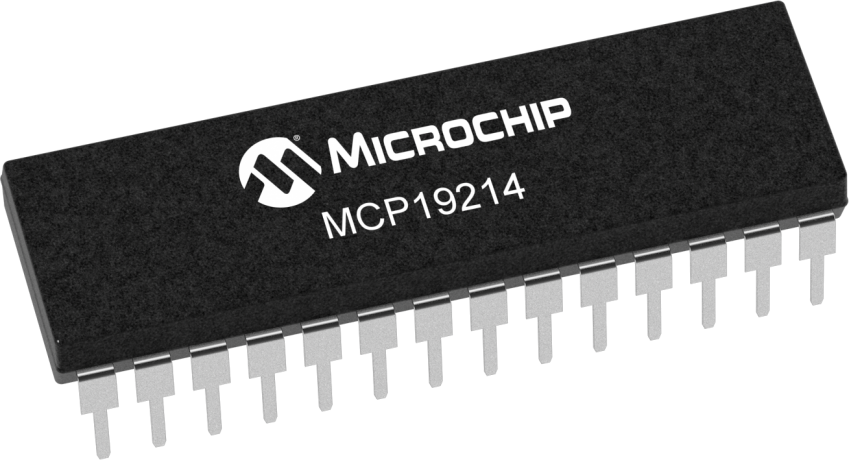

MCP19214

Dual Channel Digitally Enhanced Power Analog Current Controller

Status: In Production

Features:

  • Dual channel, for operating two power outputs from one controller
  • Constant-current or constant-voltage operation, with dynamic switching between those two control modes, and dynamic adjustment of the output level
  • Capable of bi-directional power supply control
  • Wide input operating voltage range: 4.5-42V
  • Analog peak-current mode Pulse-Width Modulation (PWM) control
  • Integrated 8-Bit PIC® Microcontroller
  • Complete configurability: adjustable output voltage, output current, MOSFET deadtime, leading edge blanking time, thermal responses, slope compensation, over-current protection, over and under voltage lockout levels
  • Available fixed frequency operation from 31 kHz to 2 MHz
  • I2C communication interface
  • 8 GPIO
  • Integrated low-side MOSFET drivers
  • Integrated high voltage linear regulator, with external output
  • Integrated temperature sense diode
  • Integrated 10 bit A/D converter
  • Minimal external components needed
  • Custom algorithm support
  • Topologies supported:  Boost, SEPIC, Flyback, and Cuk
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP19214 is a dual-channel, mid-voltage (4.5-42V) analog-based PWM controller with an integrated 8-bit PICTM Microcontroller. This unique product family combines the performance of a high-speed analog control solution, including high-efficiency and fast transient response, with the configurability and communication interface of a digital solution. Combining this analog control circuit with integrated digital management features creates a new family of devices that maximizes the strengths of each technology to create a more cost-effective, configurable, high-performance power conversion solution. These products allow the development of flexible power supplies that can be configured perfectly to the target application with minimal external components. In addition, these devices can be programmed to dynamically respond to measurements or events within the system, dynamically tailoring the operation to the environment, or intelligently responding to faults for robust operation.
The MCP19214 has independent voltage and current control, and can be configured for constant voltage or constant current operation on each of the two control loops. Alternatively, the two control loops can operate in opposite directions on the same power train, creating a bi-directional power supply. All of the key operating parameters, including the output level, are dynamically reconfigurable during operation, using the internal microcontroller core. The device features a pair of independent low side drive outputs, for controlling boost, SEPIC, Cuk or flyback topologies.

This device is similar to the MCP19215, but the MCP19215 has four extra I/O pins with integrated debug support.

Additional Features
    • Dual channel, for operating two power outputs from one controller
    • Constant-current or constant-voltage operation, with dynamic switching between those two control modes, and dynamic adjustment of the output level
    • Capable of bi-directional power supply control
    • Wide input operating voltage range: 4.5-42V
    • Analog peak-current mode Pulse-Width Modulation (PWM) control
    • Integrated 8-Bit PIC® Microcontroller
    • Complete configurability: adjustable output voltage, output current, MOSFET deadtime, leading edge blanking time, thermal responses, slope compensation, over-current protection, over and under voltage lockout levels
    • Available fixed frequency operation from 31 kHz to 2 MHz
    • I2C communication interface
    • 8 GPIO
    • Integrated low-side MOSFET drivers
    • Integrated high voltage linear regulator, with external output
    • Integrated temperature sense diode
    • Integrated 10 bit A/D converter
    • Minimal external components needed
    • Custom algorithm support
    • Topologies supported:  Boost, SEPIC, Flyback, and Cuk
Parametrics
Name
Value
Topologies Supported
Boost,Flyback,Cuk,SEPIC
Min. Operation Voltage (V)
4.5
Max. Operation Voltage (V)
42
Drive Strength (A)
1
Program Memory Type
Flash
Program Memory Size (KWords)
8.0
RAM (bytes)
336
Package Size (mm)
5x5

Documents

Jump to:

Data Sheets

03/29/2017
2256KB

Development Environment

  • Programmers
  • Demo & Evaluation Boards
Programmers
MPLAB PICkit 4 In-Circuit Debugger
MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

Fast programming, increased functionality, at the same price as its predecessor, the PICkit™ 3.

The MPLAB PICkit 4 now has Programmer-to-Go functionality for 8-bit and 32-bit PIC MCUs. The firmware update comes with MPLAB X IDE v5.25. More to come!


The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and

...

Learn More
Add To Cart
MPLAB ICD 4 In-Circuit Debugger
MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® and SAM Microcontrollers (MCUs), dsPIC® Digital Signal Controllers (DSCs), and CEC flash microcontrollers. This speed is provided by a SAME70 MCU with 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield

...

Learn More
Add To Cart
PICkit 3 In-Circuit Debugger
PICkit 3 In-Circuit Debugger ( PG164130 )
(Not Recommended for new design)

The PICkit 3 is not recommended for new designs and no new device support will be added to it as of June 1, 2019. For new designs, please see the MPLAB PICKit 4.

Microchip’s PICkit™ 3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to

...

Learn More
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

Learn More
Add To Cart
MPLAB ICD 3 In-Circuit Debugger
MPLAB ICD 3 In-Circuit Debugger ( DV164035 )
(Not Recommended for new design)

 The MPLAB ICD 3 is a mature product and no new device support will be added to it as of June 1, 2019. For new designs, consider using the MPLAB ICD 4 (DV164045)

MPLAB® ICD 3 In-Circuit Debugger System is Microchip's most cost effective high-speed hardware debugger/programmer for

...

Learn More
MPLAB REAL ICE PROBE KIT
MPLAB REAL ICE PROBE KIT ( DV244005 )
(Not Recommended for new design)



Not recommended for new designs and no new device support will be added to it as of June 1, 2019. For new designs, please consider the MPLAB ICD 4 (DV164045).

MPLAB REAL ICE In-Circuit Emulator System is Microchip’s next generation high speed emulator for

...

Learn More
Demo & Evaluation Boards
MCP19215 Dual Boost / SEPIC Eval Board
MCP19215 Dual Boost / SEPIC Eval Board ( ADM00799 )

The MCP19215 Dual Channel Controller Evaluation Board demonstrates how the MCP19215 device operates in Boost and SEPIC topologies over a wide input voltage and load range. Nearly all operational and control system parameters are programmable by utilizing the integrated PIC controller.

Learn More
Add To Cart
