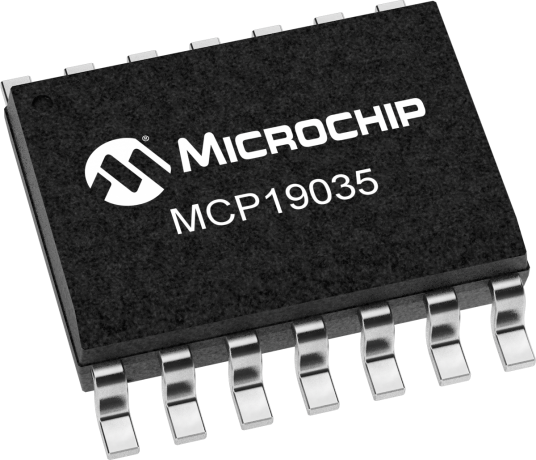

product primary image

MCP19035

30V High Speed Buck PWM Controller

Status: In Production

Features:

  • High-Speed Voltage Mode, Analog Pulse-Width Modulation Control
  • Integrated Synchronous MOSFET Drivers
  • Fixed Switching Frequency (fSW): 300 or 600 kHz
  • Multiple Dead-Time Options for low-FOM MOSFET Compatibility
  • Integrated Current Sense Capability for Short Circuit Protection
  • Integrated Linear Voltage Regulator
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP19035 is a small, analog-based PWM controller family with integrated synchronous MOSFET drivers offering outstanding transient performance. The MCP19035 operates over a wide 4.5 - 30Vdc range, has both a 300 kHz or 600khz switching-frequency option, and offers a factory-adjustable dead-time setting, allowing designers to optimize the performance across a wide selection of MOSFET devices. The MCP19035 family, when combined with Microchip’s MCP87xxx MOSFETs, or any low-FOM MOSFET, produces high-efficiency (>96%) DC/DC power-conversion solutions.

Additional Features
    • High-Speed Voltage Mode, Analog Pulse-Width Modulation Control
    • Integrated Synchronous MOSFET Drivers
    • Fixed Switching Frequency (fSW): 300 or 600 kHz
    • Multiple Dead-Time Options for low-FOM MOSFET Compatibility
    • Integrated Current Sense Capability for Short Circuit Protection
    • Integrated Linear Voltage Regulator
Parametrics
Name
Value
Supported Topologies
Sync. Buck
Supported Outputs
1
Minimum Input Voltage (V)
4.5
Maximum Input Voltage (V)
30
Typical Tolerance (%)
±2.5
Duty Cycle Max (%)
0.85
Operating Frequency (Hz)
300K / 600K
Power Good Signal
True
Soft Start
True
Internal Voltage Bias
True
Enable Pin
True
Current Limit / Short Circuit Protection
True
Input UVLO Typ (V)
4.2
Operating Supply Current (mA)
6
Iq Off (µA)
25
Package
10/3x3DFN

Documents

Jump to:

Data Sheets

Software Library

Software Libraries/Firmware

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
Demo & Evaluation Boards
MCP19035 300 kHz Synchronous Buck Controller Evaluation Board
MCP19035 300 kHz Synchronous Buck Controller Evaluation Board ( ADM00434 )

The MCP19035 300 kHz Synchronous Buck Controller Evaluation Board was developed to provide a compact, low-cost and highly efficient step-down conversion for low to medium output currents.

Devices Supported: MCP19035

Learn More
Add To Cart
MCP19035 600KHz Evaluation Board
MCP19035 600KHz Evaluation Board ( ADM00445 )

The MCP19035 600 kHz Synchronous Buck Controller Evaluation Board is a compact, highly efficient, step-down voltage regulator that will convert the input voltage rail (typically 12V) to 1.8V regulated output voltage. The maximum output current for this step-down converter is 10A. The board demonstrates the capabilities of the MCP19035 600 KHz Synchronous Buck Converter, as well as...

Learn More
Add To Cart
MCP19035 Power Module 8A Evaluation Board
MCP19035 Power Module 8A Evaluation Board ( ADM00987 )

The PM8 module is a compact solution, highly efficient, step-down voltage converter that will convert the input voltage rail (typically 12V) to 5V regulated output voltage. The maximum output current for this step-down converter is 8A. The board demonstrates the capabilities of the MCP19035 600 kHz Synchronous Buck Converter Controller in a typical step-down application. The reference design can...

Learn More
Add To Cart
MCP19035 High Voltage Buck Converter Eval Board
MCP19035 High Voltage Buck Converter Eval Board ( ARD00514 )

The MCP19035 600 kHz Synchronous Buck Converter Controller is a compact, highly efficient, step-down voltage converter that will convert the input voltage rail (typically 24V) to 5V regulated output voltage. The maximum output current for this step-down converter is 5A. The board demonstrates the capabilities of the MCP19035 600 kHz Synchronous Buck Converter Controller in a typical high-voltage...

Learn More
Add To Cart
Software Libraries
Analog Simulation - MCP19035

The MCP19035 is an application-optimized, highspeed synchronous buck controller that operates from input voltage sources up to 30V. This controller implements a voltage-mode control...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP19035-AAAAE/MF
0.023900
0.041667
10
DFN
3x3x0.9mm
Matte Tin
e3
MCP19035-AAABE/MF
0.023900
0.041667
10
DFN
3x3x0.9mm
Matte Tin
e3
MCP19035-BAAAE/MF
0.023900
0.041667
10
DFN
3x3x0.9mm
Matte Tin
e3
MCP19035T-AAAAE/MF
0.023900
0.234849
10
DFN
3x3x0.9mm
Matte Tin
e3
MCP19035T-AAABE/MF
0.023900
0.234849
10
DFN
3x3x0.9mm
Matte Tin
e3
MCP19035T-BAAAE/MF
0.023900
0.234849
10
DFN
3x3x0.9mm
Matte Tin
e3
MCP19035T-BAABE/MF
0.023900
0.234849
10
DFN
3x3x0.9mm
Matte Tin
e3
MCP19035-BAABE/MF
0.023900
0.041667
10
DFN
3x3x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
