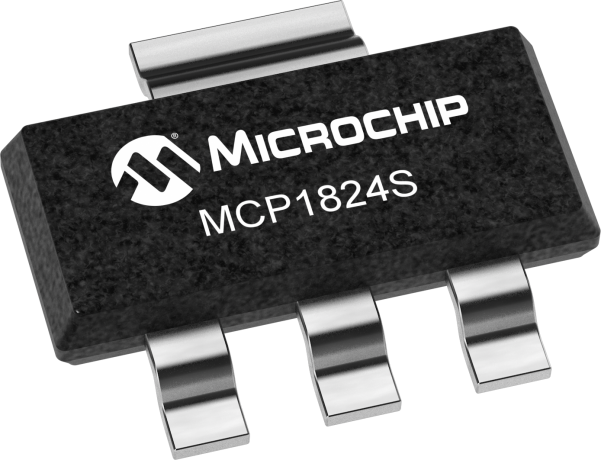

product primary image

MCP1824S

300mA CMOS LDO, Vout=2.5V, Extended Temp Range

Status: In Production

Features:

  • Up to 300 mA output load current
  • Low dropout voltage 200 mV (typ)
  • Standard Fixed Output Voltages: 0.8V, 1.2V, 1.8V, 2.5V, 3.0V, 3.3V, 5.0V. Other fixed output voltages available upon request.
  • Stable with 1.0 µF ceramic output cap
  • Low supply current 120 µA (typ)
  • SOT223-3 Pb-free package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP1845S is a 300 mA, ceramic output cap stable, low output voltage, Low Dropout Voltage Regulator. It is a part of the family of LDOs that includes 500 mA MCP1825S, 1A MCP1826S and 1.5A MCP1827S. MCP1824S comes in thermally capable SOT223 package.

Additional Features
    • Up to 300 mA output load current
    • Low dropout voltage 200 mV (typ)
    • Standard Fixed Output Voltages: 0.8V, 1.2V, 1.8V, 2.5V, 3.0V, 3.3V, 5.0V. Other fixed output voltages available upon request.
    • Stable with 1.0 µF ceramic output cap
    • Low supply current 120 µA (typ)
    • SOT223-3 Pb-free package
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
300
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
300
VIN Min (V)
2.1
VIN Max (V)
6
VOUT (V)
0.8 1.2 1.8 2.5 3.0 3.3 5.0
Voltage Drop Typ (mV)
200
IGND Typ (µA)
120
Tol Typ %
±0.4
PSRR 1 kHz (dB)
55
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheets


508KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP1824ST-0802E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1824ST-1202E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1824ST-1802E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1824ST-2502E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1824ST-3002E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1824ST-3302E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1824ST-5002E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1824SUT-1202E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
