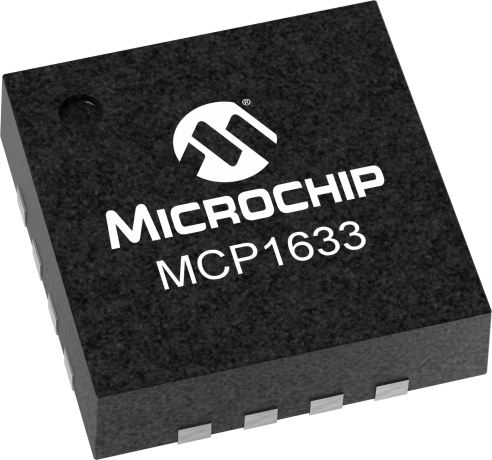

product primary image

MCP1633

High Speed Low Side PWM Controller W/Dimming

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

lMCP1633 is a Fixed Frequency Peak Current Mode PWM Controller and can be used as a standalone LED driver.

Input Voltage: 3.0V – 5.5V
Input Quiescent Current: 3.5mA typical
Oscillator Frequency: 200kHz – 2.2MHz
External Sync. Frequency Range: 0.1MHz – 2.5MHz
Internal Driver RDSON P-Channel: 5Ω max.
Internal Driver RDSON N-Channel: 5Ω max.
PWM DIMM Driver RDSON P-Channel: 100Ω max.
PWM DIMM Driver RDSON N-Channel: 100Ω max.
UVLO Threshold: 3.0V max. with 100mV hysteresis
OVP Default Threshold: 1.23V
Thermal Shutdown Threshold: 1600C with 200C hysteresis

For product comparison, please consider: MCP1631

Additional Features
  • Integrated Over Voltage Comparator
  • Integrated Low Side MOSFET Driver
  • Internal over temperature protection
  • Undervoltage Lockout
  • Thermal shut down with hysteresis
Parametrics
Name
Value
Supported Topologies
Flyback, Boost, SEPIC, Cuk
Supported Outputs
1
Minimum Input Voltage (V)
3
Maximum Input Voltage (V)
5.5
PFM, Discontinuous, Hyperlight load, or Skip Mode
False
Typical Tolerance (%)
±3
Duty Cycle Max (%)
0.99
Operating Frequency (Hz)
Sync. to 2.2 MHz
External Clock Sync
True
Power Good Signal
False
Soft Start
False
Internal Compensation
False
Internal Voltage Bias
False
Enable Pin
True
Current Limit / Short Circuit Protection
True
Input UVLO Typ (V)
2.8
Operating Supply Current (mA)
3.5
Iq Off (µA)
2.4
Package
16/3x3 QFN

Documents

Jump to:
×

Data Sheets

MCP1633 Data Sheet

1196KB

Supporting Collateral

MCP1633 Automotive Headlight Reference Design

4637KB

Software Library

Analog Simulation - MCP1633


User Guides

MCP1633 Automotive Tail Light Reference Design

1972KB
MCP1633 SEPIC LED Driver Demo Board User Guide

634KB

Brochures

Analog and Interface Product Selector Guide

5052KB
Automotive Recommended Product Selector Guide

7598KB

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
Demo & Evaluation Boards
MCP1633 SEPIC LED Driver Demo Board
MCP1633 SEPIC LED Driver Demo Board ( ADM01002 )

The MCP1633 SEPIC LED Driver Demo Board is a step-up/step-down, switch-mode, DC/DC converter used for LED driver applications. The demo board provides a 200mA constant current source. Other output currents can be obtained with minor modifications to the board’s Bill of Materials (BOM). MCP1633 LED Driver Demo Board utilizes Microchip's MCP1633 high-speed Pulse-Width Modulator (PWM). The...

Learn More
Add To Cart
Software Libraries
Analog Simulation - MCP1633

The MCP1633 High Speed PWM Controller is a pulsewidth modulator developed for standalone power supply applications. The MCP1633 design is based on the MCP1632 PWM Controller but includes specific...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP1633-E/MG
0.021600
0.041667
16
QFN
3x3x0.9mm
Matte Tin
e3
MCP1633T-E/MG
0.021600
0.234849
16
QFN
3x3x0.9mm
Matte Tin
e3
MCP1633T-E/MGVAO
0.021600
0.234849
16
QFN
3x3x0.9mm
Matte Tin
e3
MCP1633-E/MGVAO
0.021600
0.041667
16
QFN
3x3x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
