MCP1501

High Precision Buffered Voltage Reference

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

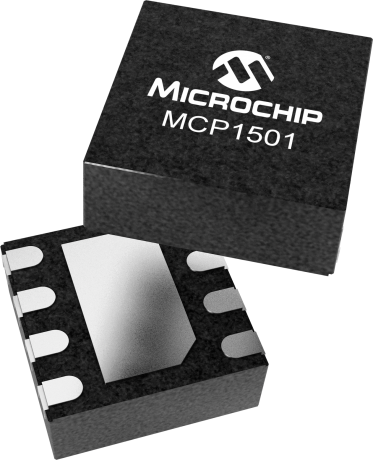

The MCP1501 is a high-precision buffered voltage reference with an initial accuracy of 0.10% and is available in 8 voltage options. The MCP1501 is a low-drift bandgap-based reference and uses chopper-based amplifiers which significantly reduces the drift and provides high current output.  The MCP1501 is available in a very small 2x2 WDFN package, as well as the SOT-23 and SOIC packages. SOT-23 package is AEC-Q100 automotive qualified.

Additional Features
  • Maximum Temperature Coefficient: 50 ppm/°C from -40°C to +125°C
  • Initial Accuracy: 0.10%
  • Operating Temperature Range: -40 to +125°C
  • Line Regulation: 50 ppm/V maximum
  • Load Regulation: 40 ppm/mA maximum
  • Low Typical Operating Current: 140 μA
  • 8 Voltage variants available:
  • 1.024V
  • 1.250V
  • 1.800V
  • 2.048V
  • 2.500V
  • 3.000V
  • 3.300V
  • 4.096V
  • Output Noise (10 Hz to 10 kHz): 27 μVRMS
  • Packages: 8L 2x2 WDFN, 6L SOT-23, 8L SOIC
  • AEC-Q100 qualified, Grade 1 (Only SOT-23 package is automotive qualified)
