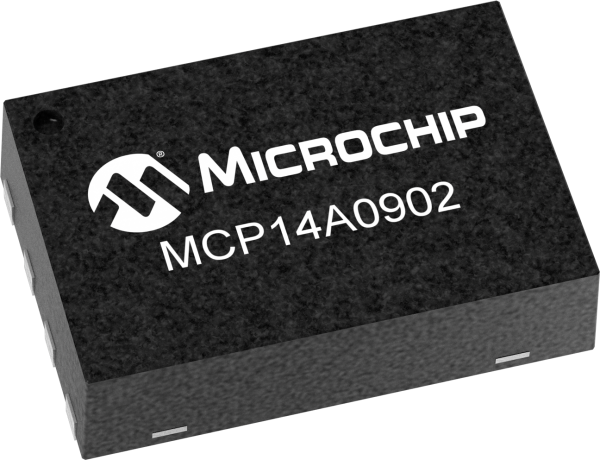

product primary image

MCP14A0902

9A MOSFET Driver: Low Input Threshold, Enable

Status: In Production

Features:

  • High Peak Output Current: 9.0A (typical)
  • Wide Input Supply Voltage Operating Range: 4.5V to 18V
  • Low Shoot-Through/Cross-Conduction Current in Output Stage
  • High Capacitive Load Drive Capability: 10,000 pF in 24 ns (typical)
  • Low-Voltage Threshold Input and Enable with Hysteresis
  • Latch-Up Protected: Withstands 500 mA Reverse Current
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP14A0901/2 devices are high-speed MOSFET drivers that are capable of providing up to 9.0A of peak current while operating from a single 4.5V to 18V supply. There are two output configurations available; inverting (MCP14A0901) and noninverting (MCP14A0902). These devices feature low shoot-through current, fast rise and fall times, and matched propagation delays which make them ideal for highswitching frequency applications.

The MCP14A0901/2 family of devices offers enhanced control with Enable functionality. The active-high Enable pin can be driven low to drive the output of the MCP14A0901/2 low, regardless of the status of the Input pin. An integrated pull-up resistor allows the user to leave the Enable pin floating for standard operation.

These devices are highly latch-up resistant under any condition within their power and voltage ratings. They can accept up to 500 mA of reverse current being forced back into their outputs without damage or logic upset. All terminals are fully protected against electrostatic discharge (ESD) up to 2 kV (HBM) and 200V (MM).

Additional Features
  • High Peak Output Current: 9.0A (typical)
  • Wide Input Supply Voltage Operating Range: 4.5V to 18V
  • Low Shoot-Through/Cross-Conduction Current in Output Stage
  • High Capacitive Load Drive Capability: 10,000 pF in 24 ns (typical)
  • Short Delay Times: 27 ns (tD1), 27 ns (tD2) (typical)
  • Low Supply Current: 360 μA (typical)
  • Low-Voltage Threshold Input and Enable with Hysteresis
  • Latch-Up Protected: Withstands 500 mA Reverse Current
  • 8-Lead MSOP
  • 8-Lead SOIC
  • 8-Lead 2 x 3 TDFN
Parametrics
Name
Value
MOSFET Driver Type
Low Side
Driver Type
Single
Configuration
Non-Inverting
Peak Output Current (source/sink, A)
9/9
Output Resistance (source/sink, Ω)
1/0.7
Maximum Supply Voltage (V)
18
Propagation Delay (Td1/Td2, ns)
24/24
Rise/Fall Time (Tr/Tf, ns)
22/22
Capacitive Load Drive
10,000 pF in 24 ns
Features
Low Input Threshold and Enable

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP14A0902-E/MS
0.025600
0.070000
8
MSOP
3x3mm
Matte Tin
e3
MCP14A0902T-E/MS
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
MCP14A0902T-E/MSVAO
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
MCP14A0902-E/MSVAO
0.025600
0.070000
8
MSOP
3x3mm
Matte Tin
e3
MCP14A0902T-E/MNYVAO
0.014300
0.248485
8
TDFN
2x3x0.8mm
NiPdAu
e4
MCP14A0902T-E/MNY
0.014300
0.248485
8
TDFN
2x3x0.8mm
NiPdAu
e4
MCP14A0902-E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP14A0902T-E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP14A0902T-E/SNVAO
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP14A0902-E/SNVAO
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
