MCP14628

2A Synchronous Buck Power MOSFET Driver

Status: In Production

Features:

  • Adaptive Cross conduction protection
  • High capacitive load drive Capability: 3000 pF in 8.0 ns (typ)
  • Low Supply Current: 80 uA (typ)
  • High Peak Output Current: Source 2.0A (UGATE & LGATE) Sink 2.0A (UGATE) & 4A (LGATE)
  • Internal Bootstrap Blocking Device
  • Enhanced Light Load Efficiency Mode
  • Supports Floating High-Side Drive

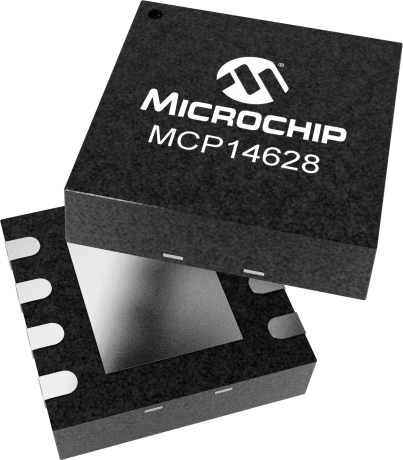

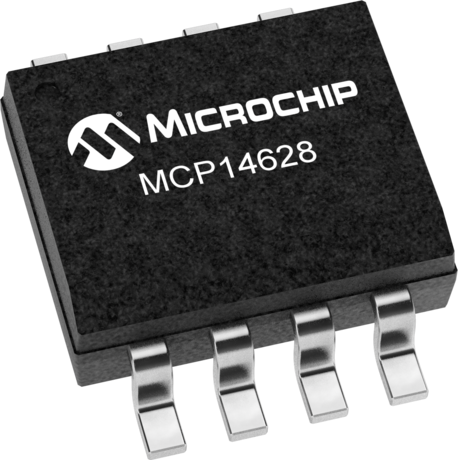

  • Packaging: 8 Lead surface mount SOIC, 150 mil body 8 Lead 3mmX3mm DFN
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP14628 is a synchronous MOSFET driver used for driving MOSFETs in a rectified bridge arrangement. This type of arrangement is typical of synchronous buck converter topologies.There are two separate drivers contained in the MCP14628. the low-side driver output drives a non-floating or ground reference N-Channel MOSFET. The high-side driver is designed to drive a floating N-Channel MOSFET. since the N-Channel is floating, this output needs to be able to handle the high voltages required to fully turn on the high-side MOSFET. An external bootstrap capacitor is used to provide the additional voltage. The MCP14628 is available in a surface mount 8 Lead SOIC package with a body width of 150 mils and the 8 Lead 3mmX3mm DFN package.

Additional Features
    • Adaptive Cross conduction protection
    • High capacitive load drive Capability: 3000 pF in 8.0 ns (typ)
    • Low Supply Current: 80 uA (typ)
    • High Peak Output Current: Source 2.0A (UGATE & LGATE) Sink 2.0A (UGATE) & 4A (LGATE)
    • Internal Bootstrap Blocking Device
    • Enhanced Light Load Efficiency Mode
    • Supports Floating High-Side Drive
    • Packaging: 8 Lead surface mount SOIC, 150 mil body 8 Lead 3mmX3mm DFN
Parametrics
Name
Value
MOSFET Driver Type
Synchronous
Driver Type
Half Bridge Driver
Configuration
Dual Inputs
Peak Output Current (source/sink, A)
2.0/3.5
Output Resistance (source/sink, Ω)
1/1 (0.5 on low side)
Propagation Delay (Td1/Td2, ns)
15/22
Rise/Fall Time (Tr/Tf, ns)
10/10
Capacitive Load Drive
3300 pF in 10 ns
Features
Continuous or discontinuous operation

Documents

Jump to:

Data Sheet

Application Notes

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board ( SOIC8EV )

This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated. Each device pin is connected to a pull-up resistor, a pull-down resistor, an in-line resistor, and a loading capacitor. The PCB pads allow through hole or surface mount connectors to be installed to ease connection to the board. Additional passive component footprints are on the...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP14628-E/MF
0.023800
0.041667
8
DFN
3x3x0.9mm
Matte Tin
e3
MCP14628T-E/MF
0.023800
0.172727
8
DFN
3x3x0.9mm
Matte Tin
e3
MCP14628-E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP14628T-E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
