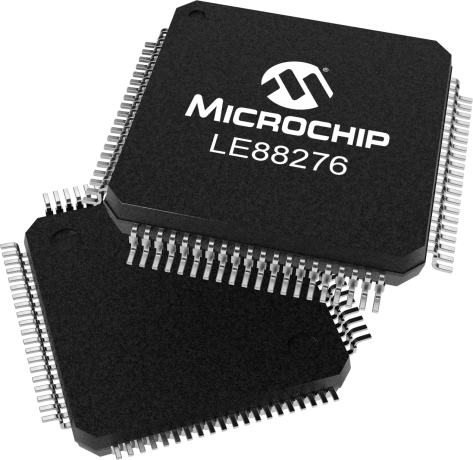

product primary image

LE88276

Dual Channel FXS 150V Wideband VoicePort

Status: Not Recommended for new designs

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Le88276 Tracking Battery VoicePort device implements a dual-channel telephone line interface by providing all the necessary voice interface functions from the high voltage subscriber line to the µP/DSP digital interface. This device reduces system level cost, space, and power. Designers benefit by having a simple, cost effective, low-power and dense, interface design without sacrificing features or functionality. The programmable, feature rich VoicePort device provides a highly functional line interface which meets the requirements of short and medium loop (up to 1500 Ohms total) applications. Features include: high voltage switching regulator, self-test, line test capabilities, integrated ringing (up to 140-Vpk), worldwide software programmability with wideband capability, flexible signal generator with tone cadencing, caller ID generation and all BORSCHT functions. These VoicePort device features are crucial for designing costeffective, full-featured Voice over Broadband solutions.

Please consider this device LE9632

Additional Features
  • Complete BORSCHT function for 2 channels in a single VoicePort device
    • Battery Feed, Over-voltage support, integrated Ringing, line Supervision, Codec, Hybrid (2W/4W), Test
  • Integrated Power Management
    • Integrated high voltage switching regulator controllers
    • Wide input voltage range (VSW =+3.3 V to +35 V)
    • Switching power supply tracks line voltage minimizing active & ringing state power dissipation
    • Low power Idle and On-hook transmission states
  • Worldwide Programmability
    • Two-wire AC impedance, Balance Impedance, Gain
    • DC feed voltage and current limit
    • Ringing frequency, voltage and current limit
    • 12 kHz and 16 kHz Metering
    • Programmable loop closure and ring trip thresholds
  • Ringing
    • 5 REN
    • Up to 140-Vpk internal balanced sinusoidal or trapezoidal ringing with programmable DC offset
    • Unbalanced ringing for PBX trunk compatibility
  • Powerful signal generator
    • Universal Caller ID generation
    • Up to 4 simultaneous tones
    • Automatic cadencing feature
  • VoicePath API-II Software available to implement FXS functions
    • Supports device calibration
    • Line configuration via VoicePath Profile Wizard
  • VeriVoice Test Suite Subscriber Loop Test
    • Seamless integration with API-II software
    • Utilizes integrated self test capabilities
    • Line fault detection and reporting
  • Pin selectable PCM/MPI or GCI interface
  • G.711 µ-law, A-law, or 16 bit linear coding
  • Wideband 16 kHz sampling mode
  • Integrated 150 mW 3-V or 5-V Relay Driver
  • Small footprint package - Exposed pad 80-pin LQFP
Parametrics
Name
Value
Application
Broadband Gateway FXS
Series
VE880
Loop Length
Short
Battery Topology
Tracking
SOC Interface
PCM/SPI
Output Voltage (V) max
150
Number of Ports
2
Release
True

Documents

Jump to:

Data Sheets


1165KB

Please visit the Microsemi Software Download System (SDS) for available software.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE88276DLC
0.690100
0.633333
80
LQFP
14x14x1.4mm
Matte Tin
e3
LE88276DLCT
0.690100
1.510000
80
LQFP
14x14x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
