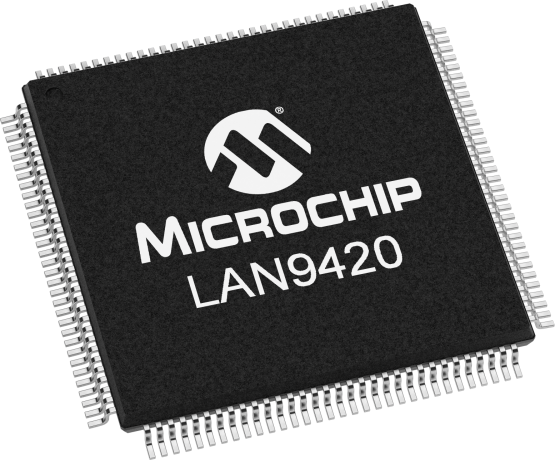

product primary image

LAN9420

10/100 Base-T/TX Ethernet Controller with PCI Interface

Status: In Production

Features:

  • Optimized for embedded applications with 32-bit RISC CPUs
  • Integrated descriptor based scatter-gather DMA and IRQ deassertion timer effectively increase network throughput and reduce CPU loading
  • Integrated Ethernet MAC with full-duplex support
  • Integrated 10/100 Ethernet PHY with HP Auto-MDIX Support
  • 32-bit, 33MHz, PCI 3.0 compliant interface
  • Reduced power operating modes with PCI Power Management Specification 1.1 compliance
  • Supports multiple audio & video streams over Ethernet
  • Cable, satellite, and IP set-top boxes
  • Digital televisions
  • Digital video recorders
  • Home gateways
  • Digital media clients/servers
  • Industrial automation systems
  • Industrial/single board PC
  • Kiosk/POS enterprise equipment
  • Fully compliant with IEEE 802.3/802.3u
  • Integrated Ethernet MAC and PHY
  • 10BASE-T and 100BASE-TX support
  • Full- and Half-duplex support
  • Full-duplex flow control
  • Preamble generation and removal
  • Automatic 32-bit CRC generation and checking
  • Automatic payload padding and pad removal
  • Loop-back modes
  • One 48-bit perfect address
  • 64 hash-filtered multicast addresses
  • Pass all multicast
  • Promiscuous mode
  • Inverse filtering
  • Pass all incoming with status report
  • Wakeup packet support
  • Auto-negotiation
  • Automatic polarity detection and correction
  • Supports HP Auto-MDIX
  • Supports energy-detect power down
  • Support for 3 status LEDs
  • Receive and transmit TCP checksum offload
  • PCI Local Bus Specification Revision 3.0 compliant
  • 32-bit/33-MHz PCI bus
  • Descriptor based scatter-gather DMA enables zero-copy drivers
  • Supports PCI Bus Power Management Interface Specification, Revision 1.1
  • Supports optional wake from D3cold (via configuration strap option when Vaux is available)
  • Wake on LAN
  • Wake on link status change (energy detect)
  • Magic packet wakeup
  • 3 programmable GPIO pins
  • 2 GPO pins
  • Serial interface provided for EEPROM
  • Used to store PCI and MAC address configuration values
  • Big/Little/Mixed endian support for registers, descriptors, and buffers
  • IRQ deassertion timer
  • General purpose timer
  • Integrated 1.8V regulator
  • Available in 128-pin VTQFP RoHS Compliant package
  • Available in commercial & industrial temperature ranges
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

LAN9420/LAN9420i is a full-featured, Fast Ethernet controller which allows for the easy and cost-effective integration of Fast Ethernet into a PCI-based system. LAN9420/LAN9420i consists of a PCI Local Bus Specification Revision 3.0 compliant interface, DMA Controller, Ethernet MAC, and 10/100 Ethernet PHY.

LAN9420/LAN9420i provides full IEEE 802.3 compliance and all internal components support full/half-duplex 10BASE-T, 100BASE-TX, and manual full-duplex flow control. The descriptor based scatter-gather DMA supports usage of zero-copy drivers, effectively increasing throughput while decreasing Host load. The integrated IRQ deassertion timer allows a minimum IRQ deassertion time to be set, providing reduced Host load and greater control over service routines. Automatic 32-bit CRC generation/checking, automatic payload padding, and 2K jumbo packets (2048 byte) are supported.


*The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features

    Highlights

    • Optimized for embedded applications with 32-bit RISC CPUs
    • Integrated descriptor based scatter-gather DMA and IRQ deassertion timer effectively increase network throughput and reduce CPU loading
    • Integrated Ethernet MAC with full-duplex support
    • Integrated 10/100 Ethernet PHY with HP Auto-MDIX Support
    • 32-bit, 33MHz, PCI 3.0 compliant interface
    • Reduced power operating modes with PCI Power Management Specification 1.1 compliance
    • Supports multiple audio & video streams over Ethernet

    Target Applications

    • Cable, satellite, and IP set-top boxes
    • Digital televisions
    • Digital video recorders
    • Home gateways
    • Digital media clients/servers
    • Industrial automation systems
    • Industrial/single board PC
    • Kiosk/POS enterprise equipment

    Key Benefits

    • Integrated High-Performance 10/100 Ethernet Controller
      • Fully compliant with IEEE 802.3/802.3u
      • Integrated Ethernet MAC and PHY
      • 10BASE-T and 100BASE-TX support
      • Full- and Half-duplex support
      • Full-duplex flow control
      • Preamble generation and removal
      • Automatic 32-bit CRC generation and checking
      • Automatic payload padding and pad removal
      • Loop-back modes
      • Flexible address filtering modes
        • One 48-bit perfect address
        • 64 hash-filtered multicast addresses
        • Pass all multicast
        • Promiscuous mode
        • Inverse filtering
        • Pass all incoming with status report
      • Wakeup packet support
      • Integrated 10/100 Ethernet PHY
        • Auto-negotiation
        • Automatic polarity detection and correction
        • Supports HP Auto-MDIX
        • Supports energy-detect power down
      • Support for 3 status LEDs
      • Receive and transmit TCP checksum offload
    • PCI Interface
      • PCI Local Bus Specification Revision 3.0 compliant
      • 32-bit/33-MHz PCI bus
      • Descriptor based scatter-gather DMA enables zero-copy drivers
    • Comprehensive Power Management Features
      • Supports PCI Bus Power Management Interface Specification, Revision 1.1
      • Supports optional wake from D3cold (via configuration strap option when Vaux is available)
      • Wake on LAN
      • Wake on link status change (energy detect)
      • Magic packet wakeup
    • General Purpose I/O
      • 3 programmable GPIO pins
      • 2 GPO pins
    • Support for Optional EEPROM
      • Serial interface provided for EEPROM
      • Used to store PCI and MAC address configuration values
    • Miscellaneous features
      • Big/Little/Mixed endian support for registers, descriptors, and buffers
      • IRQ deassertion timer
      • General purpose timer
    • Single 3.3V Power Supply
      • Integrated 1.8V regulator
    • Packaging
      • Available in 128-pin VTQFP RoHS Compliant package
    • Environmental
      • Available in commercial & industrial temperature ranges
Parametrics
Name
Value
Description
10Base-T/100Base-TX Ethernet Controller with PCI interface
Ethernet Bandwidth
10/100Mbps
MAC
Yes
PHY
Yes
TX/RX RAM Buffer(Bytes)
N/A
Interrupt Pin
1
LEDs
3
# Ethernet Ports
1
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
Max Speed (MHz)
33Mhz
Mixed Endian
Yes
Checksum Offload
Yes
Interface
32 bit PCI 3.0
Vdd I/O (V)
3.3

Documents

Jump to:

IBIS

Development Environment

  • Software Libraries
Software Libraries
LAN9420 Linux driver

LAN9420 Linux driver

Learn More
LAN9420 Windows Device Driver (NDIS5.1)

LAN9420 Windows Device Driver (NDIS5.1)

Learn More
LAN9420 Windows EEPROM Programming Utility

LAN9420 Windows EEPROM Programming Utility

Learn More

Similar Devices

Product
Ethernet Bandwidth
Interface
Price 5K
10Mbps
SPI
$2.03
10/100Mbps
SPI, Parallel
$2.60
10/100Mbps
SPI, Parallel
$2.81
10/100Mbps / FX
8-bit or 16-bit
$3.97
10/100Mbps
8-bit or 16-bit
$13.42
10/100Mbps
8/16/32-bit, MII
$7.99
10/100Mbps
8/16/32-bit
$5.36
10/100Mbps
8-/16-/32-bit or SPI
$2.42
10/100/1000Mbps
8/16-bit
$18.27
10/100Mbps
32 bit Host Bus
$18.24
10/100Mbps
HSIC
$5.87
10/100Mbps
16 bit Host Bus
$6.18
10/100Mbps
16-bit or 32-bit
$8.26
10/100Mbps
16 bit Host Bus
$8.43
10/100Mbps
16-bit or 32-bit
$13.48
10/100Mbps
16-bit or 32-bit

10/100Mbps
16 bit PCMCIA and Host Bus

10/100Mbps
16-bit or 32-bit
$16.55
10Mbps
16 bit PCMCIA and Host Bus
$11.03
10/100Mbps
16 bit Host Bus
$5.20
10/100Mbps
16 bit
$6.26
10/100Mbps
16 bit Host Bus, MII
$7.42
10/100Mbps
16 bit Host Bus, MII
$10.67
10/100Mbps
32 bit Host Bus
$13.37
10/100Mbps
16 bit Host Bus
$3.74
10/100Mbps
16 bit Host Bus
$4.67
10/100Mbps
8/16-bit Host Bus or SPI
$3.87
10/100Mbps
32 bit PCI 3.0
$3.02
