Status: In Production
View More
Microchip’s LAN9252 is a 2/3-port EtherCAT slave controller (ESC) with dual integrated Ethernet PHYs which each contain a full-duplex 100BASE-TX transceiver and support 100Mbps (100BASE-TX) operation. The LAN9252 supports HP Auto-MDIX, allowing the use of direct connect or cross-over LAN cables. 100BASE-FX is supported via an external fiber transceiver. This device provides system developers a cost-effective solution for realizing EtherCAT device solutions.
The LAN9252 includes a 3 port EtherCAT slave controller with 4K bytes of Dual Port memory (DPRAM), 4 SyncManagers, 3 Fieldbus Memory Management Units (FMMUs) and a 64-bit Distributed Clock.
It supports 4 Process Data Interfaces - SPI/SQI, HBI and a 16 Bit Digital IO. SPI and SQI (high speed SPI) provide a low pin count synchronous slave interface that facilitates communication between the device and a host system. Whereas, the Host Bus Interface facilitates the same via a high-speed asynchronous slave interface. For simple digital modules without micro-controllers, the LAN9252 can also operate in Digital I/O Mode where 16 digital signals can be controlled or monitored by the EtherCAT master.
The LAN9252 can also be configured to operate via a single 3.3V supply utilizing an integrated 3.3V to 1.2V linear regulator. The internal linear regulator may also be disabled, allowing usage of a high efficiency external regulator for lower system power dissipation.

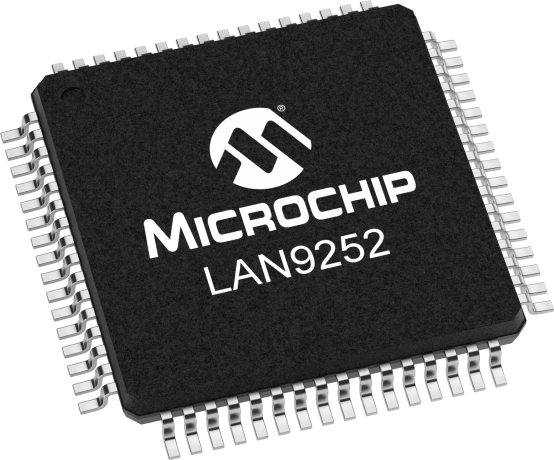

The LAN9252 is available in commercial, industrial and extended industrial temperature ranges and comes in either a 64 pin QFN or a 64 pin TQFP-EP.
Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in*.
*The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.
EVB-LAN9252-D51 allows engineers to develop using the LAN9252 ESC together with a Cortex M4F Microcontroller. Peripherals are provided on board with expansion via the popular mikroBUS Click Board™ interface. This hardware is fully supported within the Microchip Harmony Framework.
Applications: Industrial control, Motor Drives, HVAC, Environmental monitoring, Power
...
The LAN9252-3PORT EVB is an 3-Port EtherCAT slave controller which addresses our customers’ requests for a standalone platform to develop an EtherCAT slave device with SPI/SQI as the PDI Interface . This board supports on-board PIC32MX or option for other SoC’s. It supports three network connections with two integrated PHY’s in RJ45 sockets and Option for interfacing any third...
The LAN9252-4PORT EVB is an unique design by cascading two LAN9252 ESC in Back to Back configuration through the MII interface . It addresses our customers’ requests for a standalone platform to develop an EtherCAT slave device with SPI/SQI as the PDI Interface. This board supports on-board PIC32MX or option for other SoC’s. It supports four network connections with integrated...
The LAN9252 DIGIO board satisfies the demand for hardware only EtherCAT slave devices, and achieves this using LAN9252. We expose the DIGIO interface together with control signals and can operate without an attached MCU. The board allows for dual network connections to RJ45 sockets or can optionally fit optical interfaces to accommodate Fiber via an SFP module. This board is delivered...
EVB-LAN9252-HBIPLUS is a progression from the original EVB-LAN9252-HBI board which allows evaluation of the LAN9252 device with an attached microcontroller.
Peripherals are provided which together with a supporting software development kit enable full usage of the platform. A PIC32MX795 device is populated on the board with provision for other controllers via the Microchip...
EVB-LAN9252-PICtail™ Add-On Board is used for evaluating Microchip Technology’s LAN9252, a 2/3-port EtherCAT® slave controller with dual integrated Ethernet PHYs. It is an expansion board compatible with Explorer 16 development platform.
EVB-LAN9252-SPI has been produced to answer our customers' requests for a vehicle to allow evaluation of the LAN9252 EtherCAT Slave Controller (ESC), via an SPI Microcontroller abstraction.
This dual purpose board has the option to plug directly into some environments and allow fly-wiring to ...
For pricing and availability, contact Microchip Local Sales.
