LAN9250

10/100 Base-T/TX Ethernet Controller with 8/16 Bit/SPI/SQI Interface

Status: In Production

Features:

  • 16-bit 10/100 industrial Ethernet controller & PHY
  • Interfaces to most 8/16-bit embedded controllers
  • Also 32-bit embedded controllers with an 8/16-bit bus
  • Also supports SPI/SQI
  • Integrated Ethernet PHY with HP Auto-MDIX
  • Integrated Ethernet MAC
  • Compliant with Energy Efficient Ethernet 802.3az
  • Wake on LAN (WoL) support
  • Integrated IEEE 1588v2 hardware time stamp unit
  • Cable diagnostic support
  • 1.8V to 3.3V variable voltage I/O
  • Integrated 1.2V regulator for single 3.3V operation
  • Low pin count and small body size package
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The LAN9250 is a full-featured, single-chip 10/100 Ethernet controller designed for embedded applications where performance,flexibility, ease of integration and system cost control are required. The LAN9250 has been specifically designed to provide high performance and throughput for 16-bit applications. The LAN9250 complies with the IEEE802.3 (full/half-duplex 10BASE-T and 100BASE-TX) Ethernet protocol, IEEE 802.3az Energy Efficient Ethernet (EEE)(100Mbps only), and the IEEE 1588v2 precision time protocol. 100BASE-FX is supported via an external fiber transceiver.

The LAN9250 includes an integrated Ethernet MAC and PHY with a high-performance SRAM-like slave interface. For additional design flexibility SPI and SQI interfaces are also supported. The integrated checksum offload engines enable the automatic generation of the 16-bit checksum for received and transmitted Ethernet frames, offloading the task from the CPU. The LAN9250 also includes large transmit and receive data FIFOs to accommodate high latency applications. In addition, the LAN9250 memory buffer architecture allows highly efficient use of memory resources by optimizing packet granularity. The LAN9250 also supports features which reduce or eliminate packet loss. The internal 16-KByte SRAM can hold over 200 received packets. If the receive FIFO gets too full, the LAN9250 can automatically generate flow control packets to the remote node, or assert back-pressure on the remote node by generating network collisions.

The LAN9250 can be configured to operate via a single 3.3V supply utilizing an integrated 3.3V to 1.2V linear regulator.The linear regulator may be optionally disabled, allowing usage of a high efficiency external regulator for lower system power dissipation

Microchip's complimentary and confidential LANCheck® online design review services are available for customers who have selected our products for their application design-in*.

*The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
    • 16-bit 10/100 industrial Ethernet controller & PHY
    • Interfaces to most 8/16-bit embedded controllers
    • Also 32-bit embedded controllers with an 8/16-bit bus
    • Also supports SPI/SQI
    • Integrated Ethernet PHY with HP Auto-MDIX
    • Integrated Ethernet MAC
    • Compliant with Energy Efficient Ethernet 802.3az
    • Wake on LAN (WoL) support
    • Integrated IEEE 1588v2 hardware time stamp unit
    • Cable diagnostic support
    • 1.8V to 3.3V variable voltage I/O
    • Integrated 1.2V regulator for single 3.3V operation
    • Low pin count and small body size package
Parametrics
Name
Value
Description
10/100 Industrial Ethernet Controller & PHY
Ethernet Bandwidth
10/100Mbps
MAC
Yes
PHY
Yes
TX/RX RAM Buffer(Bytes)
16K
Interrupt Pin
1
LEDs
3
# Ethernet Ports
1
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
105
Mixed Endian
Yes
Checksum Offload
Yes
Fiber Support
Yes
Interface
8/16-bit Host Bus or SPI
Vdd I/O (V)
1.8/2.5/3.3
LinkMD Cable Diag
Yes
WOL
Yes

Documents

Jump to:

BOM

11/05/2015
34KB

Product Document

Gerber Files

11/05/2015
254KB

Schematics

User Guides

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
LAN9250 - 10/100 Ethernet Controller & PHY
LAN9250 - 10/100 Ethernet Controller & PHY ( EVB-LAN9250 )

The LAN9250 is a full-featured, High-Performance, single-chip 10/100 Ethernet controller designed for embedded applications where performance, flexibility, ease of integration and system cost control are required. The LAN9250 includes an integrated Ethernet MAC and PHY with a high-performance SRAM-like slave interface. The simple, yet highly functional host bus interface provides a glue-less...

Learn More
Add To Cart

Similar Devices

Product
Ethernet Bandwidth
Interface
Price 5K
10Mbps
SPI
$2.03
10/100Mbps
SPI, Parallel
$2.60
10/100Mbps
SPI, Parallel
$2.81
10/100Mbps / FX
8-bit or 16-bit
$3.97
10/100Mbps
8-bit or 16-bit
$13.42
10/100Mbps
8/16/32-bit, MII
$7.99
10/100Mbps
8/16/32-bit
$5.36
10/100Mbps
8-/16-/32-bit or SPI
$2.42
10/100/1000Mbps
8/16-bit
$18.27
10/100Mbps
32 bit Host Bus
$18.24
10/100Mbps
HSIC
$5.87
10/100Mbps
16 bit Host Bus
$6.18
10/100Mbps
16-bit or 32-bit
$8.26
10/100Mbps
16 bit Host Bus
$8.43
10/100Mbps
16-bit or 32-bit
$13.48
10/100Mbps
16-bit or 32-bit

10/100Mbps
16 bit PCMCIA and Host Bus

10/100Mbps
16-bit or 32-bit
$16.55
10Mbps
16 bit PCMCIA and Host Bus
$11.03
10/100Mbps
16 bit Host Bus
$5.20
10/100Mbps
16 bit
$6.26
10/100Mbps
16 bit Host Bus, MII
$7.42
10/100Mbps
16 bit Host Bus, MII
$10.67
10/100Mbps
32 bit Host Bus
$13.37
10/100Mbps
16 bit Host Bus
$3.74
10/100Mbps
16 bit Host Bus
$4.67
10/100Mbps
8/16-bit Host Bus or SPI
$3.87
10/100Mbps
32 bit PCI 3.0
$3.02

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP

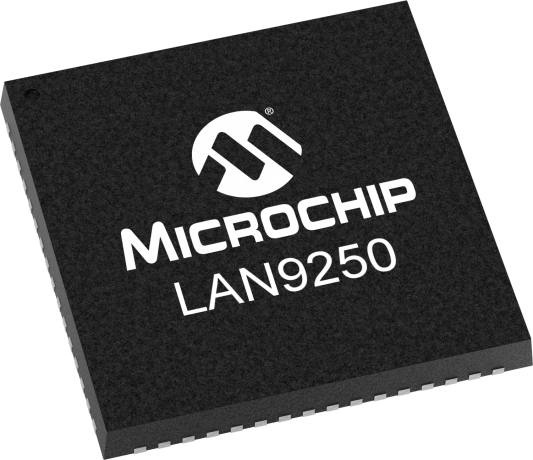

LAN9250/ML
0.232400
1.769231
64
QFN
9x9x0.9mm
Matte Tin
e3
LAN9250I/ML
0.232400
1.769231
64
QFN
9x9x0.9mm
Matte Tin
e3
LAN9250V/ML
0.232400
1.769231
64
QFN
9x9x0.9mm
Matte Tin
e3
LAN9250TV/ML
0.232400
0.370303
64
QFN
9x9x0.9mm
Matte Tin
e3
LAN9250T/ML
0.232400
0.370303
64
QFN
9x9x0.9mm
Matte Tin
e3
LAN9250TI/ML
0.232400
0.370303
64
QFN
9x9x0.9mm
Matte Tin
e3

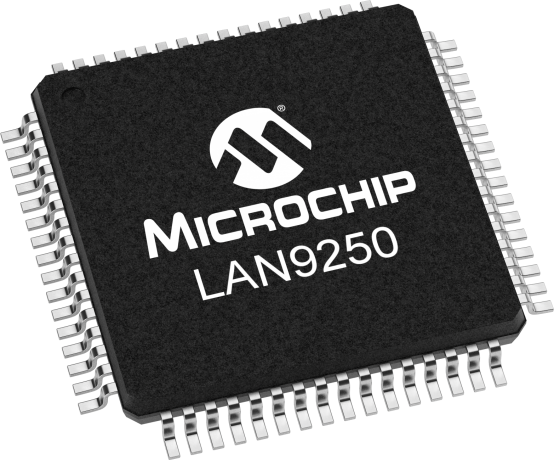

LAN9250/PT
0.286700
2.468750
64
TQFP
10x10x1.0mm
Matte Tin
e3
LAN9250T/PT
0.286700
0.875000
64
TQFP
10x10x1.0mm
Matte Tin
e3
LAN9250I/PT
0.286700
2.468750
64
TQFP
10x10x1.0mm
Matte Tin
e3
LAN9250TI/PT
0.286700
0.875000
64
TQFP
10x10x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
