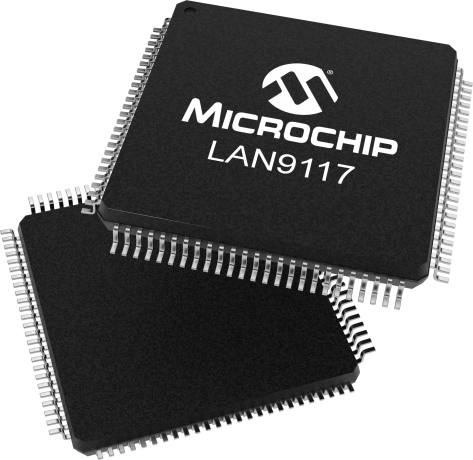

product primary image

LAN9117

10/100 Base-T/TX Ethernet Controller with 16 Bit Interface

Status: Not Recommended for new designs

Features:

  • Member of LAN9118 Family; optimized for medium-high performance applications
  • Easily interfaces to most 16-bit embedded CPU''s
  • Efficient architecture with low CPU overhead
  • Integrated PHY; supports external PHY via MII interface
  • Supports audio & video streaming over Ethernet: 1-2 high-definition (HD) MPEG2 streams
  • Medium-high speed member of LAN9118 Family (all members are pin-compatible)
  • Medium-range Cable, satellite, and IP set-top boxes
  • Digital video recorders and DVD recorders/players
  • High definition televisions
  • Digital media clients/servers and home gateways
  • Video-over IP solutions, IP PBX & video phones
  • Wireless routers & access points
  • High-end audio distribution systems
  • 16-bit interface with fast bus cycle times
  • Burst-mode read support
  • External MII interface
  • Internal buffer memory can store over 200 packets
  • Supports automatic or host-triggered PAUSE and back-pressure flow control
  • Supports Slave-DMA
  • Interrupt Pin with Programmable Hold-off timer
  • SRAM-like interface easily interfaces to most Embedded CPU''s or SoC''s
  • Low-cost, low-pin count non-PCI interface for embedded designs
  • Numerous power management modes
  • Wake on LAN*
  • Magic packet wakeup*
  • Wakeup indicator event signal
  • Link Status Change
  • Fully compliant with IEEE 802.3/802.3u standards
  • Integrated Ethernet MAC and PHY
  • 10BASE-T and 100BASE-TX support
  • Full- and Half-duplex support
  • Full-duplex flow control
  • Backpressure for half-duplex flow control
  • Preamble generation and removal
  • Automatic 32-bit CRC generation and checking
  • Automatic payload padding and pad removal
  • Loop-back modes
  • One 48-bit perfect address
  • 64 hash-filtered multicast addresses
  • Pass all multicast
  • Promiscuous mode
  • Inverse filtering
  • Pass all incoming with status report
  • Disable reception of broadcast packets
  • Auto-negotiation
  • Automatic polarity detection and correction
  • Simple, SRAM-like interface
  • 16-bit data bus
  • Large, 16Kbyte FIFO memory that can be allocated to RX or TX functions
  • One configurable host interrupt
  • Low profile 100-pin, TQFP RoHS Compliant package
  • Integral 1.8V regulator
  • General Purpose Timer
  • Support for optional EEPROM
  • Support for 3 status LEDs multiplexed with Programmable GPIO signals
  • 3.3V Power Supply with 5V tolerant I/O
  • 0° to 70°C
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The LAN9117 is a full-featured, single-chip 10/100 Ethernet controller designed for embedded applications where performance, flexibility, ease of integration and system cost control are required. The LAN9117 has been specifically architected to provide the highest performance possible for any 16-bit application. The LAN9117 is fully IEEE 802.3 10BASE-T and 802.3u 100BASE-TX compliant.

The LAN9117 includes an integrated Ethernet MAC and PHY with a high-performance SRAM-like slave interface. The simple, yet highly functional host bus interface provides a glue-less connection to most common 16-bit microprocessors and microcontrollers as well as 32-bit microprocessors exposing a 16-bit external bus. The LAN9117 includes large transmit and receive data FIFOs with a high-speed host bus interface to accommodate high bandwidth, high-latency applications. In addition, the LAN9117 memory buffer architecture allows the most efficient use of memory resources by optimizing packet granularity.

The 93AA46AE48 EEPROM device from Microchip comes with a factory programmed, globally unique EUI-48™ MAC Address. This Ethernet controller will automatically detect and load the EUI-48™ node address from the 93AA46AE48 EEPROM at start-up or reset.

*The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Please consider this device LAN9218

Additional Features

    Highlights

    • Member of LAN9118 Family; optimized for medium-high performance applications
    • Easily interfaces to most 16-bit embedded CPU's
    • Efficient architecture with low CPU overhead
    • Integrated PHY; supports external PHY via MII interface
    • Supports audio & video streaming over Ethernet: 1-2 high-definition (HD) MPEG2 streams
    • Medium-high speed member of LAN9118 Family (all members are pin-compatible)

    Target Applications

    • Medium-range Cable, satellite, and IP set-top boxes
    • Digital video recorders and DVD recorders/players
    • High definition televisions
    • Digital media clients/servers and home gateways
    • Video-over IP solutions, IP PBX & video phones
    • Wireless routers & access points
    • High-end audio distribution systems

    Key Benefits

    • Non-PCI Ethernet controller for medium-high performance applications
      • 16-bit interface with fast bus cycle times
      • Burst-mode read support
      • External MII interface
    • Eliminates dropped packets
      • Internal buffer memory can store over 200 packets
      • Supports automatic or host-triggered PAUSE and back-pressure flow control
    • Minimizes CPU overhead
      • Supports Slave-DMA
      • Interrupt Pin with Programmable Hold-off timer
    • Reduces system cost and increases design flexibility
      • SRAM-like interface easily interfaces to most Embedded CPU's or SoC's
      • Low-cost, low-pin count non-PCI interface for embedded designs
    • Reduced-Power Modes
      • Numerous power management modes
      • Wake on LAN*
      • Magic packet wakeup*
      • Wakeup indicator event signal
      • Link Status Change
    • Single chip Ethernet controller
      • Fully compliant with IEEE 802.3/802.3u standards
      • Integrated Ethernet MAC and PHY
      • 10BASE-T and 100BASE-TX support
      • Full- and Half-duplex support
      • Full-duplex flow control
      • Backpressure for half-duplex flow control
      • Preamble generation and removal
      • Automatic 32-bit CRC generation and checking
      • Automatic payload padding and pad removal
      • Loop-back modes
    • Flexible address filtering modes
      • One 48-bit perfect address
      • 64 hash-filtered multicast addresses
      • Pass all multicast
      • Promiscuous mode
      • Inverse filtering
      • Pass all incoming with status report
      • Disable reception of broadcast packets
    • Integrated Ethernet PHY
      • Auto-negotiation
      • Automatic polarity detection and correction
    • High-Performance host bus interface
      • Simple, SRAM-like interface
      • 16-bit data bus
      • Large, 16Kbyte FIFO memory that can be allocated to RX or TX functions
      • One configurable host interrupt
    • Miscellaneous features
      • Low profile 100-pin, TQFP RoHS Compliant package
      • Integral 1.8V regulator
      • General Purpose Timer
      • Support for optional EEPROM
      • Support for 3 status LEDs multiplexed with Programmable GPIO signals
    • 3.3V Power Supply with 5V tolerant I/O
    • 0° to 70°C

    *Third-party brands and names are the property of their respective owners.

Parametrics
Name
Value
Description
10Base-T/100Base-TX Ethernet Controller with 16 bit interface
Ethernet Bandwidth
10/100Mbps
MAC
Yes
PHY
Yes
TX/RX RAM Buffer(Bytes)
16K
Interrupt Pin
1
LEDs
3
# Ethernet Ports
1
Temp. Range Max. (°C)
70
Mixed Endian
Yes
Interface
16 bit Host Bus
Vdd I/O (V)
3.3

Documents

Jump to:

IBIS

04/08/2005
237KB

Development Environment

  • Software Libraries
Software Libraries
LAN911x Driver Pseudo Code

Learn More
LAN91xx/LAN92xx uboot driver for ARM

LAN91xx/LAN92xx uboot driver for ARM

Learn More
LAN91xx/LAN92xx VxWorks 5.5 driver on SH3 processor

LAN91xx/LAN92xx VxWorks 5.5 driver on SH3 processor

Learn More
LAN91xx/LAN92xx/LAN9311/LAN9312 eBoot Driver for XScale Processor

LAN91xx/LAN92xx/LAN9311/LAN9312 eBoot Driver for XScale Processor

Learn More
LAN91xx/LAN92xx/LAN9311/LAN9312 Linux Driver on SH3 Processor

LAN91xx/LAN92xx/LAN9311/LAN9312 Linux Driver on SH3 Processor

Learn More
LAN91xx/LAN92xx/LAN9311/LAN9312 Linux driver on XScale processor

LAN91xx/LAN92xx/LAN9311/LAN9312 Linux driver on XScale processor

Learn More
LAN91xx/LAN92xx/LAN9311/LAN9312 Windows CE 5.0 & 6.0 Driver

LAN91xx/LAN92xx/LAN9311/LAN9312 Windows CE 5.0 & 6.0 Driver

Learn More

Similar Devices

Product
Ethernet Bandwidth
Interface
Price 5K
10Mbps
SPI
$2.03
10/100Mbps
SPI, Parallel
$2.60
10/100Mbps
SPI, Parallel
$2.81
10/100Mbps / FX
8-bit or 16-bit
$3.97
10/100Mbps
8-bit or 16-bit
$13.42
10/100Mbps
8/16/32-bit, MII
$7.99
10/100Mbps
8/16/32-bit
$5.36
10/100Mbps
8-/16-/32-bit or SPI
$2.42
10/100/1000Mbps
8/16-bit
$18.27
10/100Mbps
32 bit Host Bus
$18.24
10/100Mbps
HSIC
$5.87
10/100Mbps
16 bit Host Bus
$6.18
10/100Mbps
16-bit or 32-bit
$8.26
10/100Mbps
16 bit Host Bus
$8.43
10/100Mbps
16-bit or 32-bit
$13.48
10/100Mbps
16-bit or 32-bit

10/100Mbps
16 bit PCMCIA and Host Bus

10/100Mbps
16-bit or 32-bit
$16.55
10Mbps
16 bit PCMCIA and Host Bus
$11.03
10/100Mbps
16 bit Host Bus
$5.20
10/100Mbps
16 bit
$6.26
10/100Mbps
16 bit Host Bus, MII
$7.42
10/100Mbps
16 bit Host Bus, MII
$10.67
10/100Mbps
32 bit Host Bus
$13.37
10/100Mbps
16 bit Host Bus
$3.74
10/100Mbps
16 bit Host Bus
$4.67
10/100Mbps
8/16-bit Host Bus or SPI
$3.87
10/100Mbps
32 bit PCI 3.0
$3.02

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LAN9117-MT
0.580400
6.666667
100
LQFP
14x14x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
