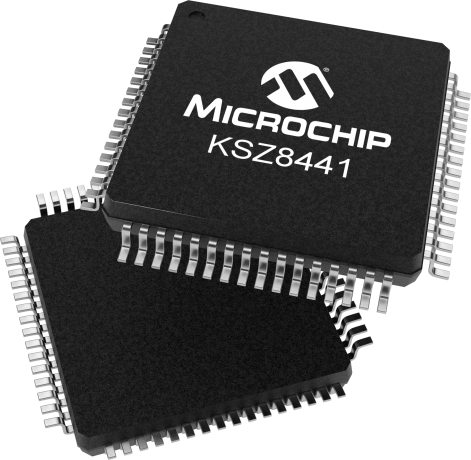

product primary image

KSZ8441

10/100 Base-T/TX Ethernet Controller with IEEE1588v2 Support

Status: In Production

Features:

  • Management Capabilities
  • Robust Ethernet PHY Port
  • Ethernet MAC
  • Comprehensive Configuration Registers Access
  • IEEE1588v2 PTP and Clock Synchronization
  • Host Interface
  • Power and Power Management
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The KSZ8441 product is an IEEE 1588v2-enabled Ethernet controller device with an internal MAC and PHY that provides integrated communication and synchronization for a range of industrial Ethernet applications.

The KSZ8441 product enables end-point connection in a centralized topology. A flexible 8-bit or 16-bit interface is provided for interfacing to an external host processor.

The KSZ8441 devices incorporate the IEEE 1588v2 protocol. Sub-microsecond synchronization is available via the use of hardware-based time stamping and transparent clocks making it the ideal solution for time-synchronized layer 2 communication in critical industrial applications. Extensive general purpose input/output (GPIO) capabilities are available to use with the IEEE 1588v2 PTP to efficiently and accurately interface to locally-connected devices. Complementing the industry’s most integrated IEEE 1588v2 device is a precision timing protocol (PTP) v2 software stack that has been pre-qualified with the KSZ84xx product family. The PTP stack has been optimized around the KSZ84xx chip architecture, and is available in source code format along with Microchip's chip driver.

The KSZ8441 is built upon Microchip's industry-leading Ethernet technology, with features designed-to-offload host processing and streamline overall design, including:

• 1 integrated 10/100BASE-TX PHY transceiver, featuring the industry’s lowest power consumption
• Flexible management options that support common standard interfaces
• A robust assortment of power management features including energy-efficient Ethernet (EEE) have been designed in to satisfy energy-efficient environments

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
    • Management Capabilities
    • Robust Ethernet PHY Port
    • Ethernet MAC
    • Comprehensive Configuration Registers Access
    • IEEE1588v2 PTP and Clock Synchronization
    • Host Interface
    • Power and Power Management
Parametrics
Name
Value
Description
10/100 Ethernet Controller w/ Generic 8 or 16-bit Interface 1588v2
Ethernet Bandwidth
10/100Mbps / FX
MAC
Yes
PHY
Yes
TX/RX RAM Buffer(Bytes)
12KB(RX) 6KB(TX)
Interrupt Pin
1
LEDs
2
# Ethernet Ports
Ethernet x1
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
Checksum Offload
yes
# of Ether Ports
1
Copper Support
10/100
Fiber Support
Yes
Interface
8-bit or 16-bit
Buffer size Rx (KB)
12
Buffer size Tx (KB)
6
Supply voltage (V)
3.3
Internal LDO
Yes
Vdd I/O (V)
1.8/2.5/3.3
LinkMD Cable Diag
Yes
Temp Range
-40 to 85
Int Term
Yes
WOL
Yes
Largets Pkt-Size Bytes
2000
IPV6
Yes
Flow Ctrl
Yes

Documents

Jump to:

Errata

IBIS

10/17/2016
284KB

Development Environment

  • Software Libraries
Software Libraries
Dev Guide and App notes for KSZ/Micrel 1588/PTP Switches

Learn More
KSZ8462 Linux driver for revision 3.14 tared

KSZ8462 Linux driver for revision 3.14 tared

Learn More
KSZ8462 Linux driver for revision 3.18 tared

KSZ8462 Linux driver for revision 3.18 tared

Learn More
KSZ8462 Linux driver for revision 3.3 tared

KSZ8462 Linux driver for revision 3.3 tared

Learn More
Switch usage guide for Micrel and KSZ products

Learn More
User Guide for KSZ/Micrel PTP Utilities

Learn More

Similar Devices

Product
Ethernet Bandwidth
Interface
Price 5K
10Mbps
SPI
$2.03
10/100Mbps
SPI, Parallel
$2.60
10/100Mbps
SPI, Parallel
$2.81
10/100Mbps / FX
8-bit or 16-bit
$3.97
10/100Mbps
8-bit or 16-bit
$13.42
10/100Mbps
8/16/32-bit, MII
$7.99
10/100Mbps
8/16/32-bit
$5.36
10/100Mbps
8-/16-/32-bit or SPI
$2.42
10/100/1000Mbps
8/16-bit
$18.27
10/100Mbps
32 bit Host Bus
$18.24
10/100Mbps
HSIC
$5.87
10/100Mbps
16 bit Host Bus
$6.18
10/100Mbps
16-bit or 32-bit
$8.26
10/100Mbps
16 bit Host Bus
$8.43
10/100Mbps
16-bit or 32-bit
$13.48
10/100Mbps
16-bit or 32-bit

10/100Mbps
16 bit PCMCIA and Host Bus

10/100Mbps
16-bit or 32-bit
$16.55
10Mbps
16 bit PCMCIA and Host Bus
$11.03
10/100Mbps
16 bit Host Bus
$5.20
10/100Mbps
16 bit
$6.26
10/100Mbps
16 bit Host Bus, MII
$7.42
10/100Mbps
16 bit Host Bus, MII
$10.67
10/100Mbps
32 bit Host Bus
$13.37
10/100Mbps
16 bit Host Bus
$3.74
10/100Mbps
16 bit Host Bus
$4.67
10/100Mbps
8/16-bit Host Bus or SPI
$3.87
10/100Mbps
32 bit PCI 3.0
$3.02

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
KSZ8441HLI
0.360600
1.350000
64
LQFP
10x10x1.4mm
Matte Tin
e3
KSZ8441FHLI
0.360600
1.350000
64
LQFP
10x10x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
