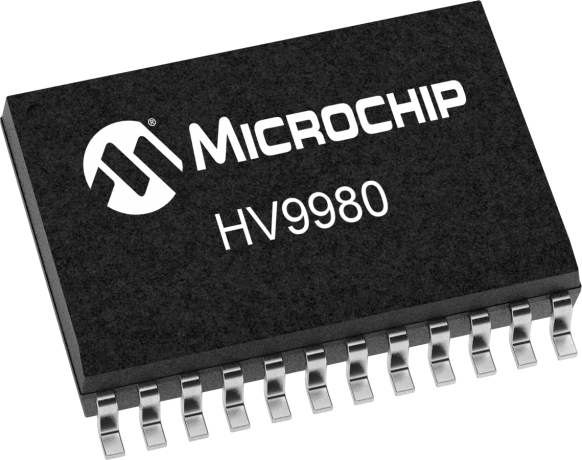

product primary image

HV9980

3-Channel LED ARRAY Driver IC

Status: In Production

Features:

  • Integrated 200V, 25Ω (typ.) MOSFETs
  • Programmable output current to 80mA per channel
  • TTL compatible PWM dimming inputs
  • 3-Phase synchronous operation
  • Leading edge blanking
  • Short circuit protection with skip mode
  • Over-temperature protection
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The HV9980 is a fully integrated 3-channel peak-current PWM controller for driving buck converters in constant output current mode. It is optimized for use with a large array of 20~80mA LED strings, where multiple HV9980 ICs are used sharing a common clock and a common reference voltage. Both the clock and the voltage reference are external to the HV9980 for improved output current accuracy and uniform illumination. The output currents are programmed by controlling peak source current in each of the three internal 200V, 25Ω switching MOSFETs. The peak current is detected by monitoring voltage at external sense resistors connected to RSENSE1-3. The switching MOSFET is turned off when the corresponding current sense signal exceeds the reference voltage applied at REF1-3 (in the case of normal output signal polarity). Beginning of the next switching cycle is determined by the external clock signal received at the CLK input. All three channels operate at a switching frequency of 1/6 of the external clock frequency and positioned 120º out-of-phase for the purpose of input and output ripple current reduction. Each channel is protected from an output short circuit condition. When an over-current condition is detected in the output switch (RSENSE1-3), the corresponding channel shuts down for 200us. HV9980 recovers automatically, when the short circuit condition is removed. Each current sense input (CS1-CS3) is equipped with a leading edge blanking delay to prevent false triggering of the current sense comparators due to circuit parasitics. Over-temperature protection is included to prevent destructive failures due to over-heating. Programmable slope compensation is available at each CS input. AGND and PGND1-3 must be tied together on the printed circuit board. VDD1-3 must be also connected together on the PCB.

Additional Features
  • Integrated 200V, 25Ω (typ.) MOSFETs
  • Programmable output current to 80mA per channel
  • TTL compatible PWM dimming inputs
  • 3-Phase synchronous operation
  • Leading edge blanking
  • Short circuit protection with skip mode
  • Over-temperature protection
Parametrics
Name
Value
Topology
Buck
+Vin min (V)
100
+Vin max (V)
160
Output Current
70mA
Dimming
PWM / Linear
Package
SOW-24

Documents

Jump to:

User Guides

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
HV9980DB1 Demo Board
HV9980DB1 Demo Board ( HV9980DB1 )

The HV9980B1 demoboard is an RGB or multi-channel white LED backlight driver designed to drive LEDs for a large-screen TV. The HV9980DB1 can drive three common-anode LED strings from a 100 - 140V input at currents up to 70mA in steady state. It can also drive the LEDs at currents as large as 160mA for short durations to facilitate backlight scanning mode.  Each of the three channels can be...

Learn More
Add To Cart

Similar Devices

Product
Topology
+Vin min (V)
+Vin max (V)
Price 5K
Buck
7.0
13.2
$0.35
Boost, SEPIC, Buck-Boost
9.0
250
$0.93
Boost, SEPIC, Buck-Boost
9.0
100
$0.99
Boost, SEPIC, Buck-Boost
8.0
40
$0.67
Buck
8.0
60
$0.67
Buck
100
160
$1.38
Boost, SEPIC
10
40
$2.43
Boost, SEPIC, Buck
10
40
$1.60
Boost, SEPIC
10
40
$3.07
Boost
0.9
15
$0.62
Boost
2.5
10
$0.60
Boost
2.5
10
$0.48
Boost
2.5
10
$0.74
Boost
2.5
10
$0.84
Boost
2.5
10
$0.78
Boost
2.5
10
$0.83
Boost
2.5
10
$0.80
Boost
2.5
10
$0.88
Boost
2.5
10
$0.83
Boost
2.5
10
$0.89
Boost
2.5
10
$1.63
Boost
2.5
10
$1.69
Boost
4.5
20
$1.48
Boost
6
40
$2.24
Boost
2.8
6.5
$0.54
Boost
2.5
6.5
$0.85

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
HV9980WG-G
0.662000
1.000000
24
SOIC
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
