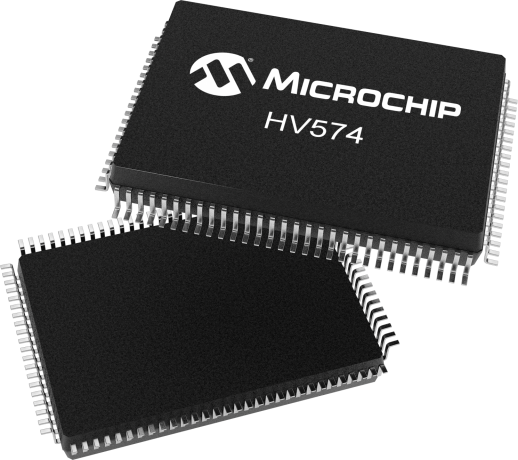

product primary image

HV574

80-Channel, Serial to Parallel Converter w/ Push-Pull Outputs

Status: In Production

Features:

  • HVCMOS® technology
  • 5.0V CMS Logic
  • Output voltage up to 80V
  • Low power level shifting
  • 100MHz equivalent data rate using four dynamic shift registers
  • Latched data outputs
  • Foreward and reverse shifting options (DIR pin)
  • Diode to VPP allows efficient power recovery
  • Outputs may be hot switched
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The HV574 is a low-voltage serial to high-voltage parallel con-verter with push-pull outputs. This device has been designed for use as a driver for printer applications. It can also be used in any application requiring multiple output high-voltage current sour-cing and sinking capability such as driving plasma panels, vacuum fluorescent displays, or large matrix LCD displays. The device has 4 parallel 20-bit dynamic shift registers, permitting data rates 4X the speed of one (they are clocked together). There are 80 static latches and control logic to perform the polarity select and blanking of the outputs. HVOUT1 is connected to the first stage of the first shift register through the polarity and blanking logic. Data is shifted through the shift registers on the logic low to high transition of the clock. The DIR pin causes CCW shifting when connected to GND, and CW shifting when connected to VDD. A data output buffer is provided for cascading devices. This output reflects the current status of the last bit of the shift register (HVOUT80). Operation of the shift register is not affected by the LE (latch enable), BL (blanking), or the POL (polarity) inputs. Transfer of data from the shift registers to the latches occurs when the LE (latch enable) input is high. The data in the latches is stored when LE is low.

Additional Features
  • HVCMOS® technology
  • 5.0V CMS Logic
  • Output voltage up to 80V
  • Low power level shifting
  • 100MHz equivalent data rate using four dynamic shift registers
  • Latched data outputs
  • Foreward and reverse shifting options (DIR pin)
  • Diode to VPP allows efficient power recovery
  • Outputs may be hot switched
Parametrics
Name
Value
Type
Source-Sink
Output Channels
80
Vout (V) operating – Transient
90
Vout (V) Operating - Sustained
80
Iout (mA) per Channel
-3.0, +15
Output Structure
Half-Bridge
Input Structure
Serial
Minimum Data Clock (MHz)
25
General Description
80-CHANNEL, PUSH PULL, 80V
Package
100/PQFP

Documents

Jump to:

Application Notes


Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$14.46
$10.08
$2.51
$3.51
$2.25
$3.81
$3.51
$3.33
$3.33
$4.00
$5.51
$4.45
$4.00
$5.51
$4.45
$6.71
$8.76
$6.07
$6.67
$1.60
$11.95
$8.45
$2.06
$1.49
$7.11
$8.52
$13.48
$3.00
$3.00
$3.00
$1.09
$0.84
$1.67
$1.39
$1.17
$1.49
$1.50
$1.07
$3.39
$3.11
$3.24
$3.30

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
HV574PG-G
1.697030
3.787879
100
PQFP
20x14x3.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
