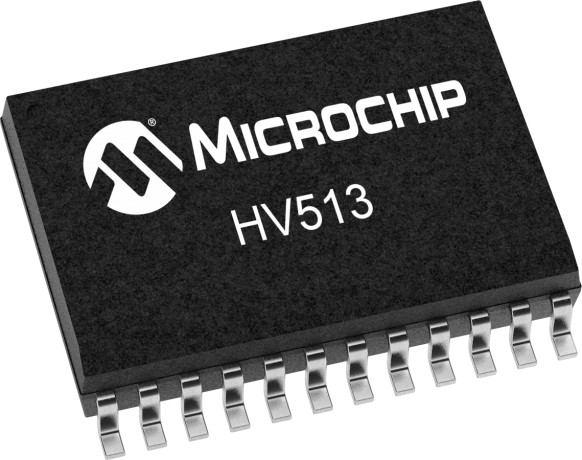

HV513

HVCMOS, 8-Channel S-P Converter, w/Push-Pull Outputs, 250V

Status: In Production

Features:

  • HVCMOS® technology
  • Operating output voltage of 250V
  • Low power level shifting from 5.0 to 250V
  • Shift register speed 8.0MHz @ VDD = 5.0V
  • 8 latch data outputs
  • Output polarity and blanking
  • Output short circuit detect
  • Output high-Z control
  • CMOS compatible inputs
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The HV513 is a low voltage serial to high voltage parallel converter with 8 high voltage push-pull outputs. This device has been designed to drive small capacitve loads such as piezoelectric transducers. It can also be used in any application requiring multiple high voltage outputs, with medium current source and sink capabilities. The device consists of an 8-bit shift register, 8 latches, and control logic to perform the polarity select and blanking of the outputs. Data is shifted through the shift register on the low to high transition of the clock. A data output buffer is provided for cascading devices. Operation of the shift register is not affected by the LE, BL, POL, or the HI-Z control inputs. Transfer of data from the shift register to the latch occurs when the LE is high. The data in the latch is stored when LE is low. A high-Z (HI-Z) pin is provided to set all the outputs in a high-Z state. All outputs have short circuit protection that detects if the outputs have reached the required output state. If output does not track the required state, then the SHORT pin will be low. This output will pulse low during the output transistion period under normal operation; see SC Timing Diagram for details. All outputs will have a break-before-make circuitry to reduce cross-over current during output state changes. The POL, BL, LE, and HI-Z inputs have an internal pull up resistor.

Additional Features
  • HVCMOS® technology
  • Operating output voltage of 250V
  • Low power level shifting from 5.0 to 250V
  • Shift register speed 8.0MHz @ VDD = 5.0V
  • 8 latch data outputs
  • Output polarity and blanking
  • Output short circuit detect
  • Output high-Z control
  • CMOS compatible inputs
Parametrics
Name
Value
Type
Source-Sink
Output Channels
8
Vout (V) operating – Transient
275
Vout (V) Operating - Sustained
250
Iout (mA) per Channel
±20
Output Structure
Half-Bridge
Input Structure
Serial
Minimum Data Clock (MHz)
8
General Description
HVCMOS , 8-CHANNEL, W/PUSH-PULL OUTPUTS, 250V
Package
24/SOIC 300mil 32/WQFN

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$14.46
$10.08
$2.51
$3.51
$2.25
$3.81
$3.51
$3.33
$3.33
$4.00
$5.51
$4.45
$4.00
$5.51
$4.45
$6.71
$8.76
$6.07
$6.67
$1.60
$11.95
$8.45
$2.06
$1.49
$7.11
$8.52
$13.48
$3.00
$3.00
$3.00
$1.09
$0.84
$1.67
$1.39
$1.17
$1.49
$1.50
$1.07
$3.39
$3.11
$3.24
$3.30

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
HV513K7-G
0.082920
0.469388
32
WQFN
6x6x0.8mm
Matte Tin
e3
HV513WG-G
0.662000
1.000000
24
SOIC
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
