Status: In Production

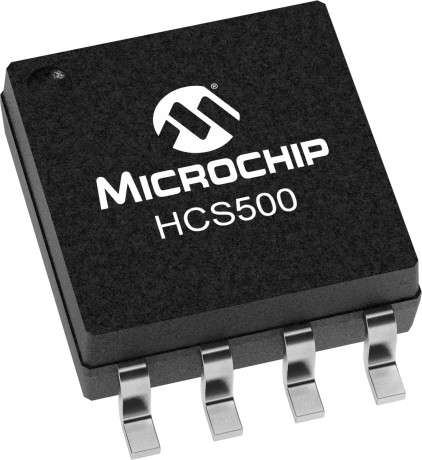

The HSC500 is a code hopping decoder designed for secure Remote Keyless Entry (RKE) systems. The HCS500 utilizes the patented KEELOQ® code-hopping system and high security learning mechanisms to make this a canned solution when used with the HCS encoders to implement unidirectional remote and access control systems. The HCS500 can be used as a stand-alone decoder or in conjunction with a microcontroller through a serial interface. The manufacturer’s code, encoder keys, and synchronization information are stored in encrypted form in external EEPROM. The HCS500 operates over a wide voltage range of 3.0 volts to 5.5 volts. The decoder employs automatic bit-rate detection, which allows it to compensate for wide variations in transmitter data rate. Sophisticated error checking algorithms are built in to ensure only valid codes are accepted. Typical applications include automotive remote entry systems, automotive alarm systems, automotive immobilizers, gate and garage openers, electronic door locks, identity tokens and burglar alarms. HCS500 is available in 8-pin DIP/SOIC packages.
MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of
The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).
For pricing and availability, contact Microchip Local Sales.
