Status: In Production

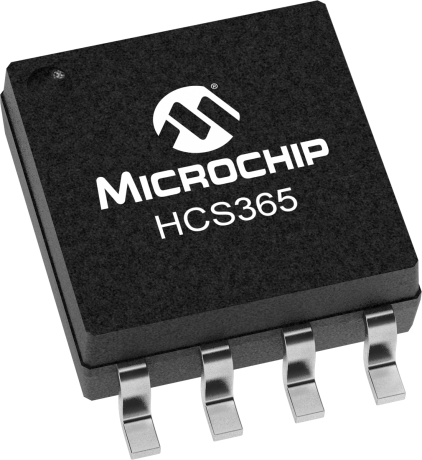

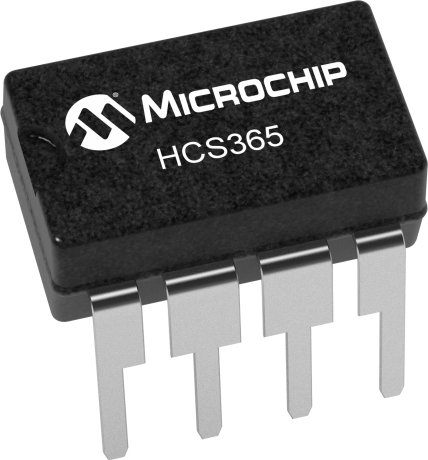

The HCS365 is a code hopping encoder designed for secure Remote Keyless Entry (RKE) systems. The HCS365 utilizes Microchip’s patented KEELOQ® hopping technology, which incorporates high security, a small package outline, and low cost, to make this device a perfect solution for unidirectional remote keyless entry systems and access control systems. The HCS365 combines a 32-bit hopping code generated by a non-linear encryption algorithm, with a 28/32-bit serial number and 5/3 status bits to create a 69-bit transmission stream. The length of the transmission eliminates the threat of code scanning and the code hopping mechanism makes each transmission unique, thus rendering code capture and re-send (code grabbing) schemes useless. The encoder key, serial number, and configuration data are stored in EEPROM, which is not accessible via any external connection. This makes the HCS365 a very secure unit. The HCS365 provides an easy-to-use serial interface for programming the necessary security keys, system parameters, and configuration data. The HCS365 operates over a wide voltage range of 2.05V to 5.5V and has four button inputs in an 8-pin configuration. This allows the system designer the freedom to utilize up to 15 functions. Additional features include a PWM, VPWM, PPM, Manchester encoding, an internal tunable oscillator, Dual encoder operation, PLL interface and a Queue counter.
MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of
MPLAB® PM3 Universal Device Programmer no longer supports all PIC MCU devices. To see if your device is supported, input your device part number here: https://www.microchip.com/wwwproducts/DevTool/
Alternate products to use for production programming for all PIC devices are:
For pricing and availability, contact Microchip Local Sales.
