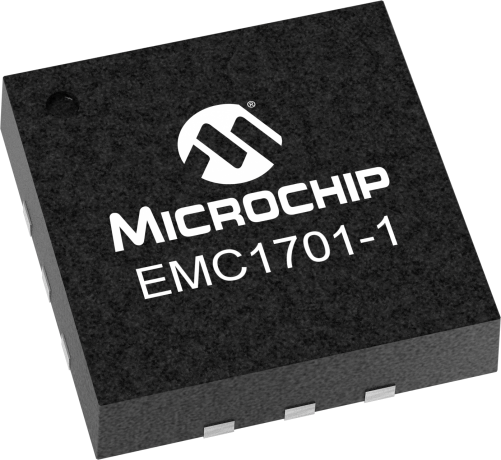

product primary image

EMC1701-1

Status: Samples Available

Features:

  • Bi-directional current measurement
  • Measures bus voltage
  • 1% current measurement accuracy
  • Integrated over 82ms to 2.6sec with 11-bit resolution
  • 3V to 24V voltage bus voltage range
  • Calculates proportional power
  • Software controls to program time duration and magnitude threshold
  • Bus or separately powered for low voltage operation
  • Wide temperature operating range: -40°C to +85°C
  • ±1°C accuracy (-5°C < TA < 85°C)
  • ALERT# and THERM# outputs for temperature, voltage, and out-of-current limit reporting
  • Pin-selectable SMBus Address
  • Block Read and Write
  • Available in a 12-pin 4mm x 4mm QFN RoHS Compliant Package (EMC1701-1)
  • Available in a 10-pin MSOP RoHS Compliant Package (EMC1701-2)
  • Notebook and Desktop Computers
  • Industrial
  • Power Management Systems
  • Embedded Applications
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The EMC1701 is a combination high-side current sensing device with precision temperature measurement. It measures the voltage developed across an external sense resistor to represent the high-side current of a battery or voltage regulator. The EMC1701 also measures the bus voltage and uses these measured values to present a proportional power calculation. The EMC1701 contains additional bi-directional peak detection circuitry to flag instantaneous current spikes with programmable time duration and magnitude threshold. Finally, the EMC1701 includes an internal diode channel for ambient temperature measurement.

Both current sensing and temperature monitoring include two tiers of protection: one that can be masked and causes the ALERT# pin to be asserted, and the other that cannot be masked and causes the THERM# pin to be asserted.

Additional Features

    Features

    • High-side current sensor
      • Bi-directional current measurement
      • Measures bus voltage
      • 1% current measurement accuracy
      • Integrated over 82ms to 2.6sec with 11-bit resolution
      • 3V to 24V voltage bus voltage range
    • Calculates proportional power
    • Independent hardware set instantaneous current peak detector (EMC1701-1 only)
      • Software controls to program time duration and magnitude threshold
    • Power supply options
      • Bus or separately powered for low voltage operation
    • Wide temperature operating range: -40°C to +85°C
    • Internal temperature monitor
      • ±1°C accuracy (-5°C < TA < 85°C)
    • ALERT# and THERM# outputs for temperature, voltage, and out-of-current limit reporting
    • I2C/SMBus 2.0 interface
      • Pin-selectable SMBus Address
      • Block Read and Write
    • Available in a 12-pin 4mm x 4mm QFN RoHS Compliant Package (EMC1701-1)
    • Available in a 10-pin MSOP RoHS Compliant Package (EMC1701-2)

    Applications

    • Notebook and Desktop Computers
    • Industrial
    • Power Management Systems
    • Embedded Applications
Parametrics
Name
Value
Description
Current/DC Power Sensor with Temperature Monitoring
Vsense min FSR (mV)
-10, -20, -40, -80
Vsense max FSR (mV)
10, 20, 40, 80
Vsense accuracy (% FSR, max)
0.9
Vbus Range min (V)
3
Vbus Range max (V)
24
Vbus accuracy (% FSR, max)
0.05
Sampling Interval min (msec)
2.5
Sampling Interval max (msec)
2600
Remote Temperature Monitors
3
# Ambient Temperature Monitors
1
Temperature Accuracy Typical (&deg;)
0.25
Temperature Accuracy Max (&deg;)
1
Alert/Therm
2
Peak Detection
Hardware
Interface
SMBus/I2C
Address Select
8

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Description
Full Scale Range (mV)
Bus Voltage Range (V)
Price 5K
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$0.76
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$0.65
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$0.85
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24

Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$1.03
Current/DC Power Sensor
10, 20, 40, 80
0 to +40
$0.56
Dual Current/DC Power Sensor
10, 20, 40, 80
0 to +40
$0.79
Current/DC Power Sensor
100
0 to +32
$0.67
Dual DC Power/Energy Monitor with Accumulator
100
0 to +32
$0.79
Triple DC Power/Energy Monitor with Accumulator
100
0 to +32
$0.96
Quad DC Power/Energy Monitor with Accumulator
100
0 to +32
$1.12

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
EMC1701-1-KP-TR
0.025400
0.139394
12
QFN
4x4x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
