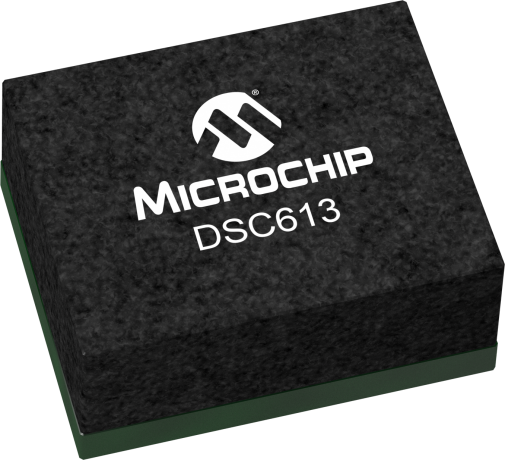

product primary image

DSC613

3-Output Low Power MEMS Clock Generator

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The DSC613 family of devices is industry’s smallest MEMS clock generator that can replace up to three crystals and oscillators on a board, reducing timing component board space by up to 80 percent. The clock generator eliminates the need for an external crystal by integrating the low power and high stability Micro-Electro-Mechanical Systems (MEMS) resonator. The family includes two low power fractional PLLs that provide leading frequency flexibility and robust jitter performance. Customer can configure output frequency, control pin function, package size, PPM accuracy and temperature range. Up to three output drive strengths are available based on the custom board loading condition. Spread-Spectrum clocks are also available for EMI reduction.

The DSC613 is a highly configurable device and is factory programmed to meet the customer’s needs. Please go to ClockWorks Configurator  to configure the output frequencies and control functions,  generate custom part number and data sheet, and order samples.

Additional Features
  • Supports 3 LVCMOS clock outputs from 2kHz to 100MHz
  • Integrated MEMS resonator eliminates the need of external crystal
  • Low power consumption: 5.2mA active, 1 µA standby current
  • Wide supply voltage range: 1.71V -3.63V
  • Ultra-small package size: 1.6mm x 1.2mm, 2.0mm x 1.6mm, 2.5mm x 2.0mm
  • High frequency stability: ±20ppm, ±25ppm, ±50ppm
  • Supports wide temperature range: -40 to +125ºC
  • Flexible control functions: Output Enable, Standby, SLEEP, Frequency Select, SpreadSpectrum Enable
  • Supports 3 output drive strength and Spread Spectrum clock for EMI reduction
  • Excellent shock and vibration immunity
  • High reliability
  • Lead free and RoHS compliant
  • AEC-Q100 automotive grade available
Parametrics
Name
Value
Product Type
Low Power Clock Generators
# of Outputs
3
Voltage
1.71 - 3.63
Output Logic
LVCMOS
Output Frequency Min. (MHz)
0.002
Output Frequency Max. (MHz)
100

Documents

Jump to:

Data Sheet

10/30/2018
878KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
DSC613RI3A-010U
0.021429
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC613RI3A-010UT
0.046667
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC613RI3A-010UB
0.046667
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC613RA2A-0106
0.021429
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC613RA2A-0106T
0.046667
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC613RA2A-0106B
0.046667
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC613RI2A-012S
0.021429
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC613RI2A-012ST
0.046667
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC613PI3A-0105
0.060000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC613PI3A-0105T
0.035000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC613PI3A-0105B
0.035000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC613PL3A-0106
0.060000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC613PL3A-0106T
0.035000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC613PL3A-0106B
0.035000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC613NI3A-0105
0.060000
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC613NI3A-0105T
0.036667
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC613NI3A-0105B
0.036667
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC613NI2A-0106
0.060000
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC613NI2A-0106T
0.036667
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC613NI2A-0106B
0.036667
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
