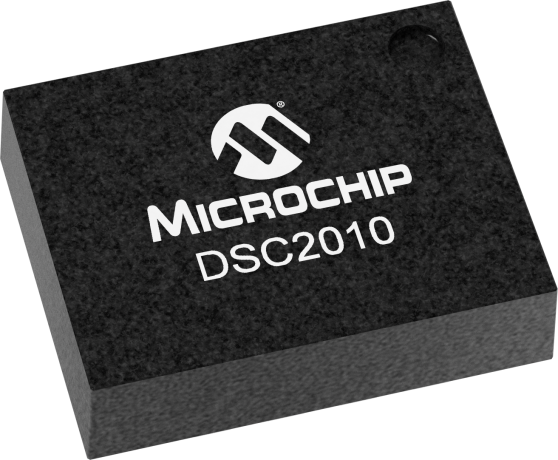

DSC2010

Low Jitter MEMS oscillator with freq. select

Status: In Production

Features:

  • Low RMS Phase Jitter: <1 ps (typ.)
  • High Stability: ±10, ±25, ±50 ppm
  • Automotive: -55°C to 125°C
  • Ext. Industrial: -40°C to 105°C
  • Industrial: -40°C to 85°C
  • Ext. Commercial: -20°C to 70°C
  • High Supply Noise Rejection: -50dBc
  • 3-bit Output Drive Strength
  • 2-bit Output Frequency Combinations
  • Short Lead Times: 2 Weeks
  • CMOS Output: 2.3 to 170MHz
  • Miniature Footprint of 3.2mm x 2.5mm
  • Qualified to MIL-STD-883
  • 20x better MTF than quartz oscillators
  • Lead Free and RoHS Compliant
  • Supply Range of 2.25V to 3.6V
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The DSC2010 series of high performance CMOS oscillators utilize a proven silicon MEMS technology to provide excellent jitter and stability while incorporating additional device functionality. The DSC2010 allows the user to easily modify the frequency and drive strength of the oscillator using pins. The DSC2010 has provision for up to four user-defined pre-programmed, pin-selectable output frequencies, and eight pin-selectable output drive levels to help reduce EMI.DSC2010 is packaged in a 14-pin 3.2mm x 2.5mm QFN package and available in temperature grades from Ext. Commercial to Automotive.

Additional Features
    • Low RMS Phase Jitter: <1 ps (typ.)
    • High Stability: ±10, ±25, ±50 ppm
    • Wide Temperature Range
      • Automotive: -55°C to 125°C
      • Ext. Industrial: -40°C to 105°C
      • Industrial: -40°C to 85°C
      • Ext. Commercial: -20°C to 70°C
    • High Supply Noise Rejection: -50dBc
    • Pin-Selectable Configurations:
      • 3-bit Output Drive Strength
      • 2-bit Output Frequency Combinations
    • Short Lead Times: 2 Weeks
    • Wide Freq. Range:
      • CMOS Output: 2.3 to 170MHz
    • Miniature Footprint of 3.2mm x 2.5mm
    • Excellent Shock & Vibration Immunity
      • Qualified to MIL-STD-883
    • High Reliability
      • 20x better MTF than quartz oscillators
    • Lead Free and RoHS Compliant
    • Supply Range of 2.25V to 3.6V
Parametrics
Name
Value
Sub Group 1
Low Jitter
Input Type
Integrated MEMS
Supply Voltage (V)
2.25 to 3.63
Output Type
CMOS
Output Frequency Min (MHz)
2.3
Output Frequency Max (MHz)
170
# of Outputs
1
Phase Jitter
1.7 ps
Output Logic
LVCMOS

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
DSC2010FI2-B0009T
0.019500
0.090000
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC2010FI2-B0015
0.019500
0.042664
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
