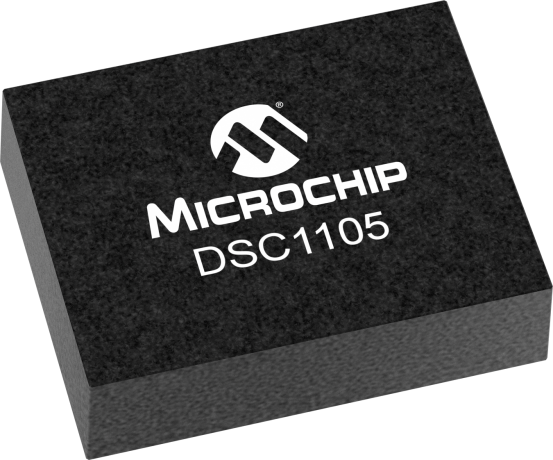

product primary image

DSC1105

Status: In Production

Features:

  • Low Drive Strength for EMI Reduction
  • Low RMS Phase Jitter: <1 ps (typ.)
  • High Stability: ±10 ppm, ±20 ppm, ±25 ppm, ±50 ppm
  • Automotive: –55°C to +125°C
  • Ext. Industrial: –40°C to +105°C
  • Industrial: –40°C to +85°C
  • Commercial: –20°C to +70°C
  • High Supply Noise Rejection: –50 dBc
  • Wide Freq. Range: 2.3 MHz to 100 MHz
  • Small Industry Standard Footprints - 2.5 mm x 2.0 mm, 3.2 mm x 2.5 mm, 5.0 mm x 3.2 mm, and 7.0 mm x 5.0 mm
  • Excellent Shock and Vibration Immunity - Qualified to MIL-STD-883
  • High Reliability - 20x Better MTF than Quartz Oscillators
  • Low Current Consumption
  • Supply Range of 2.25 to 3.6V
  • Standby Function
  • Lead-Free and RoHS Compliant
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The DSC1104 & DSC1124 series of high performance oscillators utilizes a proven silicon MEMS technology to provide excellent jitter and stability over a wide range of supply voltages and temperatures. By eliminating the need for quartz or SAW technology, MEMS oscillators significantly enhance reliability and accelerate product development, while meeting stringent clock performance criteria for a variety of communications, storage, and networking applications.DSC1104 has a standby feature allowing it to completely power-down when EN pin is pulled low; whereas for DSC1124, only the outputs are disabled when EN is low. Both oscillators are available in industry standard packages, including the small 3.2mm x 2.5mm, and are “drop-in” replacements for standard 6-pin HCSL quartz crystal oscillators.

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.

Additional Features
    • Low Drive Strength for EMI Reduction
    • Low RMS Phase Jitter: <1 ps (typ.)
    • High Stability: ±10 ppm, ±20 ppm, ±25 ppm, ±50 ppm
    • Wide Temperature Range:
      • Automotive: –55°C to +125°C
      • Ext. Industrial: –40°C to +105°C
      • Industrial: –40°C to +85°C
      • Commercial: –20°C to +70°C
    • High Supply Noise Rejection: –50 dBc
    • Wide Freq. Range: 2.3 MHz to 100 MHz
    • Small Industry Standard Footprints - 2.5 mm x 2.0 mm, 3.2 mm x 2.5 mm, 5.0 mm x 3.2 mm, and 7.0 mm x 5.0 mm
    • Excellent Shock and Vibration Immunity - Qualified to MIL-STD-883
    • High Reliability - 20x Better MTF than Quartz Oscillators
    • Low Current Consumption
    • Supply Range of 2.25 to 3.6V
    • Standby Function
    • Lead-Free and RoHS Compliant
Parametrics
Name
Value
Supply Voltage (V)
2.25 - 3.6
Output Frequency Min (MHz)
2.3
Output Frequency Max (MHz)
100
# of Outputs
1
Phase Jitter
<1 ps
Output Logic
LVCMOS

Documents

Jump to:

Data Sheets

12/07/2017
724KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
DSC1105DL1-027.0000
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1105DL1-027.0000T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
