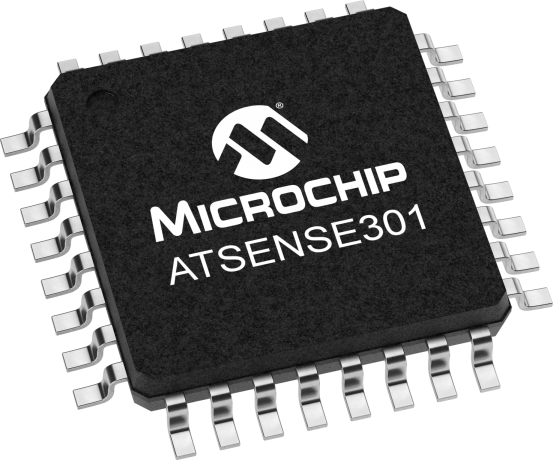

ATSENSE301

Status: In Production

Features:

  • Poly-phase (ATSENSE-301(H)) Energy Metering Analog Front End for Microchip MCUs and Metrology Library
  • Compliant with Class 0.2 Standards (ANSI C12.20-2002 and IEC 62053-22)
  • Seven Sigma-Delta ADC Measurement Channels: Three Voltages, Four Currents, 102 dB Dynamic Range
  • Current Channels with Pre-Gain (x1, x2, x4, x8) Supports Shunt, Current Transformer and Rogowski Coil
  • Dedicated Current Channel for Anti-tamper Measurement
  • Integrated SINC Decimation Filters. Output Data Rate: 16 kSps typical
  • Integrated 2.8V LDO Regulator to Supply Analog Functions
  • 3.0V to 3.6V Operation, Ultra Low Power: < 2.5 mW typical/Channel @ 3.3V
  • Specified over two ambient operating temperature ranges : [-40°C ; +85°C] and [-40°C;+105°C]
  • Standard 1.2V Output Voltage with Possible External Bypass
  • Temperature Drift: 50 ppm typical (ATSENSE-301)
  • Temperature Drift: 10 ppm typical (ATSENSE-301H)
  • Factory-measured Temperature Drift and Die Temperature Sensor to perform Software Correction (ATSENSE-301H)
  • 8.192 MHz Serial Peripheral Interface (SPI) Compatible Mode 1 (8-bit) for ADC Data and AFE Controls
  • Interrupt Output Line Signaling ADC End-of-Conversion, Underrun and Overrun
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

ATSENSE-301(H) are multi-channel analog front end devices which integrate seven simultaneously sampled Sigma-Delta A/D converters, a high-precision voltage reference with up to 10 ppm/ºC temperature stability (H-versions), a programmable current signal amplification, a temperature sensor and an SPI interface. Designed to support energy measurement applications in combination with the Microchip's ATSAM4C device family that features a dedicated Cortex®-M4 processor and metrology library and a variety of sensors including Shunt, Current Transformer and Rogowski coils, the ATSENSE-301(H) achieve ANSI C12.20-2002 and IEC 62053-22 metering accuracy classes of up to 0.2% over 3000:1 current range.

Additional Features
    • Analog Front End
      • Poly-phase (ATSENSE-301(H)) Energy Metering Analog Front End for Microchip MCUs and Metrology Library
      • Compliant with Class 0.2 Standards (ANSI C12.20-2002 and IEC 62053-22)
      • Seven Sigma-Delta ADC Measurement Channels: Three Voltages, Four Currents, 102 dB Dynamic Range
      • Current Channels with Pre-Gain (x1, x2, x4, x8) Supports Shunt, Current Transformer and Rogowski Coil
      • Dedicated Current Channel for Anti-tamper Measurement
      • Integrated SINC Decimation Filters. Output Data Rate: 16 kSps typical
      • Integrated 2.8V LDO Regulator to Supply Analog Functions
      • 3.0V to 3.6V Operation, Ultra Low Power: < 2.5 mW typical/Channel @ 3.3V
      • Specified over two ambient operating temperature ranges : [-40°C ; +85°C] and [-40°C;+105°C]
    • Precision Voltage Reference
      • Standard 1.2V Output Voltage with Possible External Bypass
      • Temperature Drift: 50 ppm typical (ATSENSE-301)
      • Temperature Drift: 10 ppm typical (ATSENSE-301H)
      • Factory-measured Temperature Drift and Die Temperature Sensor to perform Software Correction (ATSENSE-301H)
    • Digital Interface
      • 8.192 MHz Serial Peripheral Interface (SPI) Compatible Mode 1 (8-bit) for ADC Data and AFE Controls
      • Interrupt Output Line Signaling ADC End-of-Conversion, Underrun and Overrun
Parametrics
Name
Value
Dynamic Range
3000:1
Temperature Range (°C)
-40 to 105
Operating Voltage (Vcc)
3 - 3.6
PWM Channels
7
Meter Type
Poly-Phase

Documents

Jump to:

Data Sheets

Brochures

User Guides

12/11/2016
3229KB
12/11/2016
2061KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
M90E2X-DB
M90E2X-DB ( ATM90E2X-DB )

Learn More
Add To Cart
M90E32AS-DB
M90E32AS-DB ( ATM90E32AS-DB )

ATM90E32AS Poly-Phase Energy Metering Demo is used for the demo and testing of ATM90E32AS (poly-phase energy metering AFE chip), which can sample poly-phase voltage and current, meter active/reactive/apparent/fundamental/harmonic energy and output these energy pulses accordingly, as well as measure parameters such as voltage, current and power.

The AFE Control Board - SAM4C communicates

...

Learn More
Add To Cart
M90E36A-DB
M90E36A-DB ( ATM90E36A-DB )

ATM90E36A Poly-Phase Energy Metering Demo is used for the demo and testing of ATM90E36A (poly-phase energy metering AFE chip), which can sample poly-phase voltage and current, meter active/reactive/apparent/fundamental/harmonic energy and output these energy pulses accordingly, as well as measure parameters such as voltage, current and power.

The AFE Control Board - SAM4C communicates

...

Learn More
Add To Cart
SAM4C32 Evaluation Kit
SAM4C32 Evaluation Kit ( ATSAM4C32-EK )

The ATSAM4C32-EK lets designers quickly evaluate and develop code for smart energy applications built around two high performance 32-bit ARM® Cortex® -M4 RISC processors. The SAM4C32 Evaluation Kit is ideal for fast getting started using the Dual Cortex M4 architecture. It allows evaluating the performances and low-power mode, anti-tampering and Cryptographic functions. The board is

...

Learn More
Add To Cart
SAM4C Evaluation Kit
SAM4C Evaluation Kit ( ATSAM4C-EK )

This kit lets designers quickly evaluate and develop code for smart energy applications built around two high performance 32-bit ARM® Cortex®-M4 RISC processors. The SAM4C Evalution Kit is ideal for fast getting started using the Dual Cortex M4 architecture. It allows evaluating the performances and low-power mode, anti-tampering and Cryptographic functions. The board is equipped with...

Learn More
Add To Cart
SAM4CMP32-DB
SAM4CMP32-DB ( ATSAM4CMP32-DB )

The ATSAM4CMP32-DB demonstration board uses ATSAM4CMP32C to demonstrate the high accuracy poly-phase energy metering functions. The ATSAM4CMP32C is an integrated poly-phase Energy Metering SoC with 120MHz, dual-core Cortex-M4 ARM processor cores. The board is ETSI format compliant and is designed to interface with CT, Rogowski and Shunt current sensors. The board can interface with ZigBee and

...

Learn More
Add To Cart
SAM4CMP-DB
SAM4CMP-DB ( ATSAM4CMP-DB )

The SAM4CMP-DB Demonstration Kit uses SAM4CMP16 to demonstrate the high accuracy poly-phase energy metering functions. The SAM4CMP16 is an integrated poly-phase Energy Metering SoC with 100MHz, dual-core Cortex-M4 ARM processor cores. The board is ETSI format compliant and is designed to interface with CT, Rogowski and Shunt current sensors. The board can interface with ZigBee and PLC...

Learn More
Add To Cart
SAM4CMS32-DB
SAM4CMS32-DB ( ATSAM4CMS32-DB )

The ATSAM4CMS32-DB demonstration board uses ATSAM4CMS32 to demonstrate the high accuracy single-phase energy metering functions. The ATSAM4CMS32 is an integrated single-phase Energy Metering SoC with 100MHz, dual-core Cortex-M4 ARM processor cores. The board is ETSI format compliant and is designed to interface with CT, Rogowski and Shunt current sensors. The board can interface with ZigBee

...

Learn More
Add To Cart
SAM4CMS-DB
SAM4CMS-DB ( ATSAM4CMS-DB )

The SAM4CMS-DB Demonstration Kit uses SAM4CMS16 to demonstrate the high accuracy single-phase energy metering functions. The SAM4CMS16 is an integrated single-phase Energy Metering SoC with 100MHz, dual-core Cortex-M4 ARM processor cores. The board is ETSI format compliant and is designed to interface with CT, Rogowski and Shunt current sensors. The board can interface with ZigBee and PLC...

Learn More
Add To Cart
