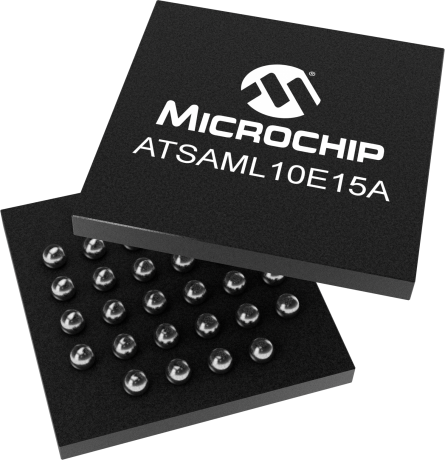

product primary image

ATSAML10E15A

Industry’s lowest power in its class

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

Industry’s first and lowest power  Arm® Cortex®-M23 MCU consuming less than 25 uA/MHz in active mode and less than 100 nA in sleep mode. It features enhanced peripheral touch controller, advanced analog, ISO7816 smart card interface, event system and SleepWalking peripherals. SAML10 achieved EEMBC Certified ULPMark score of 405

Additional Features
  • Processor:
    • ARM Cortex-M23
    • 32 MHz (2.62 CoreMark/MHz and up to 31 DMIPS)
    • Single-cycle hardware multiplier
    • Hardware divider
    • Nested Vector Interrupt Controller (NVIC)
    • Memory Protection Unit (MPU)
  • Operating Voltage Range:
    • 1.62V to 3.63V
  • Memory:
    • 32 KB Flash
    • 8 KB SRAM
    • 2 KB Data Flash section for non-volatile data storage
    • 256 bytes TrustRAM with physical protection features
  • Ultra-Low Power:
    • Active, Idle, Standby with partial or full SRAM retention and off sleep modes
    • Active mode (< 25 μA/MHz)
    • Idle mode (< 10 μA/MHz) with 1.5 μs wake-up time
    • Standby with Full SRAM Retention (0.5 μA) with 5.3 μs wake-up time
    • Off mode (< 100 nA)
  • Enhanced Peripheral Touch Controller (PTC):
    • Driven Shield Plus for moisture tolerance and noise immunity
    • Parallel Acquisition through Polarity control
    • Supports wake-up on touch from Standby Sleep mode
  • Advanced Analog:
    • 12-bit, 1 MSPS Analog-to-Digital Converter (ADC)
    • Analog Comparators (AC) with window compare function
    • 10-bit, 350 KSPS DAC with external and internal outputs
    • Operational Amplifiers
  • Serial Communication Interfaces (SERCOM) that can operate as:
    • USART, I2C, LIN, SPI, ISO7816, RS-485
  • Qualification and Class-B Support:
    • AEC-Q100 REVH (Grade 1 [-40ºC to +125ºC]) (planned)
    • Class-B safety library, IEC 60730 (planned)
  • Temperature options:
    • -40 C to 85 C
    • -40 C to 125 C
  • Development Support:
    • Atmel Studio 7 IDE
    • Atmel START Software Framework
    • Two-pin Serial Wire Debug (SWD) programming and debugging interface
Parametrics
Name
Value
Part Family
SAM L10
Max CPU Speed MHz
32
Program Memory Size (KB)
32
SRAM (KB)
8
Data EEPROM/HEF (Bytes)
2048
Temperature Range (C)
-40 to 125
Operating Voltage Range (V)
1.62 to 3.63
Direct Memory Access Channels
8
SPI
3
I2C
2
Hardware Touch Peripheral
PTC
Water Tolerant Touch
Yes
Driven Shield Plus
Yes
Parallel Acquisition
Yes
Number of Op Amps
3
Peripheral Pin Select / Pin Muxing
Yes
ADC Input
10
Max ADC Resolution (Bits)
12
Max ADC Sampling Rate (ksps)
1000
Number of DACs
1
Input Capture
6
Standalone Output Compare/Standard PWM
6
Max 16-bit Digital Timers
3
Parallel Port
GPIO
Number of Comparators
2
Internal Oscillator
32Khz ULP, 16Mhz
Hardware RTCC/RTC
Yes
Max I/O Pins
25
Pincount
32
Low Power
Yes

Documents

Jump to:

Data Sheet

06/18/2018
8922KB

Application Notes

Download All

Applications Source code

06/21/2018
692KB

Getting Started

06/20/2018
2205KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
QT7 Xplained Pro extension kit
QT7 Xplained Pro extension kit ( ATQT7-XPRO )

Microchip® QT7 Xplained Pro kit is an extension board to evaluate self-capacitance touch - robust, water tolerant to the highest extend.

The kit demonstrates water tolerant touch using driven shield pr Driven Shield+ pending the MCU in use. The kit includes one board with self-capacitance slider and two self-capacitance buttons. Addition it has 8 LEDs enable button state and

...

Learn More
Add To Cart
I/O1 Xplained Pro extension kit
I/O1 Xplained Pro extension kit ( ATIO1-XPRO )

I/O1 Xplained Pro provides a light sensor, temperature sensor, and microSD card. It connects to the extension headers of any Xplained Pro Evaluation Kit.

Learn More
Add To Cart
SAM L10 Xplained Pro
SAM L10 Xplained Pro ( DM320204 )

The SAM L10 Xplained Pro evaluation kit is ideal for evaluating and prototyping with the ultra low power SAML10 ARM® Cortex®-M23 based microcontrollers. The SAM L10  MCU features general purpose embedded control capabilities with enhanced peripheral touch controller and advanced analog.

The kit is supported by various demo examples which includes water tolerant touch,

...

Learn More
Add To Cart
SAM-ICE
SAM-ICE ( AT91SAM-ICE )

SAM-ICE is a JTAG emulator designed for SAMA5, SAM3, SAM4, SAM7 and SAM9 ARM® core-based MCUs and MPUs, including Thumb mode. It supports download speeds up to 720K Bytes per second and maximum JTAG speeds up to 12 MHZ. It also supports Serial Wire Debug (SWD) and Serial Wire Viewer (SWV) from SAM-ICE hardware V6.

Learn More
Add To Cart
Power Debugger kit
Power Debugger kit ( ATPOWERDEBUGGER )

Power Debugger is a powerful development tool for debugging and programming AVR microcontrollers using UPDI, JTAG, PDI, debugWIRE, aWire, TPI or SPI target interfaces and ARM® Cortex®-M based SAM microcontrollers using JTAG or SWD target interfaces.

In addition the Power Debugger has two independent current sensing channels for measuring and optimizing the power consumption of

...

Learn More
Add To Cart
QT2 Xplained Pro extension kit
QT2 Xplained Pro extension kit ( ATQT2-XPRO )

QT2 Xplained Pro is a QTouch Surface extension board for Xplained Pro boards that demonstrates the Peripheral Touch Controller (PTC) as a high performance touch-surface controller. The PTC controller uses very little power and resources from the MCU, which makes it easy to integrate touch surface support to your main project.

Learn More
Add To Cart
QT3 Xplained Pro extension kit
QT3 Xplained Pro extension kit ( ATQT3-XPRO )

QT3 Xplained Pro is a QTouch keypad extension board demonstrating an ultra-low power keypad design using the Peripheral Touch Controller (PTC). Utilizing the PTCs low power capabilities it enables markets lowest power wake-up on touch.

Note: QT3 Xplained Pro requires a compatible Xplained Pro evaluation kit. See the Related Tools tab for supported models.

Learn More
Add To Cart
QT5 Xplained Pro extension kit
QT5 Xplained Pro extension kit ( ATQT5-XPRO )

QT5 Xplained Pro is an extension kit that enables evaluation of mutual capacitance touch using the Peripheral Touch Controller (PTC). The kit shows how easy it is to design a nice looking capacitive touch interface using the PTC module. The kit includes one board with a curved QTouch mutual capacitance slider and two QTouch mutual capacitance buttons. In addition the board has 16 LEDs arranged as...

Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
RAM (B)
Price 5K
Notes
24
16
4,096
$1.14

24
32
8,192
$1.19

24
64
16,384
$1.31

32
16
4,096
$1.17

32
32
8,192
$1.22

32
64
16,384
$1.33


RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATSAML10E15A-AU
0.338300
0.800000
32
TQFP
7x7x1mm
Matte Tin
e3
ATSAML10E15A-AUT
0.338300
0.497500
32
TQFP
7x7x1mm
Matte Tin
e3
ATSAML10E15A-AF
0.338300
0.800000
32
TQFP
7x7x1mm
Matte Tin
e3
ATSAML10E15A-AFT
0.338300
0.497500
32
TQFP
7x7x1mm
Matte Tin
e3
ATSAML10E15A-MU
0.068700
0.408163
32
VQFN
5x5x1mm
Matte Tin
e3
ATSAML10E15A-MUT
0.068700
0.531000
32
VQFN
5x5x1mm
Matte Tin
e3
ATSAML10E15A-MF
0.068700
0.408163
32
VQFN
5x5x1mm
Matte Tin
e3
ATSAML10E15A-MFT
0.068700
0.531000
32
VQFN
5x5x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
