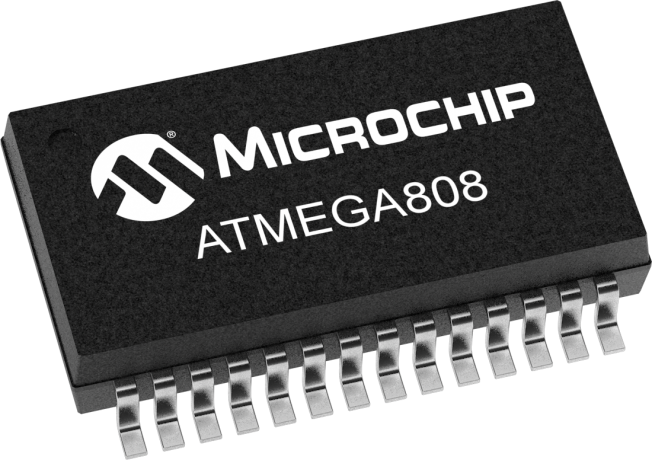

ATMEGA808

Status: Future Product

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The ATmega808 is a microcontroller featuring the 8-bit AVR®  processor with hardware multiplier - running at up to 20MHz and with up to 8 KB Flash, 1 KB SRAM and 256 bytes of EEPROM in 28- and 32-pin packages. The series uses the latest Core Independent Peripherals with low power features.  Including Event System, intelligent analog and advanced peripherals.

megaAVR 0-series Overview

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
8
CPU Speed (MIPS/DMIPS)
20
SRAM Bytes
1,024
Data EEPROM/HEF (bytes)
256
Digital Communication Peripherals
3-UART, 1-SPI, 1-I2C
Capture/Compare/PWM Peripherals
12 Input Capture, 9PWM
Timers
4 x 16-bit
ADC Input
12 ch, 10-bit
Number of Comparators
1
Temperature Range (C)
-40 to 125
Operating Voltage Range (V)
1.8 to 5.5
Pin Count
32

Documents

Jump to:

Application Notes

Download All

Applications Source code

04/13/2018
30KB

Product Document

12/10/2016
2468KB

User Guides

12/10/2016
8594KB
08/02/2017
312KB

White Papers

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
Power Debugger kit
Power Debugger kit ( ATPOWERDEBUGGER )

Power Debugger is a powerful development tool for debugging and programming AVR microcontrollers using UPDI, JTAG, PDI, debugWIRE, aWire, TPI or SPI target interfaces and ARM® Cortex®-M based SAM microcontrollers using JTAG or SWD target interfaces.

In addition the Power Debugger has two independent current sensing channels for measuring and optimizing the power consumption of

...

Learn More
Add To Cart
ATSTK600 Kit
ATSTK600 Kit ( ATSTK600 )

A complete starter kit and development system for the 8-bit and 32-bit AVR microcontrollers that gives designers a quick start to develop code on the AVR, with advanced features for prototyping and testing new designs.

The AVR device connects to the STK600 using an innovative routing and socketcard sandwich system, which routes the signals from the device to the appropriate...

Learn More
Add To Cart
ATmega4809 Curiosity Nano Evaluation kit
ATmega4809 Curiosity Nano Evaluation kit ( DM320115 )

The ATmega4809 Curiosity Nano evaluation kit is a hardware platform to evaluate the ATmega4809 microcontroller.
Supported by the Atmel Studio/Microchip MPLAB X integrated development platform, the kit provides access to the features of the ATmega4809 and explains how to integrate the device into a custom design.

The Curiosity Nano series of evaluation kits include an on-board

...

Learn More
Add To Cart
AVR-IOT WG Evaluation Board
AVR-IOT WG Evaluation Board ( AC164160 )

The AVR-IoT WG development board combines a powerful 8-bit ATmega4808 MCU, an ATECC608A CryptoAuthentication™ secure element IC and the fully certified ATWINC1510 Wi-Fi® network controller - which provides the most simple and effective way to connect your embedded application to Google’s Cloud IoT core platform. The board also includes an on-board debugger, and requires...

Learn More
Add To Cart
ATmega4809-XPRO
ATmega4809-XPRO ( ATMEGA4809-XPRO )

The ATmega4809 Xplained Pro evaluation kit is a hardware platform for evaluating the ATmega4809 AVR® microcontroller (MCU).
Supported by the integrated development platform Atmel Studio, the kit provides easy access to the features of the ATmega4809 to fully understand how to integrate the device into a custom design.

The Xplained Pro MCU series evaluation

...

Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
RAM (B)
Price 5K
Notes
32
16
2,048

Event System and Peripheral Touch Controller
48
16
2,048

Event System and Peripheral Touch Controller
32
32
4,096
$0.87
Event System and Peripheral Touch Controller
48
32
4,096
$1.04
Event System and Peripheral Touch Controller
32
48
6,144
$0.91
Event System and Peripheral Touch Controller
48
48
6,144
$1.09
Event System and Peripheral Touch Controller
32
8
1,024

Event System and Peripheral Touch Controller
48
8
1,024

Event System and Peripheral Touch Controller
