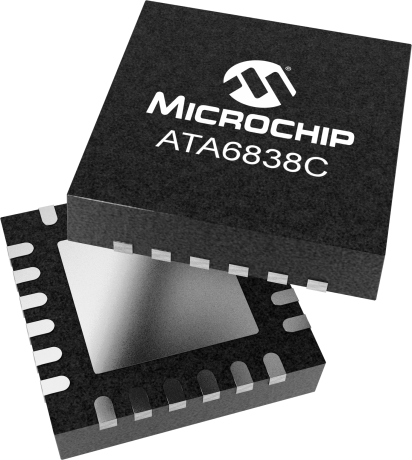

ATA6838C

Hex Half-bridge Driver with SPI Control

Status: In Production

Features:

  • Six half-bridge outputs formed by six high-side and six low-side drivers
  • Capable of switching all kinds of loads (such as DC motors, bulbs, resistors, capacitors and inductors)
  • RDSon typically 1.0Ω at 25°C, maximum 1.8Ω at 150°C
  • Up to 950-mA output current
  • Very low total quiescent current IS < 2μA in standby mode
  • Outputs short-circuit protected
  • Over temperature pre-warning and protection
  • Under voltage protection
  • Various diagnosis functions such as shorted output, open load, over temperature and power supply fail
  • Serial data interface
  • Operation voltage up to 40V
  • Daisy chaining possible
  • Serial interface 5V compatible, up to 2MHz clock frequency
  • QFN24 5mm x 5mm power package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

A fully protected hex half-bridge driver controlling up to six different loads by microcontroller in automotive and industrial applications. It is designed in smart power SOI technology. Each of the six high-side and six low-side drivers is capable of driving currents up to 950mA. The drivers are internally connected to form six half-bridges and can be controlled separately from a standard serial data interface to combine loads from bulbs, resistors, capacitors, and inductors. The IC supports the application of H-bridges to drive DC motors.

Additional Features
    • Six half-bridge outputs formed by six high-side and six low-side drivers
    • Capable of switching all kinds of loads (such as DC motors, bulbs, resistors, capacitors and inductors)
    • RDSon typically 1.0Ω at 25°C, maximum 1.8Ω at 150°C
    • Up to 950-mA output current
    • Very low total quiescent current IS < 2μA in standby mode
    • Outputs short-circuit protected
    • Over temperature pre-warning and protection
    • Under voltage protection
    • Various diagnosis functions such as shorted output, open load, over temperature and power supply fail
    • Serial data interface
    • Operation voltage up to 40V
    • Daisy chaining possible
    • Serial interface 5V compatible, up to 2MHz clock frequency
    • QFN24 5mm x 5mm power package
Parametrics
Name
Value
Operating Voltage Range (V)
7 to 40
Output
MOSFET
Max. Continuous Current per output
0.95
Max. Ron per Output (?)
1.8
Motor Control Methods
SPI
Shutdown Protection
Short Circuit, Overtemperature, Power Supply Fail
Ambient Temperature Range (°C)
-40 to 125
Packages
24/VQFN

Documents

Jump to:

Data Sheets

Supporting Collateral

Brochures

12/11/2016
3116KB
12/11/2016
5255KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
ATA6823-DK
ATA6823-DK ( ATA6823-DK )

The development kit contains a main board with an H-bridge gate driver (ATA6823), external FETs, and DC motor. The controller board is populated with an ATmega88 microcontroller and LCD display.

Learn More
Add To Cart
ATA6826-DK
ATA6826-DK ( ATA6826-DK )

The application board allows loads to be easily adapted via its row connector pins. Design software controls its SPI interface via the PC parallel port. The board contains everything needed to start operation, including a link cable to PC 25-lead 1:1, application note and datasheet.

Learn More
Add To Cart
ATA6831-DK
ATA6831-DK ( ATA6831-DK )

Application board that allows loads to be easily adapted via its row connector pins. Design software controls its SPI interface via the PC parallel port. The board contains everything needed to start operation, including a link cable to PC 25-lead 1:1, application note and datasheet.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATA6838C-PXQW-1
0.067200
0.183333
24
VQFN
5x5x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
