ATA6824C

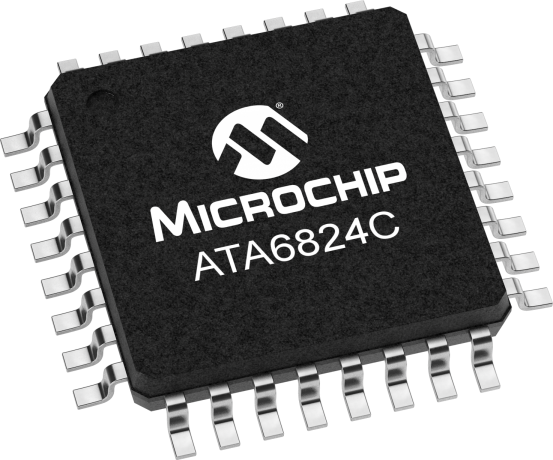

High Temperature H-bridge Motor Driver System Basis Chip

Status: In Production

Features:

  • PWM and direction-controlled driving of four externally-powered NMOS transistors
  • High temperature capability up to 200°C junction
  • A programmable dead time is included to avoid peak currents within the H-bridge
  • Integrated charge pump to provide gate voltages for high-side drivers and to supply the gate of the external battery reverse protection NMOS
  • 5V/3.3V regulator and current limitation function
  • Reset derived from 5V/3.3V regulator output voltage
  • A programmable window watchdog
  • Battery overvoltage protection and battery undervoltage management
  • Overtemperature warning and protection (Shutdown)
  • High voltage serial interface for communication
  • TPQFP package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

A high-temperature H-bridge motor driver designed for DC motor control applications in automotive high temperature environments. With a maximum junction temperature of 200ºC, this driver is suitable for applications with an ambient temperature up to 150ºC. The IC includes four driver stages to control four external power MOSFETs. An external microcontroller provides the direction signal and the PWM frequency.

Additional Features
    • PWM and direction-controlled driving of four externally-powered NMOS transistors
    • High temperature capability up to 200°C junction
    • A programmable dead time is included to avoid peak currents within the H-bridge
    • Integrated charge pump to provide gate voltages for high-side drivers and to supply the gate of the external battery reverse protection NMOS
    • 5V/3.3V regulator and current limitation function
    • Reset derived from 5V/3.3V regulator output voltage
    • A programmable window watchdog
    • Battery overvoltage protection and battery undervoltage management
    • Overtemperature warning and protection (Shutdown)
    • High voltage serial interface for communication
    • TPQFP package
Parametrics
Name
Value
Operating Voltage Range (V)
7 to 20
Output
Gate Driver
Max. Continuous Current per output
0.1
Max. Ron per Output (?)
25
Motor Control Methods
PWM, DIR
Shutdown Protection
Short Circuit, Overtemperature, Over/Under Voltage, Chargepump Fail, Watchdog
Ambient Temperature Range (°C)
-40 to 150
Voltage Regulators
1
Voltage Regulator Current (mA)
100
Packages
32/TQFP

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
ATA6823-DK
ATA6823-DK ( ATA6823-DK )

The development kit contains a main board with an H-bridge gate driver (ATA6823), external FETs, and DC motor. The controller board is populated with an ATmega88 microcontroller and LCD display.

Learn More
Add To Cart
ATA6832-DK
ATA6832-DK ( ATA6832-DK )

The development board contains an triple half bridge driver (ATA6832), ATmega88 microcontroller, and ATA6625 LIN SBC as a voltage regulator. Only high-temperature components populate this board. The board also includes a BLDC motor control kit with BLDC motor and a power supply cable with banana plugs. The BLDC motor control is fully integrated from the signal generation to the full BLDC motor...

Learn More
Add To Cart
ATA6844-DK
ATA6844-DK ( ATA6844-DK )

Intention of the kit is demonstrating the features of the ATA6843/44 System Basis Chip BLDC Gate Driver. Motor position feedback operates with Back-Electromotive-Force (Back-EMF). Motor control microcontroller is ATmega32M1. For monitoring and evaluating purposes is an USB interface on board.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATA6824C-MFHW-1
0.147200
0.440000
32
TQFP
7x7x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
