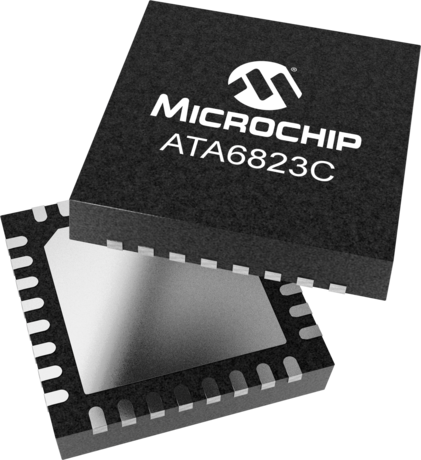

product primary image

ATA6823C

H-bridge Motor Driver and LIN System Basis Chip

Status: In Production

Features:

  • PWM and direction-controlled driving of four externally-powered NMOS transistors
  • A programmable dead time is included to avoid peak currents within the H-bridge
  • Integrated charge pump to provide gate voltages for high-side drivers and to supply the gate of the external battery reverse protection NMOS
  • 5V/3.3V regulator and current limitation function
  • Reset derived from 5V/3.3V regulator output voltage
  • Sleep mode with supply current of typically < 45μA, wake-up by signal on pins EN2 or on LIN interface
  • A programmable window watchdog
  • Battery overvoltage protection and battery undervoltage management
  • Overtemperature warning and protection (shutdown)
  • LIN 2.1 compliant
  • 3.3V/5V regulator with trimmed band gap
  • QFN32 package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

ATA6823C is designed for automotive body and powertrain applications. The IC is used to drive a continuous current motor in a full H-bridge configuration. An external microcontroller controls the driving function of the IC by providing a PWM signal and a direction signal and allows the use of the IC in a motor-control application. The PWM control is performed by the low-side switch; the high-side switch is permanently on in the driving phase. The VMODE configuration pin can be set to 5V or 3.3V mode (for regulator and interface high level). The window watchdog has a programmable time, programmable by choosing a certain value of the external watchdog resistor RWD, internally trimmed to an accuracy of 10%. For communication a LIN transceiver 2.1 is integrated.

Additional Features
    • PWM and direction-controlled driving of four externally-powered NMOS transistors
    • A programmable dead time is included to avoid peak currents within the H-bridge
    • Integrated charge pump to provide gate voltages for high-side drivers and to supply the gate of the external battery reverse protection NMOS
    • 5V/3.3V regulator and current limitation function
    • Reset derived from 5V/3.3V regulator output voltage
    • Sleep mode with supply current of typically < 45μA, wake-up by signal on pins EN2 or on LIN interface
    • A programmable window watchdog
    • Battery overvoltage protection and battery undervoltage management
    • Overtemperature warning and protection (shutdown)
    • LIN 2.1 compliant
    • 3.3V/5V regulator with trimmed band gap
    • QFN32 package
Parametrics
Name
Value
Operating Voltage Range (V)
7 to 20
Output
Gate Driver
Max. Continuous Current per output
0.1
Max. Ron per Output (?)
20
Motor Control Methods
PWM, DIR
Shutdown Protection
Short Circuit, Overtemperature, Over/Under Voltage, Chargepump Fail, Watchdog
Ambient Temperature Range (°C)
-40 to 125
Voltage Regulators
1
Voltage Regulator Current (mA)
100
Integrated LIN Transceiver
Yes
Packages
32/VQFN

Documents

Jump to:

Data Sheets

Supporting Collateral

Brochures

12/11/2016
3116KB
12/11/2016
5255KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
ATA6823-DK
ATA6823-DK ( ATA6823-DK )

The development kit contains a main board with an H-bridge gate driver (ATA6823), external FETs, and DC motor. The controller board is populated with an ATmega88 microcontroller and LCD display.

Learn More
Add To Cart
ATA6826-DK
ATA6826-DK ( ATA6826-DK )

The application board allows loads to be easily adapted via its row connector pins. Design software controls its SPI interface via the PC parallel port. The board contains everything needed to start operation, including a link cable to PC 25-lead 1:1, application note and datasheet.

Learn More
Add To Cart
ATA6831-DK
ATA6831-DK ( ATA6831-DK )

Application board that allows loads to be easily adapted via its row connector pins. Design software controls its SPI interface via the PC parallel port. The board contains everything needed to start operation, including a link cable to PC 25-lead 1:1, application note and datasheet.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATA6823C-PHQW-1
0.300000
32
VQFN
7x7x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
