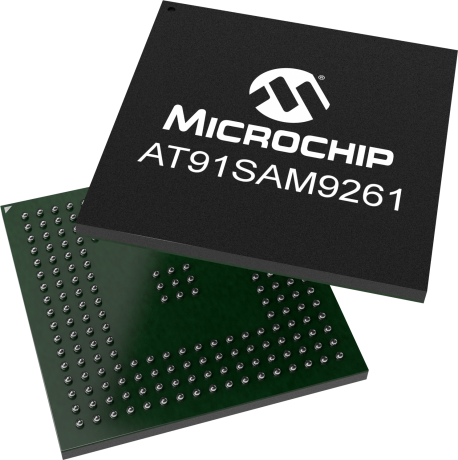

product primary image

AT91SAM9261

Status: In Production

Features:

  • ARM926 ARM Thumb Processor running up to 190 MHz
  • 16-Kbyte Data Cache, 16-Kbyte Instruction Cache
  • Memory Management Unit
  • Embedded Trace Module
  • 160 Kbytes of SRAM, single-cycle access
  • 32 Kbytes of ROM embedding standard bootstrap
  • 32-bit External Bus Interface (EBI) supporting SDRAM, Static Memory, Burst Flash, Glueless Connection to CompactFlash® and NAND Flash/SmartMedia®
  • Enhanced Clock Generator and Power Management Controller
  • On-chip Oscillator with Two PLLs
  • Very Slow Clock Operating Mode and Software Power Optimization Capabilities
  • Two Programmable External Clock Signals
  • System Timer Including Periodic Interrupt, Watchdog and Second Counter
  • Real-time Clock with Alarm Interrupt
  • Debug Unit, Two-wire UART and Support for Debug Communication Channel
  • Advanced Interrupt Controller with 8-level Priority, Individually Maskable Vectored Interrupt Sources, SpuriousInterrupt Protected
  • Seven External Interrupt Sources and One Fast Interrupt Source
  • Three 32-bit PIO Controllers with Up to 96 Programmable I/O Lines, Input Change Interrupt and Open-drain Capability on Each LineLCD
  • 20-channel Peripheral DMA Controller (PDC)
  • Supports Passive or Active Displays
  • Up to 16 bits per Pixel in STN Color Mode
  • Up to 16M Colors in TFT Mode (24-bit per Pixel)
  • Resolution up to 2048x2048
  • Dual On-chip Transceivers (Single Port Only on 208-lead PQFP Package)
  • Integrated FIFOs and Dedicated DMA Channels
  • On-chip Transceiver, 2-Kbyte Configurable Integrated FIFOs
  • Automatic Protocol Control and Fast Automatic Data Transfers
  • MMC and SD Memory Card-compliant, Supports Up to Two SD Memory Cards
  • Independent Clock and Frame Sync Signals for Each Receiver and Transmitter
  • I2S Analog Interface Support, Time Division Multiplex Support
  • High-speed Continuous Data Stream Capabilities with 32-bit Data Transfer
  • Support for ISO7816 T0/T1 Smart Card
  • Hardware Handshaking
  • RS485 Support, IrDA® Up To 115 Kbps
  • Full Modem Control Lines on USART1
  • 8 to 16-bit Programmable Data Length
  • 4 External Peripheral Chip Selects
  • Three External Clock Inputs
  • Two Multi-purpose I/O Pins per Channel
  • Double PWM Generation, Capture/Waveform Mode, Up/Down Capability
  • Master Mode Support, All 2-wire Atmel EEPROMs Supported
  • IEEE® 1149.1 JTAG Boundary Scan on All Digital Pins
  • 1.08V to 1.32V for VDDCORE, VDDOSC and VDDPLL
  • 3.0V to 3.6V for VDDIOP (Peripheral I/Os) and for VDDIOM (Memory I/Os)
  • 217-ball RoHS-compliant LFBGA
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The ARM®-based SAM9261 runs up to 190MHz with 160KB of SRAM that can be configured as TCM (tightly-coupled memory). It features an extensive peripheral set that includes an integrated graphics LCD controller supporting screen resolutions up to 1280x860 with 16M colors and 24bpp. The device integrates multiple communication interfaces, such as FS USB host and device with 2 ports and 2 transceivers, a FS USB Device, USARTs, SPIs, I2S and I2C. The external bus interface incorporates controllers for SDRAM and Static memories, with specific interface circuitry for CompactFlash and NAND flash. The device is available in a BGA217 package with 0.8mm ball pitch.

Additional Features

    Core:

    • ARM926 ARM Thumb Processor running up to 190 MHz
    • 16-Kbyte Data Cache, 16-Kbyte Instruction Cache
    • Memory Management Unit
    • Embedded Trace Module

    Memories:

    • 160 Kbytes of SRAM, single-cycle access
    • 32 Kbytes of ROM embedding standard bootstrap
    • 32-bit External Bus Interface (EBI) supporting SDRAM, Static Memory, Burst Flash, Glueless Connection to CompactFlash® and NAND Flash/SmartMedia®

    Peripherals:

    • Enhanced Clock Generator and Power Management Controller
    • On-chip Oscillator with Two PLLs
    • Very Slow Clock Operating Mode and Software Power Optimization Capabilities
    • Two Programmable External Clock Signals
    • System Timer Including Periodic Interrupt, Watchdog and Second Counter
    • Real-time Clock with Alarm Interrupt
    • Debug Unit, Two-wire UART and Support for Debug Communication Channel
    • Advanced Interrupt Controller with 8-level Priority, Individually Maskable Vectored Interrupt Sources, SpuriousInterrupt Protected
    • Seven External Interrupt Sources and One Fast Interrupt Source
    • Three 32-bit PIO Controllers with Up to 96 Programmable I/O Lines, Input Change Interrupt and Open-drain Capability on Each LineLCD
    • 20-channel Peripheral DMA Controller (PDC)
    • LCD Controller:
      • Supports Passive or Active Displays
      • Up to 16 bits per Pixel in STN Color Mode
      • Up to 16M Colors in TFT Mode (24-bit per Pixel)
      • Resolution up to 2048x2048
    • USB 2.0 Full Speed (12Mbits per second) Host Double Port:
      • Dual On-chip Transceivers (Single Port Only on 208-lead PQFP Package)
      • Integrated FIFOs and Dedicated DMA Channels
    • USB 2.0 Full Speed (12Mbits per second) Device Port:
      • On-chip Transceiver, 2-Kbyte Configurable Integrated FIFOs
    • Multimedia Card Interface (MCI):
      • Automatic Protocol Control and Fast Automatic Data Transfers
      • MMC and SD Memory Card-compliant, Supports Up to Two SD Memory Cards
    • Three Synchronous Serial Controller (SSC):
      • Independent Clock and Frame Sync Signals for Each Receiver and Transmitter
      • I2S Analog Interface Support, Time Division Multiplex Support
      • High-speed Continuous Data Stream Capabilities with 32-bit Data Transfer
    • Three Universal Synchronous/Asynchronous Receiver/Transmitters (USART):
      • Support for ISO7816 T0/T1 Smart Card
      • Hardware Handshaking
      • RS485 Support, IrDA® Up To 115 Kbps
      • Full Modem Control Lines on USART1
    • Two Master/Slave Serial Peripheral Interface (SPI):
      • 8 to 16-bit Programmable Data Length
      • 4 External Peripheral Chip Selects
    • 3-channel, 16-bit Timer/Counters (TC):
      • Three External Clock Inputs
      • Two Multi-purpose I/O Pins per Channel
      • Double PWM Generation, Capture/Waveform Mode, Up/Down Capability
    • Two-wire Interface (TWI):
      • Master Mode Support, All 2-wire Atmel EEPROMs Supported
      • IEEE® 1149.1 JTAG Boundary Scan on All Digital Pins
    • Power Supplies:
      • 1.08V to 1.32V for VDDCORE, VDDOSC and VDDPLL
      • 3.0V to 3.6V for VDDIOP (Peripheral I/Os) and for VDDIOM (Memory I/Os)

    Packages:

    • 217-ball RoHS-compliant LFBGA
Parametrics
Name
Value
Part Family
SAM9200
Core
ARM926
Max CPU Speed (MHz)
190
Core Voltage Range (V)
1.08 to 1.32
Vbat/Vddbu battery backup
Yes
Internal Oscillator
32KHz
SRAM (KB)
160
L1 Cache Memory (Instructions) (KB)
16
L1 Cache Memory (Data) (KB)
16
DRAM Interface
SDRAM
DRAM Bus Size (Bits)
32
NAND Interface
Yes
Number of EBIs
1
SDIO/SD-CARD/eMMC
1
Direct Memory Access Channels
21
Max I/O Pins
96
Pincount
217
UART
5
ISO 7816
3
SPI
2
I2C
1
SSC
3
USB Device Only Ports
1 FS
USB Host Only Ports
2 FS
Graphics Controller/GPU
Yes
Graphic LCD
24-bit
Hardware RTCC/RTC
Yes
Watch Dog Timer
Yes
Max 16-Bit Digital Timers
3
Input Capture
3
Standalone Output Compare/Standard PWM
3
Temperature Range (C)
-40 to 85

Documents

Jump to:

Data Sheets

Board Design Files

Development Environment

  • Integrated Development Environments
Integrated Development Environments
AT91SAM-ICE
SAM-ICE ( AT91SAM-ICE )

The SAM-ICE catalog part number (CPN) is now End of Life (EOL) and can no longer be offered.

For MPU and SAM developers, SAM-ICE has been replaced by the J-32 Debug Probe (DV164232)

Alternatively, SAM developers can use either Atmel ICE (

...

Learn More
DV164232
J-32 Debug Probe ( DV164232 )

The J-32 Debug Probe Debugger/Programmer provides affordable, fast and easy debugging and programming for Microchip’s PIC32 and SAM MCU and MPU products. It is fully integrated into Microchip’s powerful MPLAB® X Integrated Development Environment and easy-to-use Integrated Programming Environment. Connecting existing hardware is simple as it keeps the Segger

...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT91SAM9261B-CU
0.437400
1.642857
217
LFBGA
15x15x1.4mm
SAC105
e8
AT91SAM9261B-CU-999
0.437400
1.450000
217
LFBGA
15x15x1.4mm
SAC105
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
