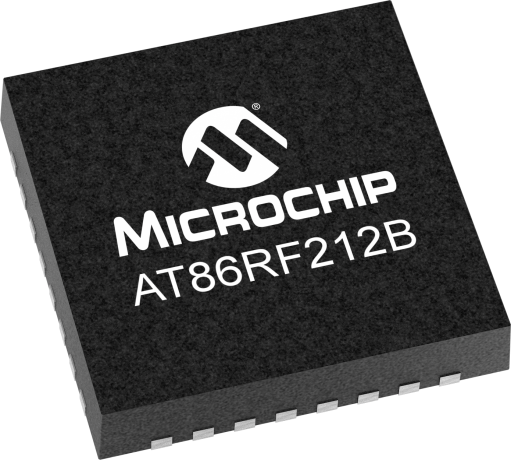

AT86RF212B

Status: In Production

Features:

  • Chinese WPAN band from 779 to 787MHz
  • European SRD band from 863 to 870MHz
  • North American ISM band from 902 to 928MHz
  • Japanese band from 915 to 930MHz
  • BPSK with 20 and 40kb/s, compliant to IEEE® 802.15.4-2003/2006/2011
  • O-QPSK with 100 and 250kb/s, compliant to IEEE 802.15.4-2006/2011
  • O-QPSK with 250kb/s, compliant to IEEE 802.15.4-2011
  • O-QPSK with 200, 400, 500, and 1000kb/s PSDU data rate
  • Flexible combination of frequency bands and data rates
  • Receiver sensitivity up to -110dBm
  • Programmable TX output power up to +11dBm
  • SLEEP = 0.2μA
  • TRX_OFF = 450μA
  • RX_ON = 9.2mA
  • BUSY_TX = 18.0mA at TX output power +5dBm
  • Ultra-low supply voltage (1.8V to 3.6V) with internal regulator
  • Registers, frame buffer, and AES accessible through fast SPI
  • Clock output with prescaler from radio transceiver
  • 128-byte FIFO (SRAM) for data buffering
  • Fully integrated, fast settling PLL to support Frequency Hopping
  • Battery monitor
  • Adjustable receiver sensitivity
  • Integrated TX/RX switch, LNA, and PLL loop filter
  • Automatic VCO and filter calibration
  • Integrated 16MHz crystal oscillator
  • FCS computation and Clear Channel Assessment
  • RSSI measurement, Energy Detection and Link Quality Indication
  • Automated acknowledgement and retransmission
  • CSMA-CA and Listen Before Talk (LBT)
  • Automatic address filtering and automated FCS check
  • AES 128-bit hardware accelerator
  • Antenna Diversity
  • RX/TX indication for external RF front end control
  • True Random Number Generation for security application
  • Few external components necessary (crystal, capacitors and antenna)
  • Excellent ESD robustness
  • Industrial temperature range from -40°C to +85°C
  • 32-pin Low-Profile QFN Package 5 x 5 x 0.9mm³
  • RoHS/Fully Green
  • Compliant to IEEE 802.15.4-2003/2006/2011
  • Compliant to ETSI EN 300 220-1, and FCC 47 CFR Section 15.247
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

Low-power, low-voltage 700/800/900MHz transceiver designed for low-cost IEEE 802.15.4-2011, ZigBee Pro, 6LoWPAN, and high data rate ISM applications available in China, Europe, North America, and Japan. The transceiver offers an extreme 120 dB link budget (-110 dBm receiver sensitivity / +10 dBm transmit power). It is a true SPI-to-antenna solution providing a complete radio transceiver interface between the antenna and the microcontroller. MAC and AES hardware accelerators improve overall system power efficiency and timing.

It comprises the analog radio transceiver and the digital demodulation including time and frequency synchronization, and data buffering. All RF-critical components are integrated on a single chip minimizing the number of required external components to the antenna, crystal and decoupling capacitors. The bidirectional differential antenna pins, used for transmission and reception, eliminate the need for an external antenna switch.

An internal 128 byte RAM buffers transmit and receive data. Two on chip low dropout (LDO) voltage regulators provide the internal analog and digital 1.8V supply.

Additional Features
    • Fully integrated 769-935MHz transceiver including:
      • Chinese WPAN band from 779 to 787MHz
      • European SRD band from 863 to 870MHz
      • North American ISM band from 902 to 928MHz
      • Japanese band from 915 to 930MHz
    • Direct Sequence Spread Spectrum with different modulation and data rates:
      • BPSK with 20 and 40kb/s, compliant to IEEE® 802.15.4-2003/2006/2011
      • O-QPSK with 100 and 250kb/s, compliant to IEEE 802.15.4-2006/2011
      • O-QPSK with 250kb/s, compliant to IEEE 802.15.4-2011
      • O-QPSK with 200, 400, 500, and 1000kb/s PSDU data rate
    • Flexible combination of frequency bands and data rates
    • Industry leading link budget:
      • Receiver sensitivity up to -110dBm
      • Programmable TX output power up to +11dBm
    • Ultra-low current consumption:
      • SLEEP = 0.2μA
      • TRX_OFF = 450μA
      • RX_ON = 9.2mA
      • BUSY_TX = 18.0mA at TX output power +5dBm
    • Ultra-low supply voltage (1.8V to 3.6V) with internal regulator
    • Easy to use interface:
      • Registers, frame buffer, and AES accessible through fast SPI
      • Clock output with prescaler from radio transceiver
    • Radio transceiver features:
      • 128-byte FIFO (SRAM) for data buffering
      • Fully integrated, fast settling PLL to support Frequency Hopping
      • Battery monitor
      • Adjustable receiver sensitivity
      • Integrated TX/RX switch, LNA, and PLL loop filter
      • Automatic VCO and filter calibration
      • Integrated 16MHz crystal oscillator
    • Special IEEE 802.15.4™-2011 hardware support:
      • FCS computation and Clear Channel Assessment
      • RSSI measurement, Energy Detection and Link Quality Indication
    • MAC hardware accelerator:
      • Automated acknowledgement and retransmission
      • CSMA-CA and Listen Before Talk (LBT)
      • Automatic address filtering and automated FCS check
    • Extended feature set hardware support:
      • AES 128-bit hardware accelerator
      • Antenna Diversity
      • RX/TX indication for external RF front end control
      • True Random Number Generation for security application
    • Optimized for low BoM Cost and ease of production:
      • Few external components necessary (crystal, capacitors and antenna)
      • Excellent ESD robustness
      • Industrial temperature range from -40°C to +85°C
    • I/O and packages:
      • 32-pin Low-Profile QFN Package 5 x 5 x 0.9mm³
      • RoHS/Fully Green
    • Compliant to IEEE 802.15.4-2003/2006/2011
    • Compliant to ETSI EN 300 220-1, and FCC 47 CFR Section 15.247
Parametrics
Name
Value
Type
802.15.4
Output Power (dBm)
10 dBm
Operating Temperature Range
-40 to +85C
Frequency Range
700/800/900MHz
Rx Input Sensitivity (dB)
-110 dBm
Operating Voltage Range
1.8 to 3.6 Vcc
Crypto Engine
AES
External PA Control
Yes
Cloud Partners
Yes

Documents

Jump to:

Application Notes

Download All

Software

User Guides

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
ATZB-X-233-XPRO
ATZB-X-233-XPRO ( ATZB-X-233-XPRO )

This ZigBit extension board is targeted for evaluating the features of the ZigBits, currently supporting ATmega256RFR2 wireless SoC, the AT86RF212B and AT86RF233 radio transceivers.

Learn More
Add To Cart
ATZB-X-233-XPRO
ATZB-X-233-XPRO ( ATZB-X-233-XPRO )

This ZigBit extension board is targeted for evaluating the features of the ZigBits, currently supporting ATmega256RFR2 wireless SoC, the AT86RF212B and AT86RF233 radio transceivers.

Learn More
Add To Cart
ATREB215-XPRO
ATREB215-XPRO ( ATREB215-XPRO )

This wireless extension board for Xplained PRO is targeted for evaluating the features of the multi-band radio transceiver AT86RF215 in the 863-928 MHz band and the 2.4 GHz band. AT86RF215 is compliant to IEEE 802.15.4-2011, IEEE 802.15.4g-2012, and ETSI TS 102 887-1.

Learn More
Add To Cart
ATZB-X-212B-USB
ATZB-X-212B-USB ( ATZB-X-212B-USB )

The ZigBit USB sticks is targeted for evaluating the USB features of the ZigBits, currently supporting the XMEGA with AT86RF212B or AT86RF233 radio transceivers.

What is in the box: ZigBit ATxmega256A3U and AT86RF212B ZigBit USB Stick

Learn More
Add To Cart
ATZB-X-212B-USB
ATZB-X-212B-USB ( ATZB-X-212B-USB )

The ZigBit USB sticks is targeted for evaluating the USB features of the ZigBits, currently supporting the XMEGA with AT86RF212B or AT86RF233 radio transceivers.

What is in the box: ZigBit ATxmega256A3U and AT86RF212B ZigBit USB Stick

Learn More
Add To Cart
ATZB-X-212B-USB
ATZB-X-212B-USB ( ATZB-X-212B-USB )

The ZigBit USB sticks is targeted for evaluating the USB features of the ZigBits, currently supporting the XMEGA with AT86RF212B or AT86RF233 radio transceivers.

What is in the box: ZigBit ATxmega256A3U and AT86RF212B ZigBit USB Stick

Learn More
Add To Cart
ATZB-256RFR2-XPRO
ATZB-256RFR2-XPRO ( ATZB-256RFR2-XPRO )

The ZigBit extension board is targeted for evaluating the features of the ZigBits, currently supporting ATmega256RFR2 wireless SoC, the AT86RF212B and AT86RF233 radio transceivers.

Learn More
Add To Cart
ATZB-256RFR2-XPRO
ATZB-256RFR2-XPRO ( ATZB-256RFR2-XPRO )

The ZigBit extension board is targeted for evaluating the features of the ZigBits, currently supporting ATmega256RFR2 wireless SoC, the AT86RF212B and AT86RF233 radio transceivers.

Learn More
Add To Cart
ATREB215-XPRO
ATREB215-XPRO ( ATREB215-XPRO )

This wireless extension board for Xplained PRO is targeted for evaluating the features of the multi-band radio transceiver AT86RF215 in the 863-928 MHz band and the 2.4 GHz band. AT86RF215 is compliant to IEEE 802.15.4-2011, IEEE 802.15.4g-2012, and ETSI TS 102 887-1.

Learn More
Add To Cart
ATZB-X-233-USB
ATZB-X-233-USB ( ATZB-X-233-USB )

The ZigBit USB stick is targeted for evaluating the USB features of the ZigBits, currently supporting the XMEGA with AT86RF212B or AT86RF233 radio transceivers.

Learn More
Add To Cart
ATZB-X-233-USB
ATZB-X-233-USB ( ATZB-X-233-USB )

The ZigBit USB stick is targeted for evaluating the USB features of the ZigBits, currently supporting the XMEGA with AT86RF212B or AT86RF233 radio transceivers.

Learn More
Add To Cart
ATZB-A-233-XPRO
ATZB-A-233-XPRO ( ATZB-A-233-XPRO )

This ZigBit extension board is targeted for evaluating the features of the ZigBits, currently supporting ATmega256RFR2 wireless SoC, the AT86RF212B and AT86RF233 radio transceivers.

Learn More
Add To Cart
ATZB-A-233-XPRO
ATZB-A-233-XPRO ( ATZB-A-233-XPRO )

This ZigBit extension board is targeted for evaluating the features of the ZigBits, currently supporting ATmega256RFR2 wireless SoC, the AT86RF212B and AT86RF233 radio transceivers.

Learn More
Add To Cart
ATZB-A-233-XPRO
ATZB-A-233-XPRO ( ATZB-A-233-XPRO )

This ZigBit extension board is targeted for evaluating the features of the ZigBits, currently supporting ATmega256RFR2 wireless SoC, the AT86RF212B and AT86RF233 radio transceivers.

Learn More
Add To Cart
ATZB-212B-XPRO
ATZB-212B-XPRO ( ATZB-212B-XPRO )

The ZigBit extension boards are targeted for evaluating the features of the ZigBits, currently supporting ATmega256RFR2 wireless SoC, the AT86RF212B radio transceivers.

What is in the box: AT86RF212B ZigBit Xplained PRO Extension

Learn More
Add To Cart
ATZB-212B-XPRO
ATZB-212B-XPRO ( ATZB-212B-XPRO )

The ZigBit extension boards are targeted for evaluating the features of the ZigBits, currently supporting ATmega256RFR2 wireless SoC, the AT86RF212B radio transceivers.

What is in the box: AT86RF212B ZigBit Xplained PRO Extension

Learn More
Add To Cart
ATREB233-XPRO
ATREB233-XPRO ( ATREB233-XPRO )

This extension board is targeted for evaluating the features of the AT86RF233 radio transceiver.

Learn More
Add To Cart
ATREB233-XPRO
ATREB233-XPRO ( ATREB233-XPRO )

This extension board is targeted for evaluating the features of the AT86RF233 radio transceiver.

Learn More
Add To Cart
ATREB233-XPRO
ATREB233-XPRO ( ATREB233-XPRO )

This extension board is targeted for evaluating the features of the AT86RF233 radio transceiver.

Learn More
Add To Cart
ATZB-212B-XPRO
ATZB-212B-XPRO ( ATZB-212B-XPRO )

The ZigBit extension boards are targeted for evaluating the features of the ZigBits, currently supporting ATmega256RFR2 wireless SoC, the AT86RF212B radio transceivers.

What is in the box: AT86RF212B ZigBit Xplained PRO Extension

Learn More
Add To Cart
ATZB-SAMR21-XPRO
ATZB-SAMR21-XPRO ( ATZB-SAMR21-XPRO )

The ZB SAM R21 Xplained Pro evaluation kit is an extension board to evaluate and develop using the ATSAMR21G18-MR210UA ZigBee module. Supported by the Studio integrated development platform, the kit provides easy access to the features of the ATSAMR21G18-MR210UA module. The Xplained Pro extension kits offers additional peripherals to extend the features of the board and ease the development

...

Learn More
Add To Cart
ATZB-SAMR21-XPRO
ATZB-SAMR21-XPRO ( ATZB-SAMR21-XPRO )

The ZB SAM R21 Xplained Pro evaluation kit is an extension board to evaluate and develop using the ATSAMR21G18-MR210UA ZigBee module. Supported by the Studio integrated development platform, the kit provides easy access to the features of the ATSAMR21G18-MR210UA module. The Xplained Pro extension kits offers additional peripherals to extend the features of the board and ease the development

...

Learn More
Add To Cart
ATZB-X-212B-XPRO
ATZB-X-212B-XPRO ( ATZB-X-212B-XPRO )

ZigBit extension boards are targeted for evaluating the features of the ZigBits, currently supporting ATmega256RFR2 wireless SoC, the AT86RF212B and AT86RF233 radio transceivers.

What is in the box: ATxmega256A3U and AT86RF212B ZigBit Xplained PRO Extension

Learn More
Add To Cart
ATZB-X-212B-XPRO
ATZB-X-212B-XPRO ( ATZB-X-212B-XPRO )

ZigBit extension boards are targeted for evaluating the features of the ZigBits, currently supporting ATmega256RFR2 wireless SoC, the AT86RF212B and AT86RF233 radio transceivers.

What is in the box: ATxmega256A3U and AT86RF212B ZigBit Xplained PRO Extension

Learn More
Add To Cart
ATZB-X-212B-XPRO
ATZB-X-212B-XPRO ( ATZB-X-212B-XPRO )

ZigBit extension boards are targeted for evaluating the features of the ZigBits, currently supporting ATmega256RFR2 wireless SoC, the AT86RF212B and AT86RF233 radio transceivers.

What is in the box: ATxmega256A3U and AT86RF212B ZigBit Xplained PRO Extension

Learn More
Add To Cart
ATWPTRB
ATWPTRB ( ATWPTRB )

The Wireless Production Test Reference (WPTR) is a complete production test setup solution offered for customers using the wireless solutions including ZigBee Transceivers and SoC in their product. Main purpose of this reference solution is to ensure faster ramp up of production test for customers products in high volume manufacturing. The tests that can be executed in the production site

...

Learn More
Add To Cart
ATWPTRB
ATWPTRB ( ATWPTRB )

The Wireless Production Test Reference (WPTR) is a complete production test setup solution offered for customers using the wireless solutions including ZigBee Transceivers and SoC in their product. Main purpose of this reference solution is to ensure faster ramp up of production test for customers products in high volume manufacturing. The tests that can be executed in the production site

...

Learn More
Add To Cart
ATWPTRB
ATWPTRB ( ATWPTRB )

The Wireless Production Test Reference (WPTR) is a complete production test setup solution offered for customers using the wireless solutions including ZigBee Transceivers and SoC in their product. Main purpose of this reference solution is to ensure faster ramp up of production test for customers products in high volume manufacturing. The tests that can be executed in the production site

...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight
Shipping Weight
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT86RF212B-ZU
0.061300
0.512245
32
VQFN
5x5x0.9mm
Matte Tin
e3
Rohs icon
efup china icon
AT86RF212B-ZUR
0.061300
0.075200
32
VQFN
5x5x0.9mm
Matte Tin
e3
Rohs icon
efup china icon
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
