Part Number: EV12V58A

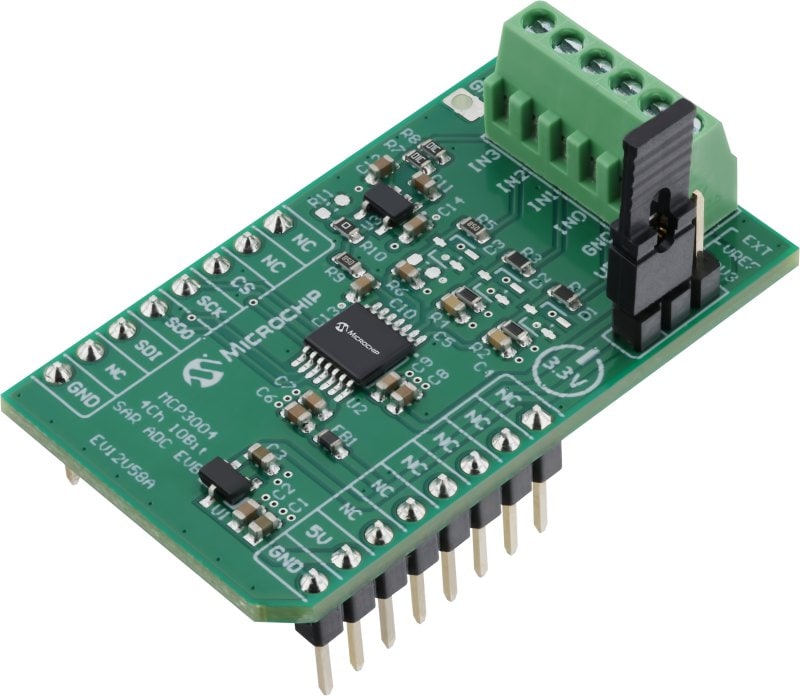

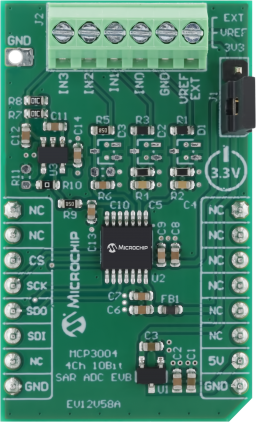

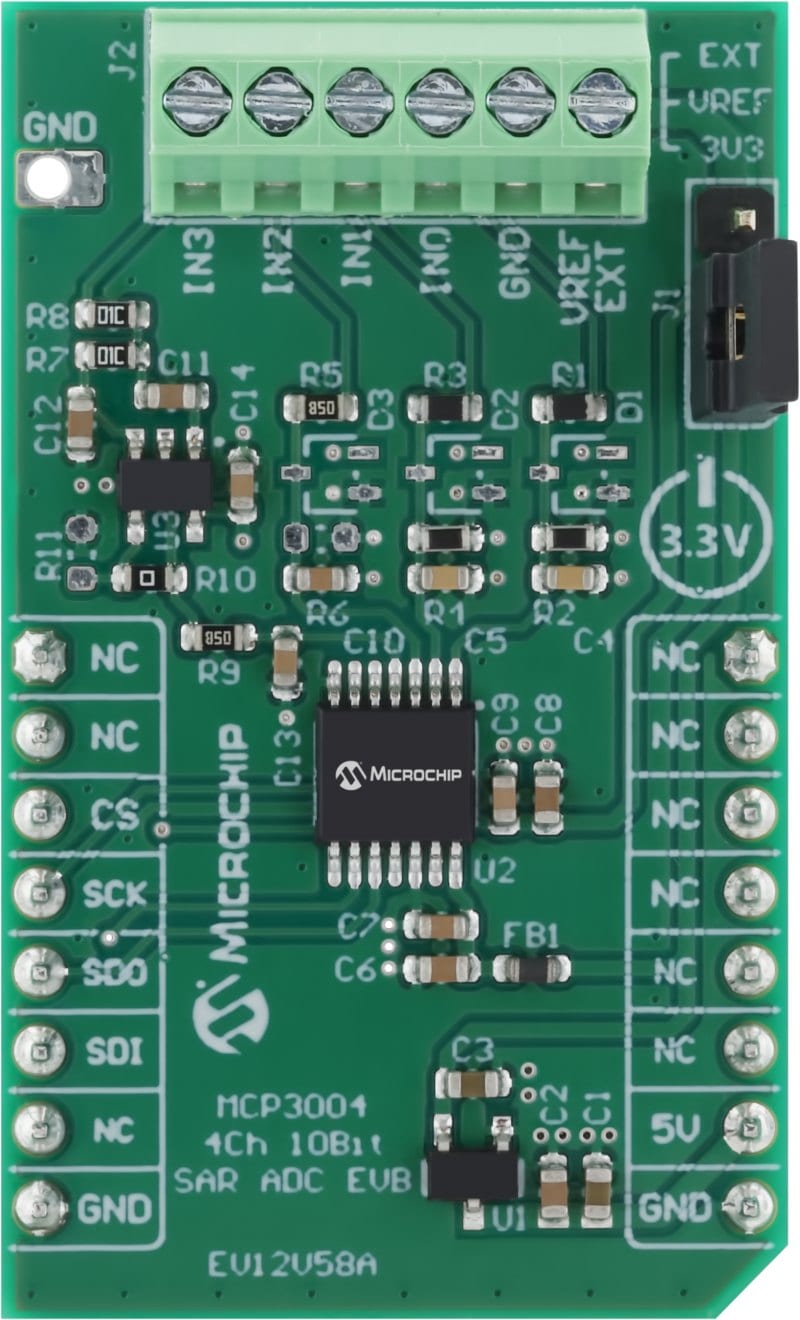

EV12V58A MCP3004 4Ch 10Bit SAR ADC EVB

Hardware Features
- mikroBUS compatible for connectivity with the MCU platforms
- Terminal block connector for the input analog voltages
- ADC input signal conditioning circuits: Voltage dividers and input filters

GUI Features
- Analyze and display acquired data

Firmware Features
- Code example for the Curiosity PIC32MX470 Development Board

Support Documentation
- User's Guide
- Test scenario example in the User Guide

Overview


The EV12V58A MCP3004 Evaluation Board provides the opportunity to evaluate the performance of Microchip's MCP3004 4-Channel 10-Bit SAR ADC, which uses the SPI protocol. The board is mikroBUS™ compatible for direct communication with other MCU platforms.

Package Contents
  • EV12V58A MCP3004 4Ch 10Bit SAR ADC EVB

Documentation


Title
Document Id
EV12V58A R2 Schematic Download 2e0cca62-8376-490c-b56a-51903e015d34
EV12V58A R2 Design Files Download 8c7a0a75-ffeb-46e9-ad26-5dc2a4852f9d
EV12V58A R2 3D PDF Download de5acc30-9654-408f-9f7a-cc7ebfb6a7a8
EV12V58A R2 BOM Download 790eeb48-52af-4657-b2c7-2df325570c9c
EV12V58A R2 Gerbers Download af96785f-7458-43bc-a19c-edb10866a617
MCP3004 SAR ADC Evaluation Board User’s Guide Download 2d7c2b14-8ee8-48dd-be96-33e903150119

Software


Title
Date
Hi-Resolution ADC Utility (v1.7.1) Download 13 Aug 2024
EV12V58A Firmware Download 28 Feb 2024

Silicon Products

Product
Title
Product
Title
MCP3004 10-Bit, 200kSPS, 4-Channel ADC MCP3004 10-Bit, 200kSPS, 4-Channel ADC
