Overview

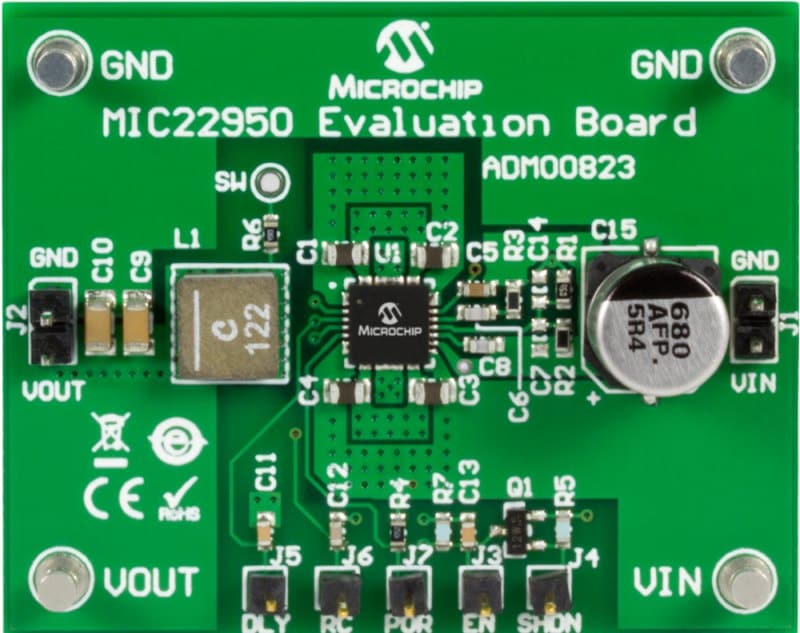

MIC22950 Evaluation Board was developed to evaluate the capabilities of the MIC22950 high-efficiency 10A integrated switch, synchronous buck (step-down) regulator. The MIC22950 achieves over 95% efficiency while still switching at 2MHz over a broad load range.
The MIC22950 Evaluation Board features turret connectors for input and output power and test points for measuring various signals like Enable, Delay, Power-On Reset and RC.
• Fully-integrated MOSFET switches
• 2.6V to 5.5V supply voltage
• Adjustable output voltage option down to 0.7V
• Output load current up to 10A
• Full sequencing and tracking capability
• Power-On Reset
• Efficiency >95% across a broad load range
• Operating frequency programmable: 400kHz to 2MHz
• Ultra-fast transient response
• 100% maximum duty cycle
• Micropower shutdown
• Thermal-shutdown and current-limit protection
The MIC22950 10A Synchronous Buck Regulator Evaluation Board kit includes:
-MIC22950 10A Synchronous Buck Regulator Evaluation Board
-Important Information Sheet
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MIC22950 Evaluation Board User's Guide | User Guide | Download | ||
| MIC22950 10A Synch Buck Reg Eval Board (ADM00823) BOM | Board Design Files | Download | ||
| MIC22950 10A Synch Buck Reg Eval Board (ADM00823) Schematic | Board Design Files | Download | ||
| MIC22950 10A Synch Buck Reg Eval Board (ADM00823) Gerber Files | Board Design Files | Download | ||
| MIC22950 - 10A Integrated Switch Synch Buck Reg with Freq Programmable to 2MHz | Data Sheets | Download |
