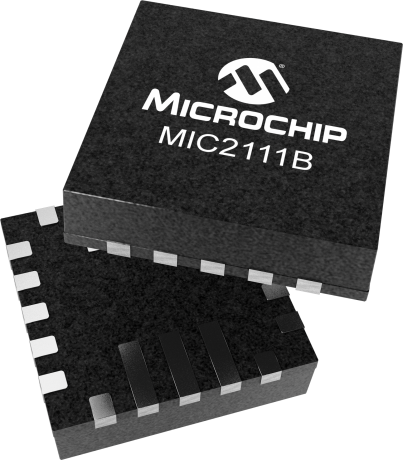

product primary image

MIC2111B

5V, 2MHZ High Performnace Driverless PWM Controller

Status: In Production

Features:

  • Single 3.3V or 5V supply
  • Supports load currents up to 40A
  • Programmable valley-current/voltage-mode PWM architecture
  • 3.3V logic PWM output compatible with power-stage modules and DrMOS modules
  • Single tri-state PWM output
  • Programmable switching frequency: 200kHz to 2MHz
  • Differential remote sensing for output voltage and inductor current
  • 0.6V reference voltage with total ±1% accuracy for output
  • Adjustable soft-start/soft-stop and pre-biased safe startup
  • Supports light load and outside audio modes
  • Programmable slope compensation and loop compensation
  • Enable input, power-good (PG) output for sequencing
  • Programmable OCP, output OVP, thermal OTP, and dedicated FAULTb pin for system safe startup/stop
  • Internal thermal shutdown and UVLO
  • -40°C to +125°C junction temperature range
  • Available in 20-pin 3mm x 3mm TQFN package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

MIC2111B is a programmable-frequency, valley-current/voltage-mode PWM controller that provides the control and protection features necessary for power devices and drivers that use current sensing across the inductor. The MIC2111B can provide single tri-state PWM logic signal to work with either power-stage modules or discrete driver and MOSFETs. The device has precision enable and power-good (PG) functions for sequencing of multiple power supplies. In addition, the solution is compatible with intelligent power stages in a high-current, step-down DC/DC converter.To optimize system size and system efficiency, the MIC2111B frequency can be programmed from 200kHz to 2MHz. The device operates in power-saving mode at light loads by reducing frequency. Optional outside audio range operation is possible when the power-stage is configured in light load mode. The solution uses differential current sensing for better current-limit accuracy and a dedicated differential amplifier for remote output sensing for accurate output voltage control. The MIC2111B has a high-gain transconductance amplifier for loop compensation. External slope compensation can be added through a resistor to avoid sub-harmonic oscillations. Other features include programmable OCP, output OVP, and thermal OTP protections. The MIC2111B offers proprietary bi-directional, single wire fault communication for total system protection.The MIC2111B is available in a 20-pin 3mm x 3mm TQFN package and has a junction temperature range of -40°C to +125°C.

Additional Features
      • Single 3.3V or 5V supply
      • Supports load currents up to 40A
      • Programmable valley-current/voltage-mode PWM architecture
      • 3.3V logic PWM output compatible with power-stage modules and DrMOS modules
      • Single tri-state PWM output
      • Programmable switching frequency: 200kHz to 2MHz
      • Differential remote sensing for output voltage and inductor current
      • 0.6V reference voltage with total ±1% accuracy for output
      • Adjustable soft-start/soft-stop and pre-biased safe startup
      • Supports light load and outside audio modes
      • Programmable slope compensation and loop compensation
      • Enable input, power-good (PG) output for sequencing
      • Programmable OCP, output OVP, thermal OTP, and dedicated FAULTb pin for system safe startup/stop
      • Internal thermal shutdown and UVLO
      • -40°C to +125°C junction temperature range
      • Available in 20-pin 3mm x 3mm TQFN package
Parametrics
Name
Value
Supported Topologies
Buck
Supported Outputs
1
Minimum Input Voltage (V)
3.3
Maximum Input Voltage (V)
5
PFM, Discontinuous, Hyperlight load, or Skip Mode
True
Typical Tolerance (%)
1
Operating Frequency (Hz)
200k - 2M
External Clock Sync
False
Power Good Signal
True
Soft Start
False
Internal Compensation
False
Internal Voltage Bias
False
Enable Pin
False
Current Limit / Short Circuit Protection
False

Documents

Jump to:

Brochures


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2111BYMT-T5
0.120800
20
WQFN
3x3x0.6mm
Matte Tin
e3
MIC2111BYMT-TR
0.120800
20
WQFN
3x3x0.6mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
