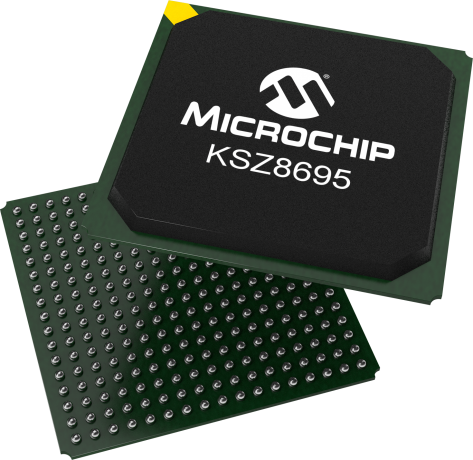

product primary image

KSZ8695

10/100 Base-T/TX 5-Port Ethernet SoC Controller with ARM9 Core

Status: Not Recommended for new designs

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The CENTAUR KS8695X, Multi-Port Gateway-on-a-Chip, delivers a high level of networking integration and performance for accelerating broadband gateway development. Key components integrated in the KS8695X include: Integrated Layer 2 managed switch with five Fast Ethernet transceivers and patented mixed-signal low power technology, five media access control (MAC) units, a high-speed non-blocking switch fabric, a dedicated address look-up engine, an on-chip frame buffer memory, and LED controls. One port is partitioned for WAN interface with the other four ports for LAN access. Also integrated is a 166MHz ARM™ (ARM992T) processor with memory management unit (MMU) and 8KB I-cache and 8KB dCache. Shared programmable 8/16/32-bit data bus and 22-bit address bus with up to 64MB total memory space for SDRAM, ROM, Flash, SRAM, and all peripheral devices. Other peripheral support logic including GPIO, a watchdog timer, an interrupt controller, and a JTAG debugging interface. Complete hardware and software reference designs are available. The KS8695X represents a total solution optimized for broadband gateway system development and renders speedy routing performance and connectivity interfaces for value-added networking expansions.

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
  • ARM922T High-Performance CPU Core
  • XceleRouter™ Technology
  • Integrated Ethernet Transceivers and Switch Engine
  • Memory and External I/O Interfaces
  • WAN and LAN DMA Engines and FIFO
  • Memory and External I/O Interfaces
  • WAN and LAN DMA Engines and FIFO
  • Peripheral Support
  • Power Management
  • System Design
  • Reference HW/SW Evaluation Kit
  • Commercial Temperature Range: 0°C to +70°C
  • Available in 208-Pin PQFP
Parametrics
Name
Value
Description
10/100 5-Port Ethernet SoC Controller w/ ARM9 Core
Ethernet Bandwidth
10/100Mbps
MAC
Yes
PHY
Yes
TX/RX RAM Buffer(Bytes)
8k
LEDs
6
# Ethernet Ports
5
Temp. Range Max. (°C)
70
# of Ether Ports
5
Fiber Support
Yes
Interface
8/16/32-bit, MII
Vdd I/O (V)
3.3
WOL
Yes

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Ethernet Bandwidth
Interface
Price 5K
10Mbps
SPI
$2.03
10/100Mbps
SPI, Parallel
$2.60
10/100Mbps
SPI, Parallel
$2.81
10/100Mbps / FX
8-bit or 16-bit
$3.97
10/100Mbps
8-bit or 16-bit
$13.42
10/100Mbps
8/16/32-bit, MII
$7.99
10/100Mbps
8/16/32-bit
$5.36
10/100Mbps
8-/16-/32-bit or SPI
$2.42
10/100/1000Mbps
8/16-bit
$19.15
10/100Mbps
32 bit Host Bus
$18.24
10/100Mbps
HSIC
$5.87
10/100Mbps
16 bit Host Bus
$6.18
10/100Mbps
16-bit or 32-bit
$8.26
10/100Mbps
16 bit Host Bus
$8.43
10/100Mbps
16-bit or 32-bit
$13.48
10/100Mbps
16-bit or 32-bit
$17.30
10/100Mbps
16 bit PCMCIA and Host Bus
$12.84
10/100Mbps
16-bit or 32-bit
$16.55
10Mbps
16 bit PCMCIA and Host Bus
$10.83
10/100Mbps
16 bit Host Bus
$5.20
10/100Mbps
16 bit
$6.26
10/100Mbps
16 bit Host Bus, MII
$7.42
10/100Mbps
16 bit Host Bus, MII
$10.67
10/100Mbps
32 bit Host Bus
$13.37
10/100Mbps
16 bit Host Bus
$3.74
10/100Mbps
16 bit Host Bus
$4.67
10/100Mbps
8/16-bit Host Bus or SPI
$3.87
10/100Mbps
32 bit PCI 3.0
$3.02

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
KSZ8695P
1.163900
3.071429
289
PBGA
19x19x2.36mm
SAC405
e1
KSZ8695PI
1.163900
3.071429
289
PBGA
19x19x2.36mm
SAC405
e1
KSZ8695PX
1.163900
3.071429
289
PBGA
19x19x2.36mm
SAC405
e1
KSZ8695X
5.407700
10.916667
208
PQFP
28x28x3.32mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
