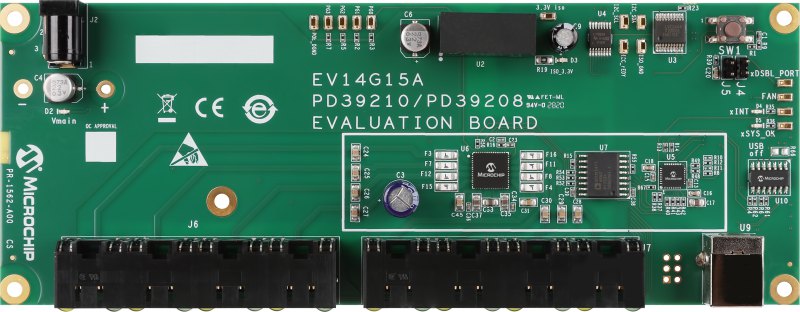

The EV14G15A evaluation board is developed based on PD39208 and PD39210 chipsets. This EVB demonstrates the operation of an eight (2-pair) port system. Microchip's PD39208 Power over Ethernet (PoE) manager IC integrates power, analog, and state-of-the-art logic into a single 56-pin, plastic QFN package. The device is used in Ethernet switches and midspans to allow network devices to share power and data over the same cable. The PD39208 device is an 8-port mixed-signal and high-voltage PoE driver. Together with the PD39210 external MCU, it performs as an IEEE 802.3at PSE system in a compact footprint. The evaluation board enables PoE designers to evaluate Microchip's PoE solution with flexibility and easy configuration.
- Eight port IEEE 802.3at PSE system
- Two RJ45 gangs (each contains four RJ45 connectors)
- Switch domain isolated from PoE domain
- Switch domain USB interface to be connected to a PC with Microchip GUI
- PoE controller manual reset & serial communication setting
- LED status indication for all ports (LED stream)
- Requires only single power source
- 0 °C to 40 °C operating temperature
- RoHS compliant
