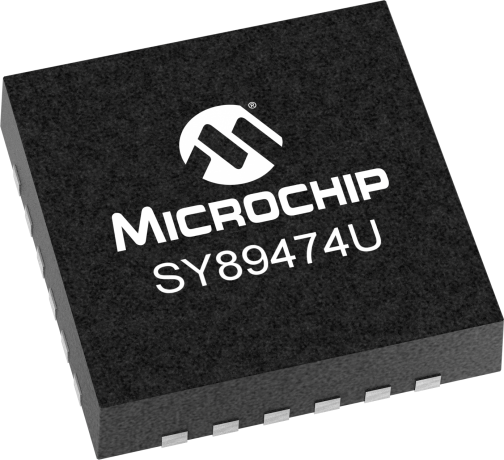

SY89474U

Status: In Production

Features:

  • Selects between two input channels and provides two copies of the selected input
  • DC to 2.5Gbps data throughput
  • DC to 2.5GHz fMAX (clock)
  • <470ps In-to-Out tpd
  • <150ps tr/tf
  • <20ps output-to-output skew
  • Unique, patent-pending input isolation design minimizes crosstalk
  • <1psRMS random jitter
  • <10psPP deterministic jitter
  • <1psRMS cycle-to-cycle jitter
  • <10psPP total jitter (clock)
  • <0.7psRMS crosstalk induced jitter
  • Unique patent-pending input termination and VT pin accepts DC- and AC-coupled inputs (CML, PECL, LVDS)
  • 325mV LVDS output swing
  • 2.5V ±5% supply voltage
  • -40°C to +85°C industrial temperature range
  • Available in 24-pin (4mm x 4mm) QFN package
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The SY89474U is a 2.5V precision, high-speed 2:1 differential MUX capable of processing clocks up to 2.5GHz and data up to 2.5Gbps.The differential input includes Micrel's unique, 3-pin input termination architecture that directly interfaces to any differential signal (AC- or DC-coupled) as small as 100mV (200mVPP) without any level shifting or termination resistor networks in the signal path. The output is 325mV LVDS with fast rise/fall times guaranteed to be less than 150ps.The SY89474U operates from a 2.5V ±5% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. The SY89474U is part of Micrel's highspeed, Precision Edge® product line. For multiple clock switchover solutions, please refer to the SY89840U - SY89845U family.

Additional Features
    • Selects between two input channels and provides two copies of the selected input
    • Guaranteed AC performance over temperature and supply voltage:
      • DC to 2.5Gbps data throughput
      • DC to 2.5GHz fMAX (clock)
      • <470ps In-to-Out tpd
      • <150ps tr/tf
      • <20ps output-to-output skew
    • Unique, patent-pending input isolation design minimizes crosstalk
    • Ultra-low jitter design:
      • <1psRMS random jitter
    • <10psPP deterministic jitter
    • <1psRMS cycle-to-cycle jitter
    • <10psPP total jitter (clock)
    • <0.7psRMS crosstalk induced jitter
    • Unique patent-pending input termination and VT pin accepts DC- and AC-coupled inputs (CML, PECL, LVDS)
    • 325mV LVDS output swing
    • 2.5V ±5% supply voltage
    • -40°C to +85°C industrial temperature range
    • Available in 24-pin (4mm x 4mm) QFN package
Parametrics
Name
Value
Product Type
Multiplexers
Description
2:02
Input
ANY
Output
LVDS
Supply Voltage
2.5V
Max Freq (GHz)
2.5
Max Data (Gbps)
2.5
Max Prop Delay (ps)
470
Icc (mA)
80
Max Within Device Skew (ps)
20
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
Single
Output Type
LVDS
Output Voltage
2.5V

Documents

Jump to:

Data Sheets


457KB

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89474UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
SY89474UMG-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
