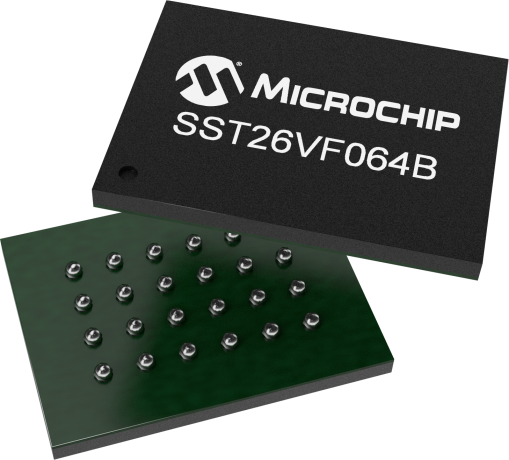

product primary image

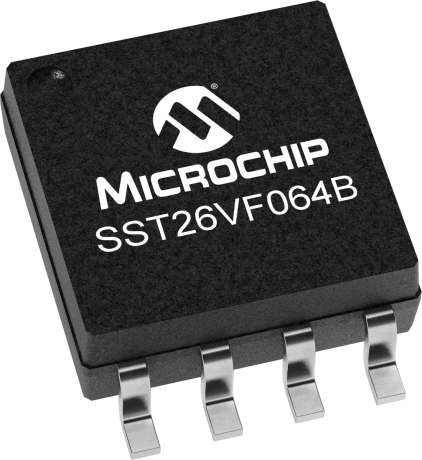

SST26VF064B

64Mb 2.3-3.6V Serial Quad I/O (SQI) Flash

Status: In Production

Features:

  • Serial Interface Architecture- Nibble-wide multiplexed I/O’s with SPI-like serial command structure: Mode 0 and Mode 3
  • x1/x2/x4 Serial Peripheral Interface (SPI) Protocol and SQI protocol
  • Burst Modes- Continuous linear burst, 8/16/32/64 Byte linear burst with wrap-around
  • Page-Program- 256 Bytes per page in x1 or x4 mode
  • Flexible Erase Capability- Uniform 4 KByte sectors, Four 8 KByte top and bottom parameter overlay blocks, One 32 KByte top and bottom overlay block, Uniform 64 KByte overlay blocks
  • Software Write Protection- Individual Block-Locking: 64 KByte blocks, two 32 KByte blocks, and eight 8 KByte parameter blocks
  • Low Power Consumption: Active Read current: 15 mA (typical @ 104 MHz), Standby Current: 15 µA (typical)
  • Serial Flash Discoverable Parameters (SFDP)
  • Industrial -40ºC to +85ºC and Extended -40ºC to +105ºC
  • Packages Available: 8-contact WDFN (6mm x 5mm), 8-lead SOIC (208 mil), 16-lead SOIC (300 mil), 24-ball TBGA (6mm x 8mm)
  • All devices are RoHS compliant
  • Automotive Grade 2 and 3 available
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The SST26VF064B Serial Quad I/O (SQI) flash device utilizes a 4-bit multiplexed I/O serial interface to boost performance while maintaining the compact form factor of standard serial flash devices. SST26VF064B also support full command-set compatibility to traditional Serial Peripheral Interface (SPI) protocol. Operating at frequencies reaching 104 MHz, the SST26VF064B enables minimum latency execute-in-place (XIP) capability without the need for code shadowing on an SRAM. The device’s high performance and reliability make it the ideal choice for Network Appliance, DSL and Cable Modems, Wireless Lan, Computing, Digital TV, Smart Meter, Server, Set Top Box, Automotive and other Industrial applications. Further benefits are achieved with SST’s proprietary, high-performance CMOS SuperFlash® technology, which significantly improves performance and reliability, and lowers power consumption for high bandwidth, compact designs.

The SST26VF064B default at power up is with WP# and HOLD pins enable and SIO2 and SIO3 pins disable allowing for SPI protocol operations without register configuration.
The SST26VF064BA default at power up with WP# and HOLD pins disable and SIO2 and SIO3 pins enable allowing for Quad I/O operations without register configuration.

Additional Features
    • Serial Interface Architecture- Nibble-wide multiplexed I/O’s with SPI-like serial command structure: Mode 0 and Mode 3

    • x1/x2/x4 Serial Peripheral Interface (SPI) Protocol and SQI protocol

    • Burst Modes- Continuous linear burst, 8/16/32/64 Byte linear burst with wrap-around

    • Page-Program- 256 Bytes per page in x1 or x4 mode

    • Flexible Erase Capability- Uniform 4 KByte sectors, Four 8 KByte top and bottom parameter overlay blocks, One 32 KByte top and bottom overlay block, Uniform 64 KByte overlay blocks

    • Software Write Protection- Individual Block-Locking: 64 KByte blocks, two 32 KByte blocks, and eight 8 KByte parameter blocks

    • Low Power Consumption: Active Read current: 15 mA (typical @ 104 MHz), Standby Current: 15 µA (typical)

    • Serial Flash Discoverable Parameters (SFDP)
    • Temperature options:

      • Industrial -40ºC to +85ºC and Extended -40ºC to +105ºC

    • Packages Available: 8-contact WDFN (6mm x 5mm), 8-lead SOIC (208 mil), 16-lead SOIC (300 mil), 24-ball TBGA (6mm x 8mm)

    • All devices are RoHS compliant

    • Automotive Grade 2 and 3 available

    Parametrics
    Name
    Value
    Density
    64 Mbit
    Op. Volt Range (V)
    2.3 to 3.6
    Max. Clock Freq.
    104 MHz
    Page Size (bytes)
    256
    Write Protect
    Full Array
    Temp Range (°C)
    See Data Sheet for Specific Temperature Range
    Endurance
    100,000
    Data Retention (Years)
    100
    Bus Modes
    SPI,SDI,SQI

    Documents

    Jump to:

    Supporting Collateral

    Software Libraries/Firmware

    Development Environment

    • Production Programmers
    • Demo & Evaluation Boards
    • Code Examples
    Production Programmers
    MPLAB PM3 Universal Device Programmer
    MPLAB PM3 Universal Device Programmer ( DV007004 )

    The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

    • Socket: AC164312   PartNo: SST26VF064B (8SM)
    • Socket: AC164302   PartNo: SST26VF064B (16SO)
    • Socket: AC164419   PartNo: SST26VF064B (24TD)
    Learn More
    Add To Cart
    Softlog SEC-DS Secure Programming Upgrade for ICP2 Programmers
    Softlog SEC-DS Secure Programming Upgrade for ICP2 Programmers ( SW500090 )

    The Softlog SEC-DS Secure Programming Upgrade is a "Secure Programming" extension for the ICP2 and ICP2(HC) programmers that provides several layers of protection--utilizing breakthrough technology--dramatically reducing the risk of unauthorized reconstruction of hex data and limiting how many times a hex file can be programmed. Secure programming operates on two levels: the ADMIN level and the...

    Learn More
    Add To Cart
    Softlog SEC4CH-DS Secure Programming Upgrade for ICP2GANG Programmers
    Softlog SEC4CH-DS Secure Programming Upgrade for ICP2GANG Programmers ( SW500091 )

    The Softlog SEC4CH-DS Secure Programming Upgrade is a "Secure Programming" extension for the ICP2GANG programmer that provides several layers of protection--utilizing breakthrough technology--dramatically reducing the risk of unauthorized reconstruction of hex data and also limiting how many times a hex file can be programmed. Secure programming operates on two levels: the ADMIN level and the USER...

    Learn More
    Add To Cart
    Softlog ICP2(G3) ICSP Production Programmer
    Softlog ICP2(G3) ICSP Production Programmer ( TPG100001-G3 )

    The ICP2(G3) Production Quality In-Circuit Programmer is a cost-effective programmer that operates with a PC or as a standalone unit. It programs 8-bit PIC® / AVR® MCUs and Serial EEPROMs & Flash ICs. ICP2(G3) hardware is designed to support popular programming interfaces (ICSP™, JTAG, SWD, UPDI, SPI, QSPI, etc.)

    Learn More
    Add To Cart
    Softlog ICP2(G3)-DP ICSP Production Programmer
    Softlog ICP2(G3)-DP ICSP Production Programmer ( TPG100002-G3 )

    The ICP2(G3)-DP Production Quality In-Circuit Programmer is a cost-effective programmer that operates with a PC or as a standalone unit. It programs 8-bit PIC® & AVR® MCUs, 16-bit PIC MCUs & dsPIC® DSCs and Serial EEPROMs & Flash ICs. ICP2(G3)-DP hardware is designed to support popular programming interfaces (ICSP™, JTAG, SWD, UPDI, SPI, QSPI,

    ...

    Learn More
    Add To Cart
    Softlog ICP2GANG(G3)-DP 4-Channel ICSP Production Gang Programmer
    Softlog ICP2GANG(G3)-DP 4-Channel ICSP Production Gang Programmer ( TPG100004-G3 )

    The ICP2GANG(G3)-DP Production Quality In-Circuit 4-channel (expandable to 64 channels) GANG programmer is a cost-effective programmer that operates with a PC or as a standalone unit and simultaneously programs 8-bit PIC® & AVR® MCUs, 16-bit PIC MCUs & dsPIC® DSCs, and serial EEPROMs & Flash ICs. ICP2GANG(G3)-DP hardware is designed to support popular programming

    ...

    Learn More
    Add To Cart
    Softlog ICP2GANG(G3) 4-Channel ICSP Production Gang Programmer
    Softlog ICP2GANG(G3) 4-Channel ICSP Production Gang Programmer ( TPG100005-G3 )

    The ICP2GANG(G3) Production Quality In-Circuit 4-channel (expandable to 64 channels) GANG programmer is a cost-effective programmer that operates with a PC or as a standalone unit and simultaneously programs 8-bit PIC® & AVR® MCUs and serial EEPROMs & Flash ICs. ICP2GANG(G3) hardware is designed to support popular programming interfaces (ICSP™, JTAG, SWD, UPDI, SPI, QSPI,

    ...

    Learn More
    Add To Cart
    Softlog ICP2GANG(G3)-DS ICSP Secure Production Gang Programmer
    Softlog ICP2GANG(G3)-DS ICSP Secure Production Gang Programmer ( TPG100006-G3 )

    The ICP2GANG(G3)-DS Production Quality ICSP Secure GANG Programmer is a 4-channel in-circuit programmer (expandable up to 64 channels) that operates with a PC or as a standalone unit and simultaneously programs 8-bit PIC® & AVR® MCUs and serial EEPROMs & Flash ICs. The secure programming feature dramatically reduces the risk of unauthorized

    ...

    Learn More
    Add To Cart
    Softlog ICP2(G3)-DS ICSP Secure Production Programmer
    Softlog ICP2(G3)-DS ICSP Secure Production Programmer ( TPG100007-G3 )

    The ICP2(G3)-DS Production Quality Secure Programmer is an in-circuit programmer that operates with a PC or as a standalone unit, and programs 8-bit PIC® & AVR® MCUs and serial EEPROMs & Flash ICs. The secure programming feature dramatically reduces the risk of unauthorized reconstruction of hex files, and also limits how many times the hex file can be programmed. ICP2(G3)-DS

    ...

    Learn More
    Add To Cart
    Softlog ICP2(HC) ICSP High-Current Production Programmer
    Softlog ICP2(HC) ICSP High-Current Production Programmer ( TPG100008 )

    The Softlog ICP2(HC) Production Quality In-Circuit High Current Programmer is a cost-effective programmer that operates with a PC or as a standalone unit.

    Note: All technical support and warranty service will be provided by Softlog. You can contact them at support@softlog.com.

    Learn More
    Add To Cart
    Softlog ICP2PORT(G3) Portable In-Circuit Production Programmer
    Softlog ICP2PORT(G3) Portable In-Circuit Production Programmer ( TPG100009-G3 )

    A member of the ICP(G3) family of high-speed, production-grade in-circuit programmers. This compact, battery-powered device supports up to six different programming environments, making it an ideal, low-cost solution for field upgrades. ICP2PORT(G3) programs Microchip 8-bit PIC® & AVR® MCUs and Serial EEPROMs & Flash ICs. ICP2PORT(G3) hardware is designed to support popular

    ...

    Learn More
    Add To Cart
    Softlog ICP2PORT(G3)-P Portable In-Circuit Production Programmer
    Softlog ICP2PORT(G3)-P Portable In-Circuit Production Programmer ( TPG100010-G3 )

    A member of the ICP(G3) family of high-speed, production-grade in-circuit programmers. This compact, battery-powered device supports up to six different programming environments, making it an ideal, low-cost solution for field upgrades. ICP2PORT(G3)-P programs Microchip 8-bit PIC® & AVR® MCUs, 16-bit PIC MCUs & dsPIC® DSCs and Serial EEPROMs & Flash ICs. ICP2PORT(G3)-P

    ...

    Learn More
    Add To Cart
    Softlog ICP2PORT(G3)-PX Portable In-Circuit Production Programmer
    Softlog ICP2PORT(G3)-PX Portable In-Circuit Production Programmer ( TPG100011-G3 )

    A member of the ICP(G3) family of high-speed, production-grade in-circuit programmers. This compact, battery-powered device supports up to six different programming environments, making it an ideal, low-cost solution for field

    ...

    Learn More
    Add To Cart
    Softlog ICP2(G3)-DPX ICSP Production Programmer
    Softlog ICP2(G3)-DPX ICSP Production Programmer ( TPG100012-G3 )

    The ICP2(G3)-DPX Production Quality In-Circuit Programmer is a cost-effective programmer that operates with a PC or as a standalone unit. It programs 8-bit PIC® & AVR® MCUs, 16-bit PIC MCUs & dsPIC® DSCs, 32-bit PIC & ARM Cortex M0/0+/23/3/4/7 MCUs and Serial EEPROMs & Flash ICs. ICP2(G3)-DPX hardware is designed to support popular programming interfaces

    ...

    Learn More
    Add To Cart
    Softlog ICP2GANG(G3)-DPX ICSP 4-Channel Gang Programmer
    Softlog ICP2GANG(G3)-DPX ICSP 4-Channel Gang Programmer ( TPG100013-G3 )

    The ICP2GANG(G3)-DPX Production Quality In-Circuit 4-channel (expandable to 64 channels) GANG programmer is a cost-effective programmer that operates with a PC or as a standalone unit and simultaneously programs 8-bit PIC® & AVR® MCUs, 16-bit PIC MCUs & dsPIC® DSCs, 32-bit PIC & ARM Cortex M0/0+/23/3/4/7 MCUs and Serial EEPROMs & Flash ICs. ICP2GANG(G3)-DPX

    ...

    Learn More
    Add To Cart
    Softlog ICP2COMBO(G3)-DPX-8 8-Channel Gang Programmer
    Softlog ICP2COMBO(G3)-DPX-8 8-Channel Gang Programmer ( TPG100015-G3 )

    The ICP2COMBO(G3)-DPX-8 Production Quality In-Circuit (ICSP) 8-channel (expandable up to 64 channels) GANG Programmer is a cost-effective programmer that operates with a PC or as a standalone unit and simultaneously programs 8-bit PIC® & AVR® MCUs, 16-bit PIC MCUs & dsPIC® DSCs, 32-bit PIC & ARM Cortex M0/0+/23/3/4/7 MCUs and Serial EEPROMs & Flash

    ...

    Learn More
    Add To Cart
    Softlog ICP2COMBO(G3)-12 12-Channel Gang Programmer
    Softlog ICP2COMBO(G3)-12 12-Channel Gang Programmer ( TPG100016-G3 )

    The ICP2COMBO(G3)-12 Production Quality In-Circuit (ICSP) 12-channel (expandable up to 60 channels) GANG Programmer is a cost-effective programmer that operates with a PC or as a standalone unit and simultaneously programs 8-bit PIC® & AVR® MCUs and serial EEPROMs & Flash ICs. ICP2COMBO(G3)-12 hardware is designed to support popular programming interfaces (ICSP™, JTAG,

    ...

    Learn More
    Add To Cart
    Softlog ICP2COMBO(G3)-8 8-Channel Gang Programmer
    Softlog ICP2COMBO(G3)-8 8-Channel Gang Programmer ( TPG100017-G3 )

    The ICP2COMBO(G3)-8 Production Quality In-Circuit (ICSP) 8-channel (expandable up to 64 channels) GANG Programmer is a cost-effective programmer that operates with a PC or as a standalone unit and simultaneously programs 8-bit PIC® & AVR® MCUs and serial EEPROMs & Flash ICs. ICP2COMBO(G3)-8 hardware is designed to support popular programming interfaces (ICSP™, JTAG,

    ...

    Learn More
    Add To Cart
    Demo & Evaluation Boards
    SQI SuperFlash(R) Kit 1
    SQI SuperFlash(R) Kit 1 ( AC243009 )

    The SQI SuperFlash Kit 1 contains three Serial Flash Daughter Boards. The Serial Flash Daughter Board is an evaluation board designed to interface with the mikroBUS™ connector on the Explorer 16/32 Development Board (DM240001-2). It can also interface with the PICtail™ Plus connector that is located on the Explorer 16 Development Board (DM240001).

    Learn More
    Add To Cart

    Similar Devices

    Product
    Memory Size
    Memory Speed
    Package
    Price 5K
    64Mb
    104 MHz
    SOIC-16, SOIJ-8, TBGA-24, TDFN-8, TDFN-S-8
    $1.95
    64Mb
    104 MHz
    SOIC-16, SOIJ-8, TDFN-S-8
    $2.05
    64Mb
    104 MHz
    SOIJ-8, TDFN-S-8
    $2.52
    64Mb
    104 MHz
    SOIJ-8, TBGA-24, TDFN-S-8
    $2.18

    RoHS Information

    Part Number
    Device Weight (g)
    Shipping Weight (Kg)
    Lead Count
    Package Type
    Package Width
    Solder Composition
    JEDEC Indicator
    RoHS
    China EFUP
    SST26VF064B-104I/W70S
    0.000000
    0.000000
    0
    Wafer
    Varies
    -
    -
    SST26VF064B-104I/WF70S
    0.000000
    0.000000
    0
    Wafer
    Varies
    -
    -
    SST26VF064B-104I/S70S
    0.000000
    1000.000
    0
    DICE
    Varies
    -
    -
    SST26VF064B-104I/SM
    0.124400
    0.266667
    8
    SOIJ
    .208in
    Matte Tin
    e3
    SST26VF064B-104V/SM
    0.124400
    0.266667
    8
    SOIJ
    .208in
    Matte Tin
    e3
    SST26VF064BT-104I/SM
    0.124400
    0.379048
    8
    SOIJ
    .208in
    Matte Tin
    e3
    SST26VF064BT-104V/SM
    0.124400
    0.379048
    8
    SOIJ
    .208in
    Matte Tin
    e3
    SST26VF064B-104V/SM70SVAO
    0.124400
    0.266667
    8
    SOIJ
    .208in
    Matte Tin
    e3
    SST26VF064B-104I/TD
    0.000000
    0.666667
    24
    TBGA
    6x8x1.2mm
    SAC
    e1
    SST26VF064BT-104I/TD
    0.000000
    0.336000
    24
    TBGA
    6x8x1.2mm
    SAC
    e1
    SST26VF064B-104I/SO
    0.438000
    0.765957
    16
    SOIC
    .300In
    Matte Tin
    e3
    SST26VF064B-104V/SO
    0.438000
    0.765957
    16
    SOIC
    .300In
    Matte Tin
    e3
    SST26VF064BT-104I/SO
    0.438000
    0.800000
    16
    SOIC
    .300In
    Matte Tin
    e3
    SST26VF064BT-104V/SO
    0.438000
    0.800000
    16
    SOIC
    .300In
    Matte Tin
    e3
    SST26VF064B-104I/MN
    0.141500
    0.716667
    8
    TDFN-S
    6x8x0.8mm
    Matte Tin
    e3
    SST26VF064B-104V/MN
    0.141500
    0.716667
    8
    TDFN-S
    6x8x0.8mm
    Matte Tin
    e3
    SST26VF064BT-104I/MN
    0.141500
    0.250000
    8
    TDFN-S
    6x8x0.8mm
    Matte Tin
    e3
    SST26VF064BT-104V/MN
    0.141500
    0.250000
    8
    TDFN-S
    6x8x0.8mm
    Matte Tin
    e3
    SST26VF064B-104I/MF
    0.073800
    0.163265
    8
    TDFN-S
    6x5x0.8mm
    Matte Tin
    e3
    SST26VF064B-104V/MF
    0.073800
    0.163265
    8
    TDFN-S
    6x5x0.8mm
    Matte Tin
    e3
    SST26VF064BT-104I/MF
    0.073800
    0.200000
    8
    TDFN-S
    6x5x0.8mm
    Matte Tin
    e3
    SST26VF064BT-104V/MF
    0.073800
    0.200000
    8
    TDFN-S
    6x5x0.8mm
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
