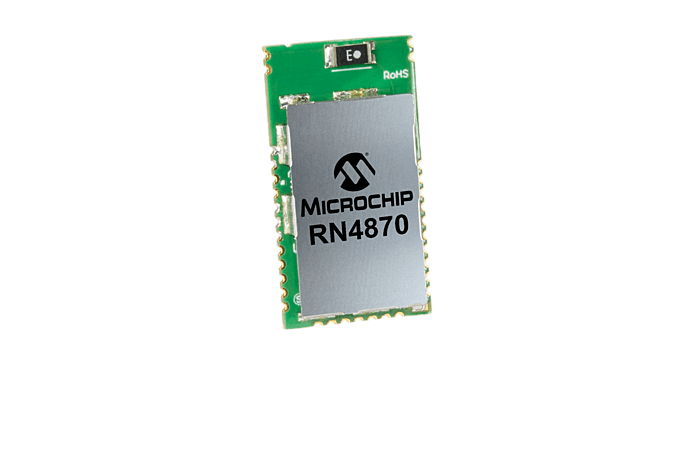

RN4870

Bluetooth Low Energy Module

Status: In Production

Features:

  • Bluetooth 5 Certified
  • Module certified for use in USA, Canada, Europe, Japan, Korea, Taiwan and China
  • Easy to use ASCII command interface for communication with the host microcontroller
  • Mobile Application supported in Microchip Bluetooth Data (MBD)
  • Latest Firmware Revision: 1.30
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The RN4870 Bluetooth Low Energy module is designed for easy implementation into a broad range of applications.  It delivers up to 2.5x throughput improvement and more secure connections vs. Bluetooth 4.1 based products.  Developers can easily interface to the device via a standard UART interface, available on most Microcontrollers and Processors.

The RN4870 has a completely integrated Bluetooth software stack, and offers a shielded regulatory certified version with built-in antenna.  Developers are freed from the complexities of Bluetooth Software and RF development and can simply utilize the RN4870 as a wireline replacement.  Perfect for IoT (Internet of Things) applications, when interfaced to a Bluetooth Low Energy enabled smartphone or Bluetooth Internet Gateway, applications can be monitored, controlled and updated from anywhere in the world.

The Microchip Bluetooth Data (MBD) mobile app is available to speed up development for both Android and iOS.

Microchip's complimentary and confidential Wireless Check online design review service is available for customers who have selected our products for their application design-in*.
*The online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Firmware Release Summary, see Software Release Notes for details:

RN4870-I(V)/RM140 - (FW 1.40.0) Fixes bug with random private addressing which created IOP issue with select Android devices. Added feature to turn off advertising at power-on in order to easily configure module with the host MCU before advertising. Available in industrial temperature range (I) and varying (V) for easier transition from RN4870-V/RM118.

RN4870-I/RM130 - (FW 1.30.0) Fixes bug with invalid Bluetooth address. Refer to Errata document for more information.

RN4870-I/RM128 - (FW 1.28.2) Introduces LE Secure Connections and Data Length Extension features among other bug fixes. Also improved the operating range to 85C.

RN4870-V/RM118 - (FW 1.18.3) Initial Release.

Additional Features
  • Bluetooth 5 Certified
  • Module certified for use in USA, Canada, Europe, Japan, Korea, Taiwan and China
  • Easy to use ASCII command interface for communication with the host microcontroller
  • Mobile Application supported in Microchip Bluetooth Data (MBD)
  • Latest Firmware Revision: 1.30
  • Supports LE Secure Connections levels 1-3
  • Supports up to 151 byte payloads with Data Length Extensions
  • White list for determining connections
  • Scripting features to allow for operation without a host microcontroller
  • MLDP compatibility with RN4020
  • Remote configuration capability
  • Antenna: Ceramic chip Antenna or external antenna connection
Parametrics
Name
Value
Bluetooth Low Energy
Yes
FCC Certified
Yes
No-shield Option
Yes
ASCII Interface
Yes
PWM
3
Memory Type
Flash
GPIO
12
Pin Count
33
Package Type
Surface mount module
Package Size
Shield 12 x 22 mm, Unshield 12x15mm
Min Temp Range
-40C
Max Temp Range
+85C
Op Voltage Min
1.9V
Op Voltage Max
3.6V

Documents

Jump to:

Board Design Files

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
AVR-BLE
AVR-BLE ( DT100111 )

The AVR-BLE development board makes eXtreme Low Power (XLP) wireless applications development quick and easy.
It combines a powerful AVR ATmega3208 microcontroller, an ATECC608A CryptoAuthentication™ secure element and the RN4870 Bluetooth Low Energy Module.

The board USB interface  provides a convenient serial port (virtual UART), the simplicity of drag and drop

...

Learn More
Add To Cart
PIC-BLE
PIC-BLE ( DT100112 )

The PIC-BLE development board makes wireless applications development quick and easy.
It combines an eXtreme Low Power (XLP) PIC16LF18456 microcontroller, an ATECC608A CryptoAuthentication™ secure element and the RN4870 Bluetooth Low Energy Module.

The board USB interface provides a convenient serial port (virtual UART), the simplicity of drag and drop programming, but...

Learn More
Add To Cart
RN4870 Sensor Board
RN4870 Sensor Board ( RN-4870-SNSR )

The RN-4870-SNSR is a development board based on the ultra-compact Bluetooth 4.2 Low Energy RN4870 module.  The RN4870 uses a simple ASCII command interface over the UART.  The board enables evaluation of the...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
RN4870-I/RM128
1.386364
33
MODULE
12x22mm
NiAu
e4
RN4870-I/RM130
1.386364
33
MODULE
12x22mm
NiAu
e4
RN4870U-V/RM118
1.286765
30
MODULE
12x15mm
NiAu
e4
RN4870-V/RM118
1.386364
33
MODULE
12x22mm
NiAu
e4
RN4870-I/RM140
1.386364
33
MODULE
12x22mm
NiAu
e4
RN4870-V/RM140
1.386364
33
MODULE
12x22mm
NiAu
e4
