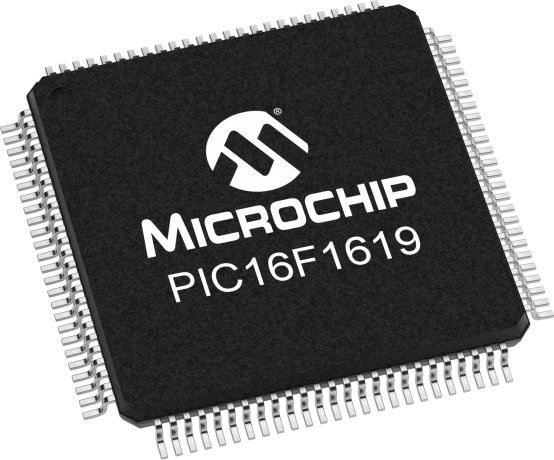

product primary image

PIC16F1619

Status: In Production

Features:

  • Flash Program Memory with self read/write capability
  • Enhanced Mid-Range Core, Internal 32MHz oscillator
  • 128 B of Non-volatile Data Storage
  • 2 x Analog Comparators
  • 2 x 10-bit PWM
  • 2 x Capture-Compare-PWM (CCP)
  • 8 x 10-bit Analog-to-Digital Converter (ADC) with voltage reference
  • Complementary Waveform Generator (CWG):
  • Zero Cross Detection (ZCD)
  • CRC:  16-bit with DMA
  • Math Accelerator
  • 2 x 24-bit Signal Measurement Timer (SMT)
  • 3 x Hardware Limit Timer (HLT)
  • Angular Timer
  • Window Watchdog Timer (WWDT)
  • High Current Source/Sink: 2 x 100mA I/O
  • Power-On Reset (POR), Brown-Out Reset (BOR)
  • In Circuit Serial Programming (ICSP)
  • Wide Operating Voltage of PIC16F1619 variant (2.3V – 5.5V)
  • Enhanced Low-Voltage PIC16LF1619 variant (1.8V - 3.6V)
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

PIC16(L)F161X microcontrollers deliver on-chip features that are unique to the design for embedded control of small motors and general purpose applications in 8 / 14 / 20 pin count packages.   Features like 10-bit A/D, CCP, 24-bit SMT, Zero Cross Detection offer an excellent solution to variety of applications.  The product family also has a CRC + memory scan and Window WDT to support safety critical systems in home appliances, white goods and other end equipment.

Additional Features
    • Flash Program Memory with self read/write capability
    • Enhanced Mid-Range Core, Internal 32MHz oscillator
    • High Endurance Flash Memory (HEF)
      • 128 B of Non-volatile Data Storage
    • 2 x Analog Comparators
    • 2 x 10-bit PWM
    • 2 x Capture-Compare-PWM (CCP)
    • 8 x 10-bit Analog-to-Digital Converter (ADC) with voltage reference
    • Complementary Waveform Generator (CWG):
    • Zero Cross Detection (ZCD)
    • CRC:  16-bit with DMA
    • Math Accelerator
    • Timers:
      • 2 x 24-bit Signal Measurement Timer (SMT)
      • 3 x Hardware Limit Timer (HLT)
      • Angular Timer
      • Window Watchdog Timer (WWDT)
    • High Current Source/Sink: 2 x 100mA I/O
    • Power-On Reset (POR), Brown-Out Reset (BOR)
    • In Circuit Serial Programming (ICSP)
    • Wide Operating Voltage of PIC16F1619 variant (2.3V – 5.5V)
    • Enhanced Low-Voltage PIC16LF1619 variant (1.8V - 3.6V)
      Parametrics
      Name
      Value
      Program Memory Type
      Flash
      Program Memory Size (KB)
      14
      CPU Speed (MIPS/DMIPS)
      8
      SRAM Bytes
      1,024
      Digital Communication Peripherals
      1-UART, 1-SPI, 1-I2C
      Capture/Compare/PWM Peripherals
      2 Input Capture, 2 CCP,
      Timers
      4 x 8-bit, 3 x 16-bit
      ADC Input
      12 ch, 10-bit
      Number of Comparators
      2
      Temperature Range (C)
      -40 to 125
      Operating Voltage Range (V)
      1.8 to 5.5
      Pin Count
      20
      Low Power
      Yes

      Documents

      Jump to:

      Programming Specification

      Application Notes

      Download All
      07/30/2012
      1414KB

      Applications Source code

      02/25/2014
      3307KB
      11/25/2014
      5KB
      08/13/2014
      197KB
      05/30/2017
      3028KB
      02/09/2016
      1497KB
      09/09/2015
      1144KB
      01/21/2016
      684KB
      01/21/2016
      417KB
      01/28/2016
      405KB
      02/17/2016
      1760KB

      Code Examples

      12/15/2009
      6KB

      Product Document

      Tips and Tricks

      Development Environment

      • Demo & Evaluation Boards
      • Emulators & Debuggers
      • Programmers
      • Code Examples
      • Application Examples
      Demo & Evaluation Boards
      PIC16(L)F1619 Emulation Extension Pak
      PIC16(L)F1619 Emulation Extension Pak ( AC244066 )

      The PIC16(L)F1619 Emulation Extension Pak (Part # AC244066) is a cost effective in-circuit emulator system designed to assist with the most complex code debugging jobs. This advanced development/debugging tool includes an Emulation Header board, Trace Cable, Trace Adapter Board, and gold header pins, and is intended to be paired with MPLAB REAL ICE. It is the first in a series of Emulation...

      Learn More
      Add To Cart
      Curiosity
      Curiosity ( DM164137 )

      Satisfy Your Curiosity
      Your next embedded design idea has a new home. Curiosity is a cost-effective, fully integrated 8-bit development platform targeted at first-time users, Makers, and those seeking a feature-rich rapid prototyping board. Designed from the ground-up to take full advantage of Microchip's MPLAB X development environment, Curiosity includes an integrated programmer/debugger,...

      Learn More
      Add To Cart
      Emulators & Debuggers
      MPLAB PICkit 4 In-Circuit Debugger
      MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

      Fast programming, increased functionality, at the same price as its predecessor.


      The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC® ,  dsPIC®, and CEC flash microcontrollers, using the powerful graphical user interface of MPLAB X Integrated Development Environment

      ...

      Learn More
      Add To Cart
      MPLAB ICD 4 In-Circuit Debugger
      MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

      The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), dsPIC® Digital Signal Controllers (DSCs), and CEC flash microcontrollers. This speed is provided by a SAME70 MCU with 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield faster

      ...

      Learn More
      Add To Cart
      PICkit 3 In-Circuit Debugger
      PICkit 3 In-Circuit Debugger ( PG164130 )
      (Not Recommended for new design)

      The PICkit 3 is not recommended for new designs. For new designs, please see the MPLAB PICKit 4.

      Microchip’s PICkit™ 3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer. In-circuit

      ...

      Learn More
      Add To Cart
      MPLAB ICD 3 In-Circuit Debugger
      MPLAB ICD 3 In-Circuit Debugger ( DV164035 )
      (Not Recommended for new design)

       The MPLAB ICD 3 is a mature product. For new designs, consider using the MPLAB ICD 4 (DV164045)

      MPLAB® ICD 3 In-Circuit Debugger System is Microchip's most cost effective high-speed hardware debugger/programmer for Microchip Flash Digital Signal Controller (DSC) and microcontroller

      ...

      Learn More
      Add To Cart
      MPLAB REAL ICE PROBE KIT
      MPLAB REAL ICE PROBE KIT ( DV244005 )
      (Not Recommended for new design)

      MPLAB REAL ICE In-Circuit Emulator System is Microchip’s next generation high speed emulator for Microchip Flash DSC® and MCU devices. It debugs and programs PIC® and dsPIC® Flash microcontrollers with the easy-to-use but powerful graphical user interface of the MPLAB Integrated Development Environment (IDE), included with each kit.
      The MPLAB REAL ICE probe is

      ...


      Learn More
      Add To Cart
      Programmers
      MPLAB PICkit 4 In-Circuit Debugger
      MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

      Fast programming, increased functionality, at the same price as its predecessor.


      The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC® ,  dsPIC®, and CEC flash microcontrollers, using the powerful graphical user interface of MPLAB X Integrated Development Environment

      ...

      Learn More
      Add To Cart
      MPLAB ICD 4 In-Circuit Debugger
      MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

      The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), dsPIC® Digital Signal Controllers (DSCs), and CEC flash microcontrollers. This speed is provided by a SAME70 MCU with 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield faster

      ...

      Learn More
      Add To Cart
      PICkit 3 In-Circuit Debugger
      PICkit 3 In-Circuit Debugger ( PG164130 )
      (Not Recommended for new design)

      The PICkit 3 is not recommended for new designs. For new designs, please see the MPLAB PICKit 4.

      Microchip’s PICkit™ 3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer. In-circuit

      ...

      Learn More
      Add To Cart
      MPLAB PM3 Universal Device Programmer
      MPLAB PM3 Universal Device Programmer ( DV007004 )

      The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

      • Socket: AC164301   PartNo: PIC16F1619 (20P)
      • Socket: AC164307   PartNo: PIC16F1619 (20SS)
      • Socket: AC164326   PartNo: PIC16F1619 (20ML)
      • Socket: AC164302   PartNo: PIC16F1619 (20SO)
      Learn More
      Add To Cart
      MPLAB ICD 3 In-Circuit Debugger
      MPLAB ICD 3 In-Circuit Debugger ( DV164035 )
      (Not Recommended for new design)

       The MPLAB ICD 3 is a mature product. For new designs, consider using the MPLAB ICD 4 (DV164045)

      MPLAB® ICD 3 In-Circuit Debugger System is Microchip's most cost effective high-speed hardware debugger/programmer for Microchip Flash Digital Signal Controller (DSC) and microcontroller

      ...

      Learn More
      Add To Cart
      MPLAB REAL ICE PROBE KIT
      MPLAB REAL ICE PROBE KIT ( DV244005 )
      (Not Recommended for new design)

      MPLAB REAL ICE In-Circuit Emulator System is Microchip’s next generation high speed emulator for Microchip Flash DSC® and MCU devices. It debugs and programs PIC® and dsPIC® Flash microcontrollers with the easy-to-use but powerful graphical user interface of the MPLAB Integrated Development Environment (IDE), included with each kit.
      The MPLAB REAL ICE probe is

      ...

      Learn More
      Add To Cart
      Code Examples

      Similar Devices

      Product
      Pins
      Flash (KB)
      RAM (B)
      Price 5K
      Notes
      8
      3.5
      256
      $0.56
      WWDT & CRC w/Scan
      14
      3.5
      256
      $0.60
      WWDT & CRC w/Scan
      14
      7
      512
      $0.70
      AngTMR & MathACC
      14
      14
      1,024
      $0.81
      AngTMR & MathACC
      20
      7
      512
      $0.74
      AngTMR & MathACC
      20
      14
      1,024
      $0.85
      AngTMR & MathACC

      RoHS Information

      Part Number
      Device Weight (g)
      Shipping Weight (Kg)
      Lead Count
      Package Type
      Package Width
      Solder Composition
      JEDEC Indicator
      RoHS
      China EFUP
      PIC16F1619-E/P
      1.512900
      2.833333
      20
      PDIP
      .300in
      Matte Tin
      e3
      PIC16F1619-I/P
      1.512900
      2.833333
      20
      PDIP
      .300in
      Matte Tin
      e3
      PIC16F1619-E/SO
      0.542000
      0.973684
      20
      SOIC
      .300in
      Matte Tin
      e3
      PIC16F1619-I/SO
      0.542000
      0.973684
      20
      SOIC
      .300in
      Matte Tin
      e3
      PIC16F1619T-I/SO
      0.542000
      0.311875
      20
      SOIC
      .300in
      Matte Tin
      e3
      PIC16F1619T-I/ML
      0.043100
      0.212121
      20
      QFN
      4x4x0.9mm
      Matte Tin
      e3
      PIC16F1619-E/ML
      0.043100
      0.076923
      20
      QFN
      4x4x0.9mm
      Matte Tin
      e3
      PIC16F1619-I/ML
      0.043100
      0.076923
      20
      QFN
      4x4x0.9mm
      Matte Tin
      e3
      PIC16F1619-ME2/PF
      0.497000
      2.333333
      100
      TQFP
      14x14x1mm
      Matte Tin
      e3
      PIC16F1619-E/SS
      0.164200
      0.343284
      20
      SSOP
      .209in
      Matte Tin
      e3
      PIC16F1619T-I/SS
      0.164200
      0.416250
      20
      SSOP
      .209in
      Matte Tin
      e3
      PIC16F1619T-E/SS
      0.164200
      0.416250
      20
      SSOP
      .209in
      Matte Tin
      e3
      PIC16F1619-I/SS
      0.164200
      0.343284
      20
      SSOP
      .209in
      Matte Tin
      e3
      PIC16F1619T-E/SSVAO
      0.164200
      0.416250
      20
      SSOP
      .209in
      Matte Tin
      e3
      PIC16F1619-E/GZ
      0.020700
      0.065934
      20
      UQFN
      4x4x0.5mm
      Matte Tin
      e3
      PIC16F1619-I/GZ
      0.020700
      0.065934
      20
      UQFN
      4x4x0.5mm
      Matte Tin
      e3
      PIC16F1619T-I/GZ
      0.020700
      0.181818
      20
      UQFN
      4x4x0.5mm
      Matte Tin
      e3
      PIC16F1619T-E/GZ
      0.020700
      0.181818
      20
      UQFN
      4x4x0.5mm
      Matte Tin
      e3
      To see a complete listing of RoHS data for this device, please Click here
      Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
