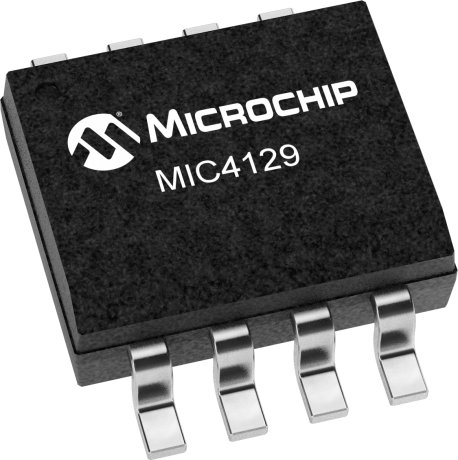

product primary image

MIC4129

6A Inverting Peak Low Side MOSFET Driver

Status: In Production

Features:

  • CMOS construction
  • Latch-up protected: will withstand >200mA reverse output current
  • Logic input withstands negative swing of up to 5V
  • Matched rise and fall times of 25ns
  • High peak output current at 6A
  • Wide operating range from 4.5V to 20V
  • High capacitive load drive of 10,000pF
  • Low delay time of 55ns typical
  • Logic high input for any voltage from 2.4V to VS
  • Low equivalent input capacitance (typ.) 6pF
  • Low supply current is 450µA with logic 1 input
  • Low output impedance is 2.5Ω
  • Output voltage swing within 25mV of ground or VS
  • Exposed backside pad packaging reduces heat
  • ePad SOIC-8L (θJA = 58°C/W)
  • 3mm x 3mm MLF®-8L (θJA = 60°C/W)
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

MIC4120 and MIC4129 MOSFET drivers are tough, efficient, and easy to use. The MIC4129 is an inverting driver, while the MIC4120 is a non-inverting driver. The MIC4120 and MIC4129 are improved versions of the MIC4420 and MIC4429. They are capable of 6A (peak) output and can drive the largest MOSFETs with an improved safe operating margin. The MIC4120/4129 accept any logic input from 2.4V to VS without external speed-up capacitors or resistor networks. Proprietary circuits allow the input to swing negative by as much as 5V without damaging the part. Additional circuits protect against damage from electrostatic discharge. MIC4120/4129 drivers can replace three or more discrete components, reducing PCB area requirements, simplifying product design, and reducing assembly cost. Modern BiCMOS/DMOS construction guarantees freedom from latch-up. The rail-to-rail swing capability insures adequate gate voltage to the MOSFET during power up/down sequencing.

Additional Features
    • CMOS construction
    • Latch-up protected: will withstand >200mA reverse output current
    • Logic input withstands negative swing of up to 5V
    • Matched rise and fall times of 25ns
    • High peak output current at 6A
    • Wide operating range from 4.5V to 20V
    • High capacitive load drive of 10,000pF
    • Low delay time of 55ns typical
    • Logic high input for any voltage from 2.4V to VS
    • Low equivalent input capacitance (typ.) 6pF
    • Low supply current is 450µA with logic 1 input
    • Low output impedance is 2.5Ω
    • Output voltage swing within 25mV of ground or VS
    • Exposed backside pad packaging reduces heat
      • ePad SOIC-8L (θJA = 58°C/W)
      • 3mm x 3mm MLF®-8L (θJA = 60°C/W)
Parametrics
Name
Value
MOSFET Driver Type
Low Side
Driver Type
Single
Configuration
Inverting
Peak Output Current (source/sink, A)
6.0/6.0
Output Resistance (source/sink, Ω)
5/5
Maximum Supply Voltage (V)
20
Propagation Delay (Td1/Td2, ns)
45/50
Rise/Fall Time (Tr/Tf, ns)
12/13
Capacitive Load Drive
2200 pF in 12 ns

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC4129YME
0.078000
0.185790
8
SOIC
3.9mm
Matte Tin
e3
MIC4129YME-TR
0.078000
0.700602
8
SOIC
3.9mm
Matte Tin
e3
MIC4129YML-TR
0.022900
0.802200
8
VDFN
3x3x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
