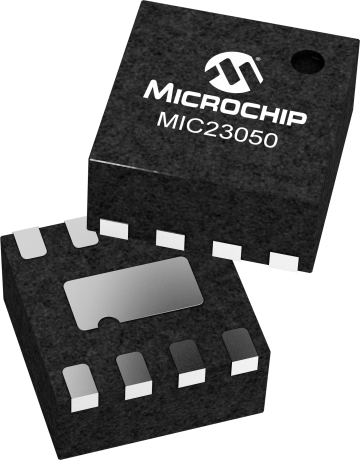

MIC23050

4MHz 600mA HyperLight Load® Synchronous Buck Regulator

Status: In Production

Features:

  • Input voltage range: 2.7V to 5.5V
  • 600mA output current
  • Fixed output voltage from 0.72V to 3.3V
  • Ultra fast transient response
  • 20µA typical quiescent current
  • 4MHz in PWM in constant current mode
  • 0.47µH to 2.2µH inductor
  • 25mVpp in HyperLight Load® mode
  • 3mV output voltage ripple in full PWM mode
  • >93% efficiency
  • ~89% at 1mA
  • MIcropower shutdown
  • -40°C to +125°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC23050 is a high efficiency 600mA PWM synchronous buck (step-down) regulator featuring HyperLight Load®, a patent pending switching scheme that offers best in class light load efficiency and transient performance while providing very small external components and low output ripple at all loads.

The MIC23050 has a very low typical quiescent current draw of 20µA and can achieve over 89% efficiency even at 1mA. The device allows operation with a tiny inductor ranging from 0.47µH or 2.2µH while using small output capacitors, enabling a sub 1mm height solution.

In contrast to traditional light load schemes HyperLight Load® architecture does not need to trade off control speed to obtain low standby currents and in doing so the device only needs a small output capacitor to absorb the load transient as the powered device goes from light load to full load.

At higher loads the MIC23050 provides a constant switching frequency of greater than 4MHz while providing peak efficiencies greater than 93%.

The MIC23050 comes in fixed output voltage options from 0.72V to 3.3V eliminating external feedback components.

Additional Features
    • Input voltage range: 2.7V to 5.5V
    • 600mA output current
    • Fixed output voltage from 0.72V to 3.3V
    • Ultra fast transient response
    • 20µA typical quiescent current
    • 4MHz in PWM in constant current mode
    • 0.47µH to 2.2µH inductor
    • Low voltage output ripple
      • 25mVpp in HyperLight Load® mode
      • 3mV output voltage ripple in full PWM mode
    • >93% efficiency
    • ~89% at 1mA
    • MIcropower shutdown
    • -40°C to +125°C junction temperature range
Parametrics
Name
Value
Regulator Type
Step Down (Buck)
# of Outputs
1
Input Voltage Range Min (V)
2.7
Input Voltage Range Max (V)
5.5
Output Voltage Range Min (V)
0.72
Output Voltage Range Max (V)
3.3
Output Current (mA) max
600
Quiescent Current (mA) typ
0.021
Switching Frequency (kHz)
4000
Synchronous Rectifier
Yes
Operating Temp Range
-40 to 125
Duty Cycle Max (%)
89
SHUTDOWN Current (µA) (Typ)
0.01
Light Load Efficiency Mode
Yes

Documents

Jump to:

Applications Source code

09/14/2017
362KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
MIC23050-4YML Evaluation Board
MIC23050-4YML Evaluation Board ( MIC23050-4YML-EV )

The MIC23050 is a 500mA 4MHz switching regulator with HyperLight Load® mode. The MIC23050 is highly efficient throughout the load range and only draws 20μA of quiescent current. The MIC23050 operates from a 2.7V to 5.5V input and features internal power MOSFETs that can supply up to 500mA of output current. It can operate with a maximum duty cycle of 90%.

Learn More
Add To Cart
MIC23050-CYML Evaluation Board
MIC23050-CYML Evaluation Board ( MIC23050-CYML-EV )

The MIC23050 is a 500mA 4MHz switching regulator with HyperLight Load® mode. The MIC23050 is highly efficient throughout the load range and only draws 20μA of quiescent current. The MIC23050 operates from a 2.7V to 5.5V input and features internal power MOSFETs that can supply up to 500mA of output current. It can operate with a maximum duty cycle of 90%.

Learn More
Add To Cart
MIC23050-GYML Evaluation Board
MIC23050-GYML Evaluation Board ( MIC23050-GYML-EV )

The MIC23050 is a 500mA 4MHz switching regulator with HyperLight Load® mode. The MIC23050 is highly efficient throughout the load range and only draws 20μA of quiescent current. The MIC23050 operates from a 2.7V to 5.5V input and features internal power MOSFETs that can supply up to 500mA of output current. It can operate with a maximum duty cycle of 90%.

Learn More
Add To Cart
MIC23050-SYML Evaluation Board
MIC23050-SYML Evaluation Board ( MIC23050-SYML-EV )

The MIC23050 is a 500mA 4MHz switching regulator with HyperLight Load® mode. The MIC23050 is highly efficient throughout the load range and only draws 20μA of quiescent current. The MIC23050 operates from a 2.7V to 5.5V input and features internal power MOSFETs that can supply up to 500mA of output current. It can operate with a maximum duty cycle of 90%.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC23050-SYML-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
MIC23050-4YML-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
MIC23050-CYML-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
MIC23050-GYML-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
