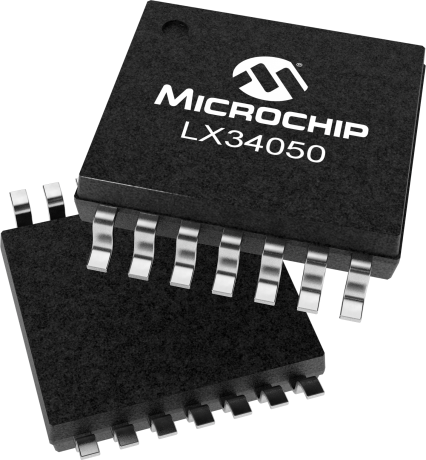

product primary image

High Speed Inductive Position Sensor IC with SIN/COS Outputs

LX34050

Inductive Position Sensor IC

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The LX34050 is a integrated programmable data conversion IC designed for interfacing to and managing printed circuit board (PCB) based inductive position sensors.  Inductive position sensors are ideal replacements for magnet based position and speed sensors (i.e Hall Effect Sensors), optical encoders, and Magnetic resolvers.   They excel with improved accuracy, magnetic noise immunity and don't require a magnet as a target.

The sensor itself is just a PCB, with primary and secondary windings placed to detect the movement of a metal target.     The device includes an integrated oscillator circuit for driving the primary coil of an inductive sensor, along with two independent analog conversion paths for conditioning, converting, and processing of two analog signals from the secondary coils of the sensor. Each path includes an EMI filter, de-modulator,and programmable amplifier.

Great for embedded applications, the LX34050 output interface include  two single ended Sin(x) and Cos(x) signals that change as the metal target is moved over the sensor.    The position of the target is then calculated by using the ratio of these signals.

The propagation delay and bandwidth of the analog paths have been optimized for high speed automotive, industrial and medical sensor applications.      The LX34050 is specified over a temperature range of -40°C to +150°C (Automotive Grade 0) and contains a 32-BIT Cortus APS1 MCU for fault detection and system monitoring.

Get a head start on your design by visiting our Inductive Position Sensor Design Page

The below list of technical documents, software and reference designs are available upon request, for more information, please contact your local Microchip sales representative.

- LX34050 Datasheet

- LX34050 Auto Calibration User Guide

- Magnetic Resolver Replacement Guide: A complete reference design to implement accurate position sensing.

- IPCE Sensor Evaluation and Calibration Software Version (2.x)

Microchip can help with your own sensor design with its own unique mechanical constraints.  You can start with one of our Kits, but Microchip is ready to help you from day one.   Talk with our sales team and describe your sensor requirement.  We will work with you on getting a design up and running to take advantage of this advanced technology.

Additional Features
  • -40°C to 150°C Operation
  • AEC-Q100 Grade 0 Certification
  • ISO26262 ASIL B Support
  • Built-in Oscillator for Driving Primary Coil
  • Two Independent Analog Channels With Demodulation
  • Low Temperature Drift
  • Excellent Long Term Stability
Parametrics
Name
Value
Operating Temperature
-40C to 150C (Grade 0)
ISO26262 Support
ASIL B
Output Interface
SIN/COS
EEPROM Program
VIN, GPIO
Operating Voltage Range
4V to 6V
Max Rated Voltage
20V
Reverse Voltage Rating
-7V
MaxRefreshRate
100kHz

Documents

Jump to:

Software Libraries/Firmware

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
LX3302A 90 Degree Rotary Dual Redundancy Inductive Sensor EVB with Programmer
LX3302A 90 Degree Rotary Dual Redundancy Inductive Sensor EVB with Programmer ( LXK3302ARD001 )

This Kits includes a LXE3302ARD001 Sensor evaluation board, a IPCE programmer, links to our IPCE software, and applicable cables. See our LX3302A and LX3301A Evaluation Kit User Guide how to get started with the KIT.

SENSOR PCB:
The sensor is the first step to using an Inductive Position sensor in your application. Each sensor PCB comes with LX3302A IC and

...

Learn More
Add To Cart
Programmer for Inductive Position Sensor
Programmer for Inductive Position Sensor ( LXM9518 )

IPCE Programmer:
The programmer provides simple interface between the evaluation board and the laptop, together with the Integrated Programming and Calibration Environment (IPCE) GUI, it allows data capturing, measuring and auto calibration of the device. Some key features of the IPCE are
o Simplified Sensor System Calibration and Testing
o Programs EEPROM

...

Learn More
Add To Cart
LX3301A 120 Degree Rotary Inductive Position Sensor EVAL Board with Programmer
LX3301A 120 Degree Rotary Inductive Position Sensor EVAL Board with Programmer ( LXK3301AR001 )

This Kits includes a LXE3301AR001 Sensor evaluation board, an IPCE programmer, links to our IPCE software, and applicable cables. See our LX3302A and LX3301A Evaluation Kit User Guide how to get started with the KIT.

SENSOR PCB:
The sensor is the first step to using an Inductive Position sensor in your application. Each sensor PCB comes with LX3301A IC and

...

Learn More
Add To Cart
LX3301A 100mm Linear Inductive Position Sensor Evaluation Board with Programmer
LX3301A 100mm Linear Inductive Position Sensor Evaluation Board with Programmer ( LXK3301AL003 )

This Kits includes a LXE3301AL003 Sensor evaluation board, a IPCE programmer, links to our IPCE software, and applicable cables. See our LX3302A and LX3301A Evaluation Kit User Guide how to get started with the KIT.

SENSOR PCB:
The sensor is the first step to using an Inductive Position sensor in your application. Each sensor PCB comes with LX3301A IC and

...

Learn More
Add To Cart
LX3302A 90 Degree Rotary Dual Redundancy Inductive Sensor EVB
LX3302A 90 Degree Rotary Dual Redundancy Inductive Sensor EVB ( LXE3302ARD001 )

This LXE3302ARD001 is the first step to using an Inductive Position sensor in your application. Each sensor PCB comes with LX3302A IC and passive components installed, along with a connector and cable for interface to our IPCE programmer. All you need is to power it up to get readings.

Check out our ...

Learn More
Add To Cart
LX3302A 120 Degree Rotary Inductive Position Sensor Evaluation Board
LX3302A 120 Degree Rotary Inductive Position Sensor Evaluation Board ( LXE3302AR001 )

This LXE3302AR001 is the first step to using an Inductive Position sensor in your application. Each sensor PCB comes with LX3302A IC and passive components installed, along with a connector and cable for interface to our IPCE programmer. All you need is to power it up to get readings.

Check out our ...

Learn More
Add To Cart
LX3302A 100mm Linear Inductive Position Sensor Evaluation Board
LX3302A 100mm Linear Inductive Position Sensor Evaluation Board ( LXE3302AL002 )

This LXE3302AL002 is the first step to using an Inductive Position sensor in your application. Each sensor PCB comes with LX3302A IC and passive components installed, along with a connector and cable for interface to our IPCE programmer. All you need is to power it up to get readings.

Check out our ...

Learn More
Add To Cart
LX3301A 120 Degree Rotary Inductive Position Sensor Evaluation Board
LX3301A 120 Degree Rotary Inductive Position Sensor Evaluation Board ( LXE3301AR001 )

This LXE3301AR001 is the first step to using an Inductive Position sensor in your application. Each sensor PCB comes with LX3301A IC and passive components installed, along with a connector and cable for interface to our IPCE programmer. All you need is to power it up to get readings.

Check out our ...

Learn More
Add To Cart
LX3301A 100mm Linear Inductive Position Sensor Evaluation Board
LX3301A 100mm Linear Inductive Position Sensor Evaluation Board ( LXE3301AL003 )

This LXE3301AL003 is the first step to using an Inductive Position sensor in your application. Each sensor PCB comes with LX3301A IC and passive components installed, along with a connector and cable for interface to our IPCE programmer. All you need is to power it up to get readings.

Check out our

...

Learn More
Add To Cart
LX3302A 100mm Linear Inductive Position Sensor Evaluation Board with Programmer
LX3302A 100mm Linear Inductive Position Sensor Evaluation Board with Programmer ( LXK3302AL002 )

This Kits includes a LXE3302AL002 Sensor evaluation board, a IPCE programmer, links to our IPCE software, and applicable cables. See our LX3302A and LX3301A Evaluation Kit User Guide how to get started with the KIT.

SENSOR PCB:
The sensor is the first step to using an Inductive Position sensor in your application. Each sensor PCB comes with LX3302A IC and

...

Learn More
Add To Cart
LX3302A 120 Degree Rotary Inductive Position Sensor EVAL Board with Programmer
LX3302A 120 Degree Rotary Inductive Position Sensor EVAL Board with Programmer ( LXK3302AR001 )

This Kits includes a LXE3302AR001 Sensor evaluation board, a IPCE programmer, links to our IPCE software, and applicable cables. See our LX3302A and LX3301A Evaluation Kit User Guide how to get started with the KIT.

SENSOR PCB:
The sensor is the first step to using an Inductive Position sensor in your application. Each sensor PCB comes with LX3302A IC and

...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LX34050QPW
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
LX34050QPW-TR
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
