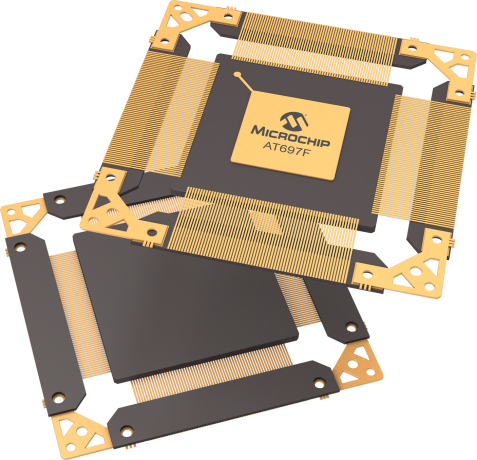

product primary image

AT697F

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

Highly integrated, high-performance 32-bit RISC embedded processor based on the SPARC V8 architecture. Its implementation is based on the European Space Agency LEON2 fault tolerant model. By executing powerful instructions in a single clock cycle, this processor achieves throughputs approaching 1MIPS per MHz, allowing the system designer to optimize power consumption against processing speed.It is designed to be used as a building block in computers for on-board embedded real-time applications. It brings up-to-date functionality and performance for space application. It only requires memory and application specific peripherals to be added to form a complete on-board computer.It has improved radiation capabilities over the AT697, up to 300krads, and corrects all the bugs described in the AT697E errata sheet.

Parametrics
Name
Value
Temp# Range (deg C)
-55 to 125
Single Event Latchup (SEL)
70 MeV/mg/cm2
Total Ionizing Dose (TID)
300 krad
CPU
32-bit LEON
Operating Voltage (Vcc)
3.3 I/O, 1.8 core
Max# Operating Freq# (MHz)
100

Documents

Jump to:

Errata


303KB

Supporting Collateral

Code Examples

Quality-Reliability-ISOs

Development Environment

  • Code Examples

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
5962-0722402QXB
0.000000
0.000000
349
CCGA
25x25x2.96mm
NiAu
e4
AT697F-2H-E
0.000000
0.000000
349
CCGA
25x25x2.96mm
NiAu
e4
AT697F-2H-SV
0.000000
0.000000
349
CCGA
25x25x2.96mm
NiAu
e4
5962-0722402VYC
0.000000
0.000000
256
CQFP
37.1x37.1x2.8mm
NiAu
e4
5962-0722402QYC
0.000000
0.000000
256
CQFP
37.1x37.1x2.8mm
NiAu
e4
GRC-0722402VYC
0.000000
0.000000
256
CQFP
37.1x37.1x2.8mm
NiAu
e4
AT697F-KG-E
0.000000
0.000000
256
CQFP
37.1x37.1x2.8mm
NiAu
e4
5962R0722402VYC
0.000000
0.000000
256
CQFP
37.1x37.1x2.8mm
NiAu
e4
5962-0722401QYC
0.000000
0.000000
256
CQFP
37.1x37.1x2.8mm
NiAu
e4
5962-0722401VYC
0.000000
0.000000
256
CQFP
37.1x37.1x2.8mm
NiAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
