Part Number: ADM00697

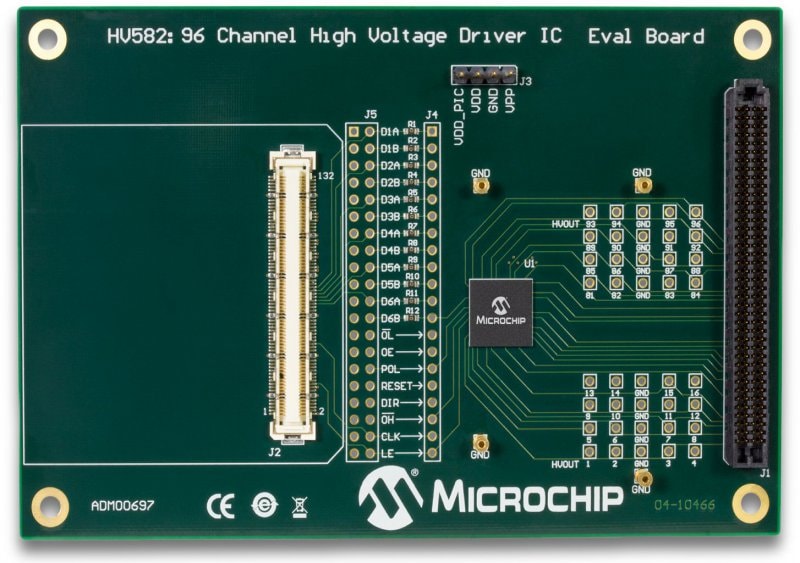

HV582 96-CHANNEL HIGH-VOLTAGE DRIVER IC EVALUATION BOARD
- Compatible with PIC32 Starter Kit DM320001 or a Generic Signal Pattern Generator
- 96 Output Channels available via a High-density Female Array Connector
- 32 Output Channels available via test point pads
Overview
The HV582 96-Channel High-Voltage Driver IC Evaluation Board facilitates the quick implementation for display and printer driver applications with its flexible input/output connection interface. The Evaluation Board is designed around the HV582, a unipolar, 96-channel low-voltage serial to high-voltage parallel converter with push-pull outputs. This device has been designed for applications requiring multiple high-voltage outputs with current sinking and sourcing capabilities. The device consists of six parallel 16-bit shift registers, a 96-bit latch and 96 high-voltage outputs. Data can be input at 30 MHz.
Package Contents
HV582 96-Channel High-Voltage Driver IC Evaluation Board and Important Information Sheet
