Versatile ADCs for a Variety of Speed, Accuracy and Power Consumption Requirements


Delivering high accuracy and low power consumption at a given sampling speed, our broad portfolio of Analog-to-Digital Converters (ADCs) will help you overcome your design challenges. We offer products that support a wide range of resolutions and speeds, while also providing an assortment of features and package types to meet the specific requirements of your application. Low power consumption and superior performance make our ADCs an excellent choice for use in portable, battery-powered applications and data acquisition devices. We offer superior customer support, from concept to production, to streamline your development and lower your design risk.

Highlights

  • High accuracy for precise applications
  • Low-power operation for battery-powered portable applications
  • Small packaging to save space and cost
  • Simplify system design with Microchip support available throughout development process

Are You Working on an Automotive Application?


The high-accuracy and low-noise performance of our AEC-Q100-qualified ADCs make them excellent choices for automotive designs.

Reference Designs


Title Part Number
Devices Supported
MCP3421 Weight Scale MCP3421DM-WS MCP3421, MCP6V07
MCP3421 Battery Fuel Gauge MCP3421DM-BFG MCP3421, MCP3422, MCP1702, PIC18F4550
MCP355X Tiny Application Sensor MCP355XDM-TAS MCP3550, MCP3551, MCP3553
RTD Temp Sensor TMPSNS-RTD1 MCP3301, MCP41010, MCP6S26, PIC18F2550
RTD Reference Design Board TMPSNSRD-RTD2 MCP3551, MCP9804

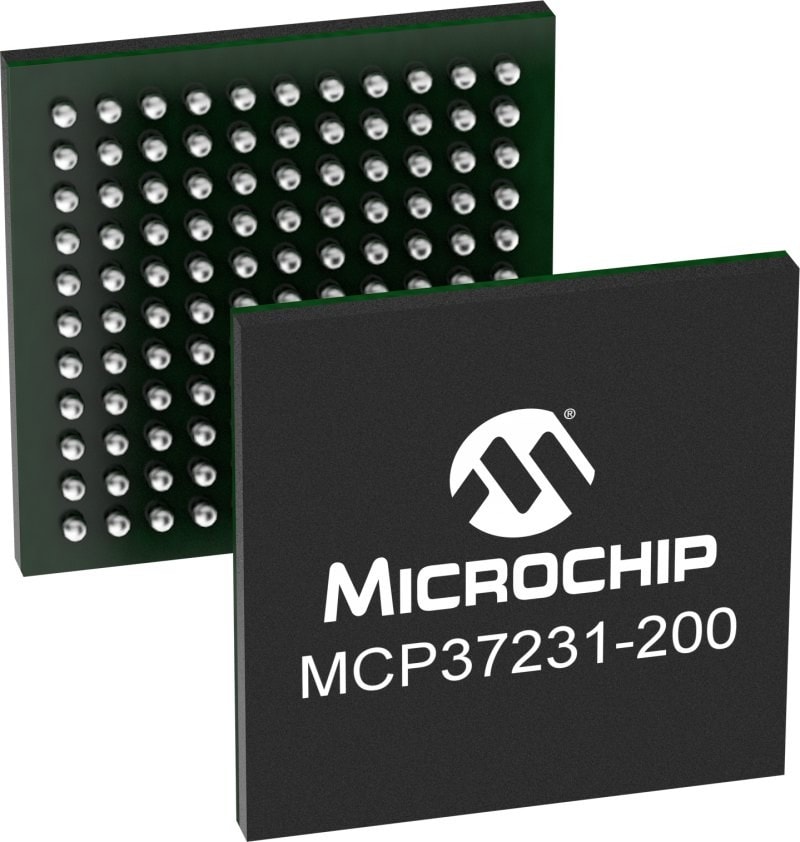

MCP37XXX Evaluation Kit Demonstration_MASTERS 2014

A brief introduction of Microchip’s latest 200 MSPS high speed ADC demo kit. The demo kit demonstrates the ADC performance and built-in digital signal processing features using the Pipeline ADC Utility software (PC GUI). The software communicates with the ADC device on board the MCP37xxx Evaluation Board (ADM00505) through the MCP37xxx Data Capture Card (ADM00506), allowing the user to configure the operating parameters of the MCP37xxx device. The software will then analyze the data, perform an FFT or other analyses, and display the results. The MCP37xxx device family has many unique built-in features that are rarely available on the competition devices in the industry, and can make the RF data collection system design easier in the sophisticated Radar, Sonar, GPS, cellular base station, and telecommunication applications.
