Part Number: MCP1630RD-DDBK3

MCP1630V BIDIRECTIONAL 4 CELL LI-ION CHARGER REF DESIGN

User Guide: PDF
MCP1630V Bidirectional 4 Cell Li-Ion Charger Ref Design User's Guide

Overview

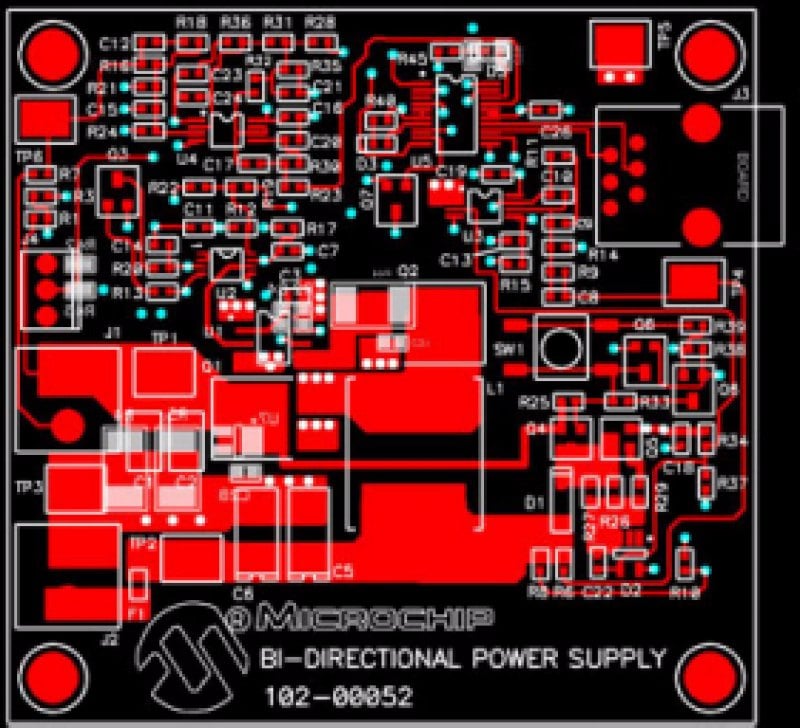

The MCP1630V Bi-directional 4 Cell Li-Ion Charger Reference Design demonstrates the use of a bidirectional buck-boost converter used to charge multiple series cell Li-Ion batteries with the presence of an input source (boost) and provide a regulated output voltage when the input source is removed (buck). The board also serves as a platform to evaluate the MCP1630V device.

  • Four Cell Li-Ion Battery Charger operates stand-alone. (Additional firmware added allows the charger to communicate with smart battery packs)
  • Charges four cell Li-Ion battery pack from 6.5V to 7.0V Input (complete precondition, constant current and constant voltage charge algorithm in firmware)
  • Regulates input dc bus voltage, (steps battery pack voltage down), to 6.0V when input source is removed (providing uninterrupted power source for system)
  • ON/OFF button used to enable and disable system, low IQ drain on the battery when disabled (< 10 µA)
  • Output over-voltage protection in the event of open battery connections
  • High efficiency over entire operating input voltage range (94% typical)
  • PIC16F88 is used to generate ref Voltage and Oscillator signal at 500 kHz frequency at maximum duty cycle
  • Proprietary features can be added by modifying the firmware contained in the PIC16F88
  • Factory programmed source code is available
The MCP1630V Bi-directional 4 Cell Li-Ion Charger Reference Design demonstrates the use of a bidirectional buck-boost converter used to charge multiple series cell Li-Ion batteries with the presence of an input source (boost) and provide a regulated output voltage when the input source is removed (buck). The board also serves as a platform to evaluate the MCP1630V device.

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
MCP1630/MCP1630V Data Sheet Data Sheets Download
MCP1630V Bidirectional 4 Cell Li-Ion Charger Ref Design Gerbers Board Design Files Download
MCP1630V Bidirectional 4 Cell Li-Ion Charger Ref Design Firmware Software Libraries and Firmware Download
MCP1630V Bidirectional 4 Cell Li-Ion Charger Ref Design User's Guide User Guide Download
