Part Number: AC300024

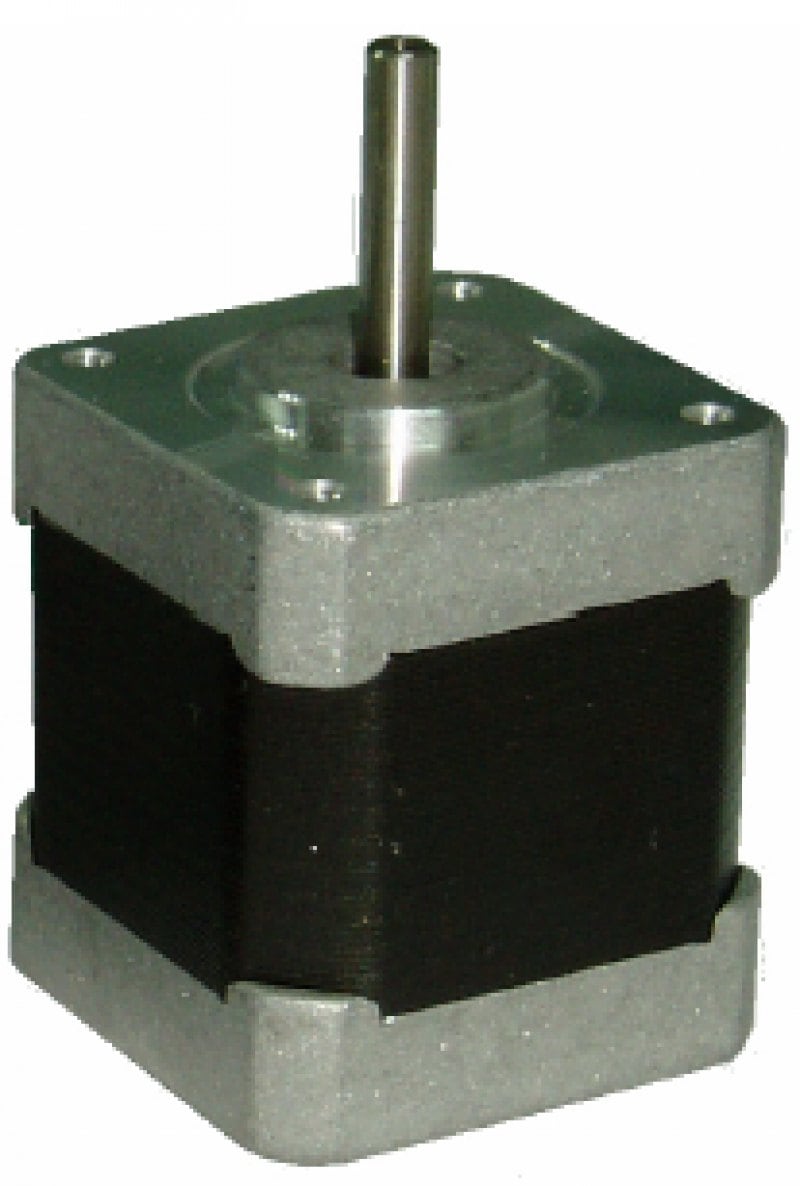

AC300024 - STEPPER MOTOR
- Step angle of 1.8°
- Step angle accuracy of +/-5%
- Temperature rise of 80°C (maximum)
- Rated for -10°C to +50°C operation
- Motor length is 1.89" (48mm)
- Holding torque is 66.55Nm (bipolar) and 48.14Nm (unipolar)
- Phase Current is 1.4A (bipolar parallel), 0.7A (bipolar series) and 1.0A (unipolar)
- Rotor Inertia is 0.001164 Oz/sec2 (82 g/cm)
- Detent Torque is 2.84Oz/in (204 g/cm)
- Weight is 11.99Oz (0.34kG)
Overview
This Leadshine model 42HS03 stepper motor can be used with the PICDEM MCSM development board (DM330022 and DM330022-1). Featuring 8 leads, it can be configured for unipolar or bipolar operation and has a step angle of 1.8°.
